50 Ton Ironworker versatile tool for all kinds of tasks. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a dedicated Coper Notcher station.
Build to order: approx. 2-3 week lead time
Compact and Versatile
- Four Available Workstations
- Punch Assembly Designed for Optional Tooling
- Dedicated Coper Notcher Station
- Electric Stroke Control
- ANSI B11.5-1988R(02) Compliant
- ETL/UL Approved Controls

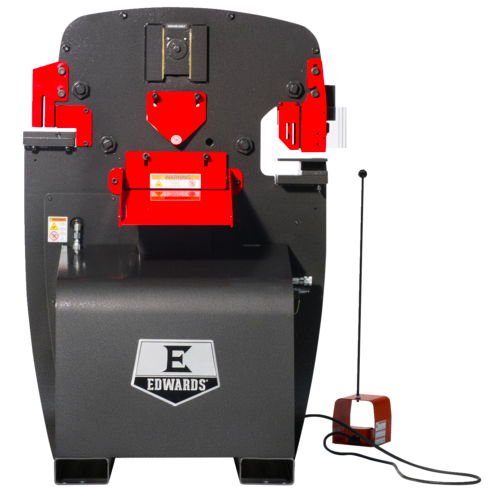

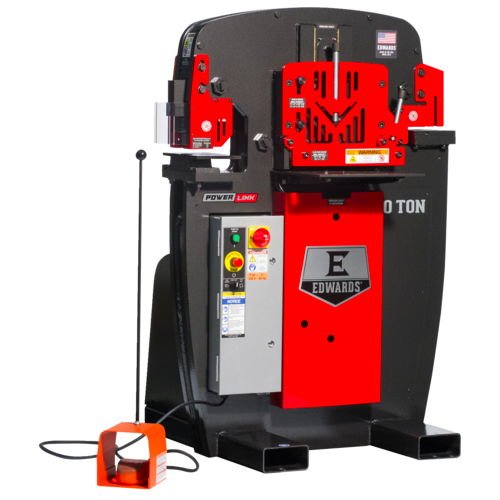

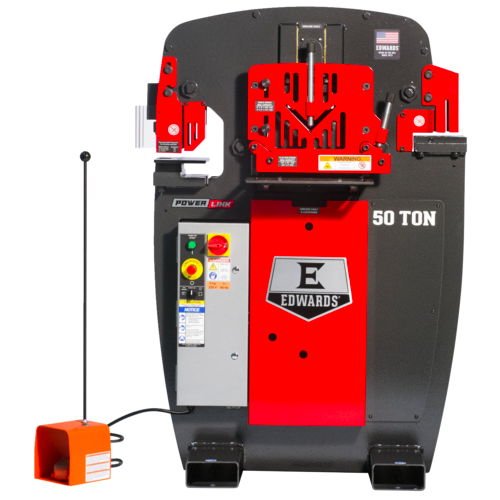

The Edwards 50 Ton Ironworker is ideal for the small shop that needs a powerful, versatile tool for all kinds of tasks. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a dedicated Coper Notcher station. The Punch Assembly quickly converts to an open tooling station designed to accept optional Tooling Accessories.
The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press
PUNCH
- Rating 50 Tons
- Max. Capacity 1" Dia. in 5/8" A36
- (65,000 PSI Tensile)
- Stroke 1-7/8"
- Throat Depth 7"
- Open Height 8-1/8"
- Shut Height 6-1/4"
- Work Height 36-9/16"
FLAT BAR SHEAR
- Max. Capacity 1/2" x 10"
- 3/4" x 4"
- Max. Round 3/4"
- Max. Square 3/4"
- Work Height 34-1/2"
ANGLE SHEAR
- Max. Capacity 3" x 3" x 3/8"
- 4" x 4" x 1/4"
- Work Height 39-7/8"
COPER NOTCHER
- Max. Capacity 2" x 3" x 5/16"
- Work Height 39-1/2"
GENERAL SPECIFICATIONS
- Standard Motor 5 HP 3~ 208 V or 230 V
- 1725 RPM 14 A
- Optional Motors 5 HP 3~ 460 V
- 1725 RPM 7 A
- 5 HP 3~ 575 V
- 1725 RPM 6 A
- 5 HP 1~ 230 V
- 1725 RPM 23 A
- Hydraulic Pump 3-1/2 GPM - 1 Stage
- Valve Pressure 2500 PSI
- Reservoir 7 Gallons
- Cylinder 2-1/2" Ram
DIMENSIONS
- Height 54-1/2"
- Width 36-3/4"
- Depth 36-1/8"
- Shipping Weight 2020 lb
