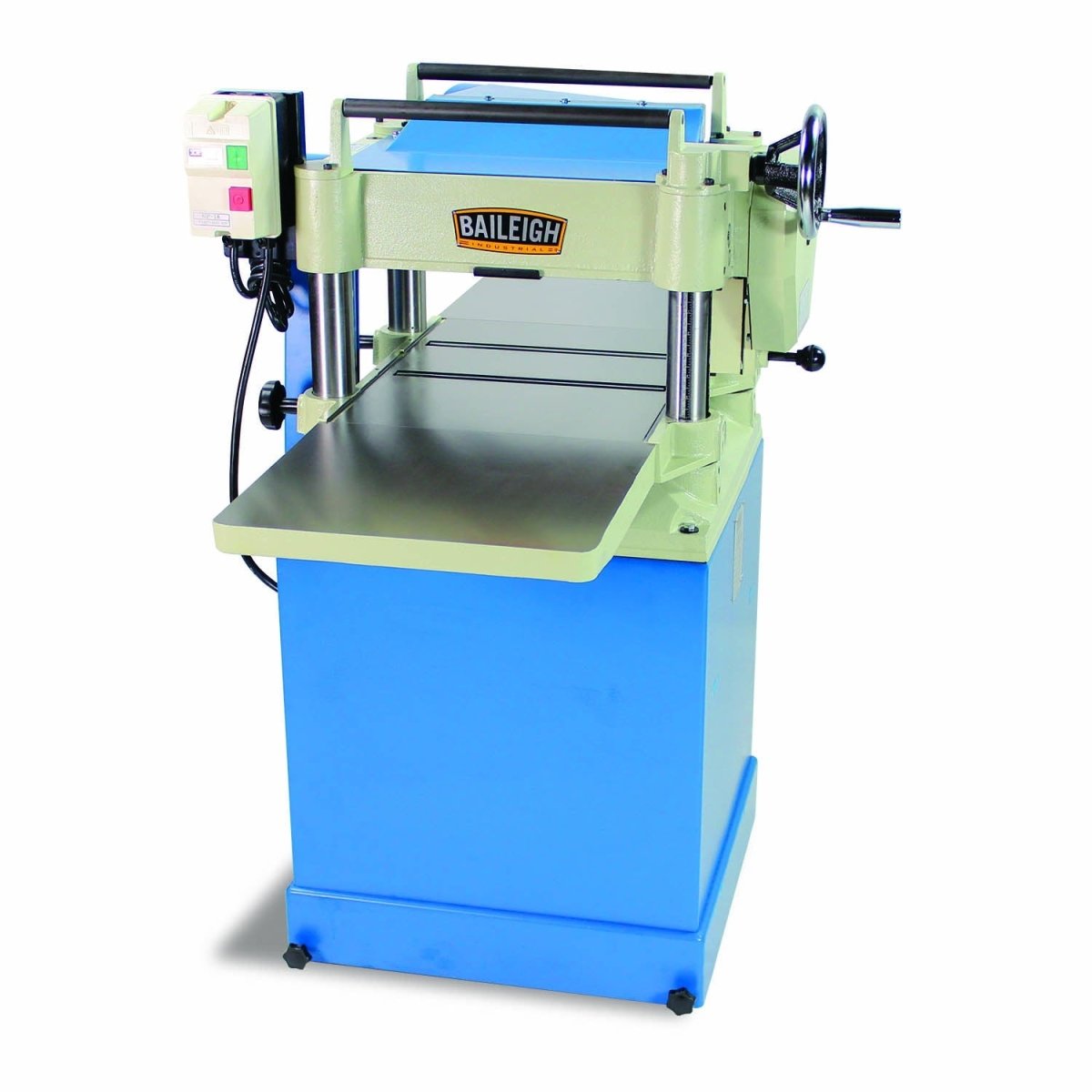

Industrial Planer IP-156

Even our most economical planer offers 2 speeds, a large cast iron table, and the best safety features. Built to last, this 15”-wide planer is perfect for hobbyists and shops on a budget.

• Robust 3 hp motor turns the cutter head at 5,000 rpm.
• Straight 3-knife cutter head comes standard.
• 6” maximum cutting height.
• Up to ⅛” cut depth.
• Runs on 220-volt single-phase power. You can use this planer almost anywhere.

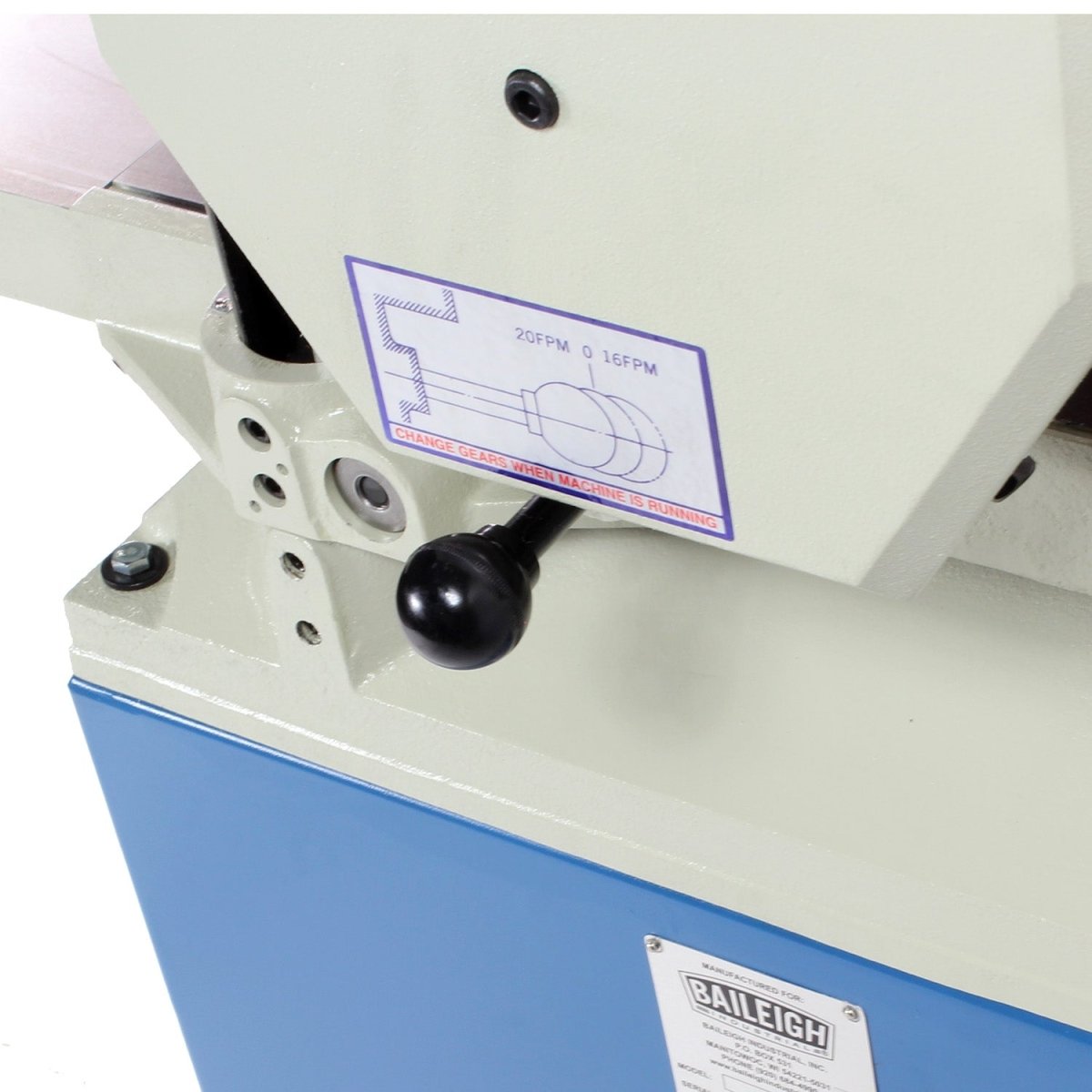

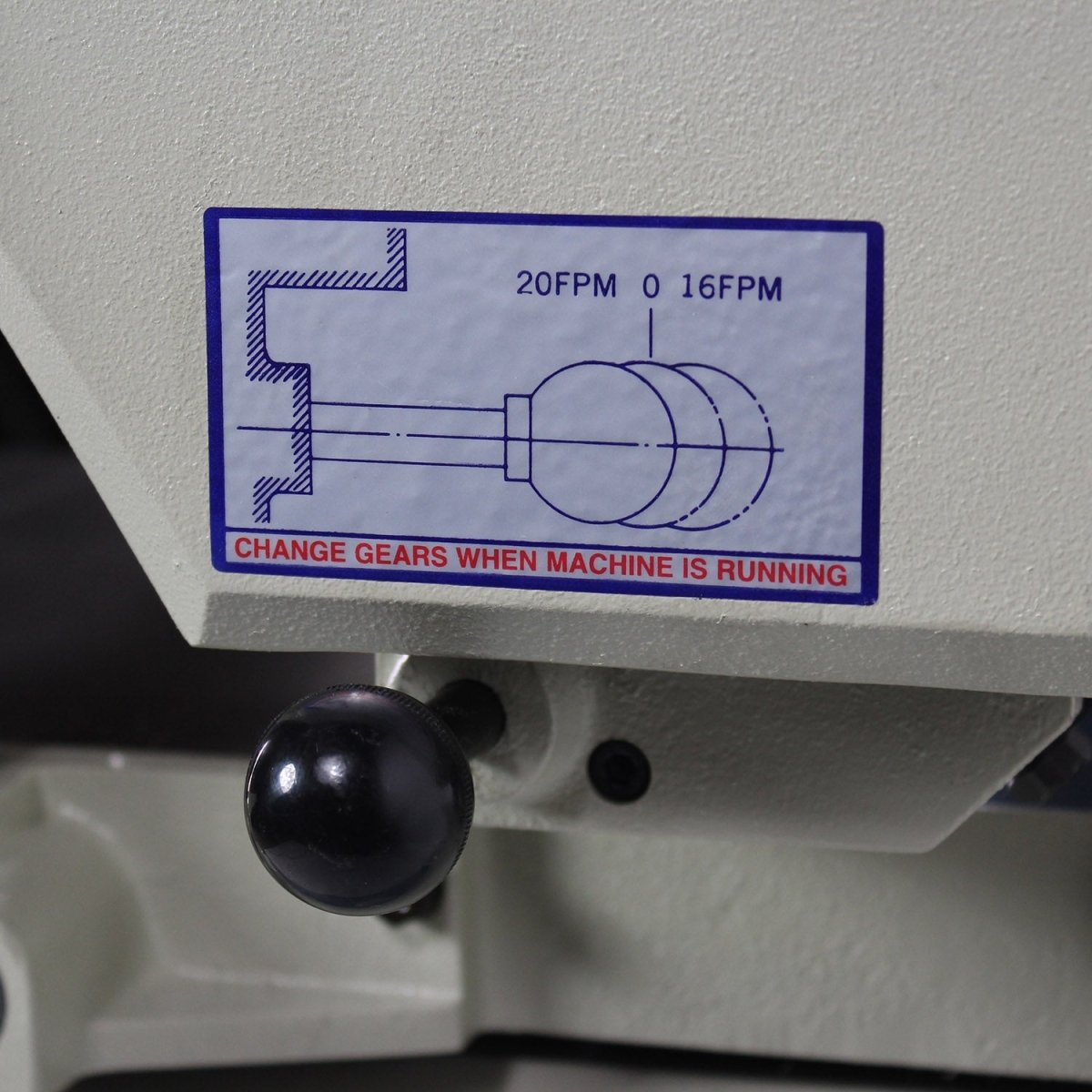

• Switch between 2 infeed speeds:
  • 20 feet per minute to remove a lot of material quickly.
  • 16 feet per minute to give you a smoother finish (or to handle harder or chip-prone material more cautiously).
• 15” x 20” main table includes front and back cast iron wing extensions that can expand to 15” x 48”.
• Large table keeps the board flat and straight for dependably true cuts.
• Anti-kickback fingers help prevent accidents by gripping a piece of wood if it jams the machine.

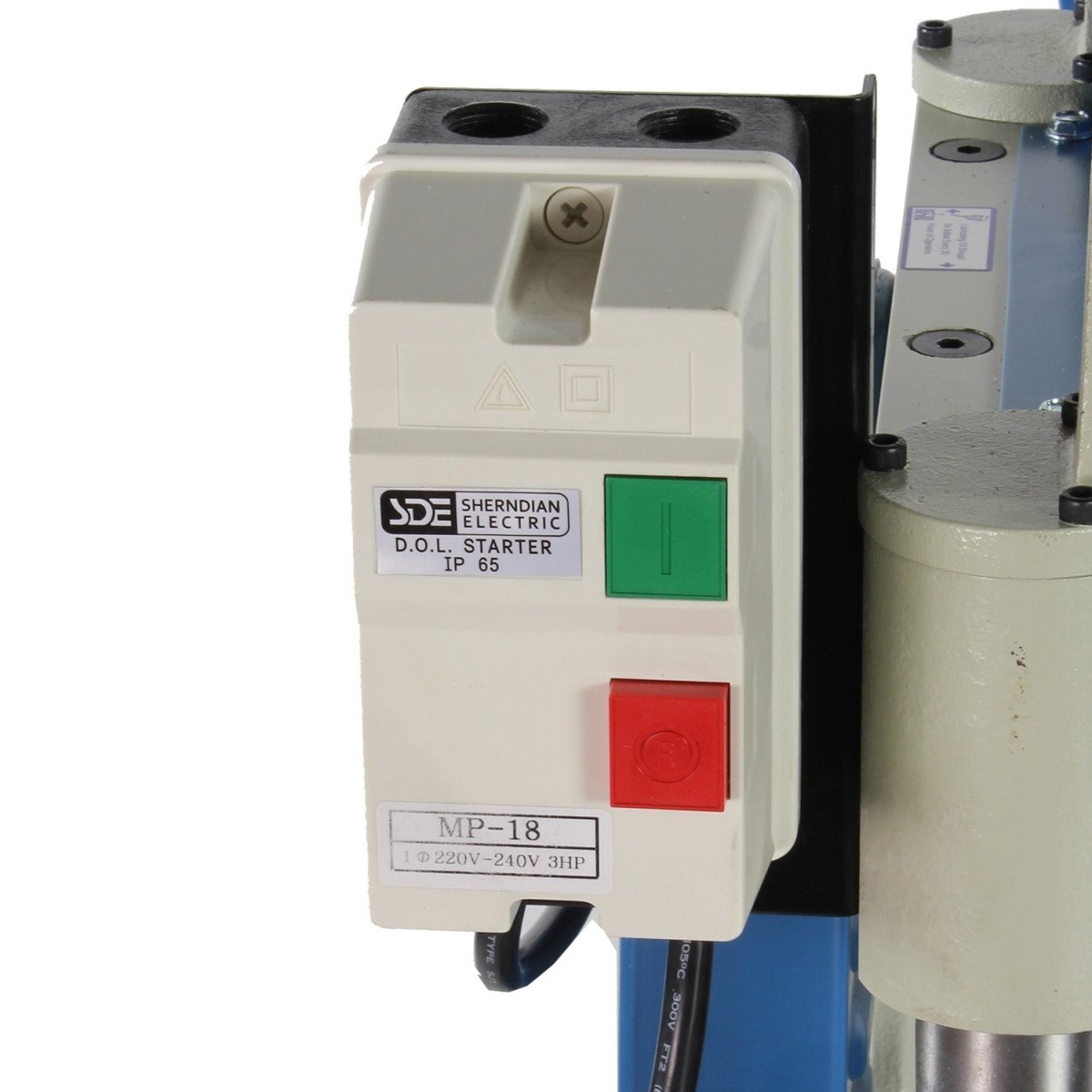

• Magnetic starter switch automatically shuts down the planer if there’s a problem with current, like a power surge.
• Fully-enclosed steel stand reduces vibrations and maintains accuracy over many years of daily use.
• Integrated wheels on the base allow you to move the planer easily.

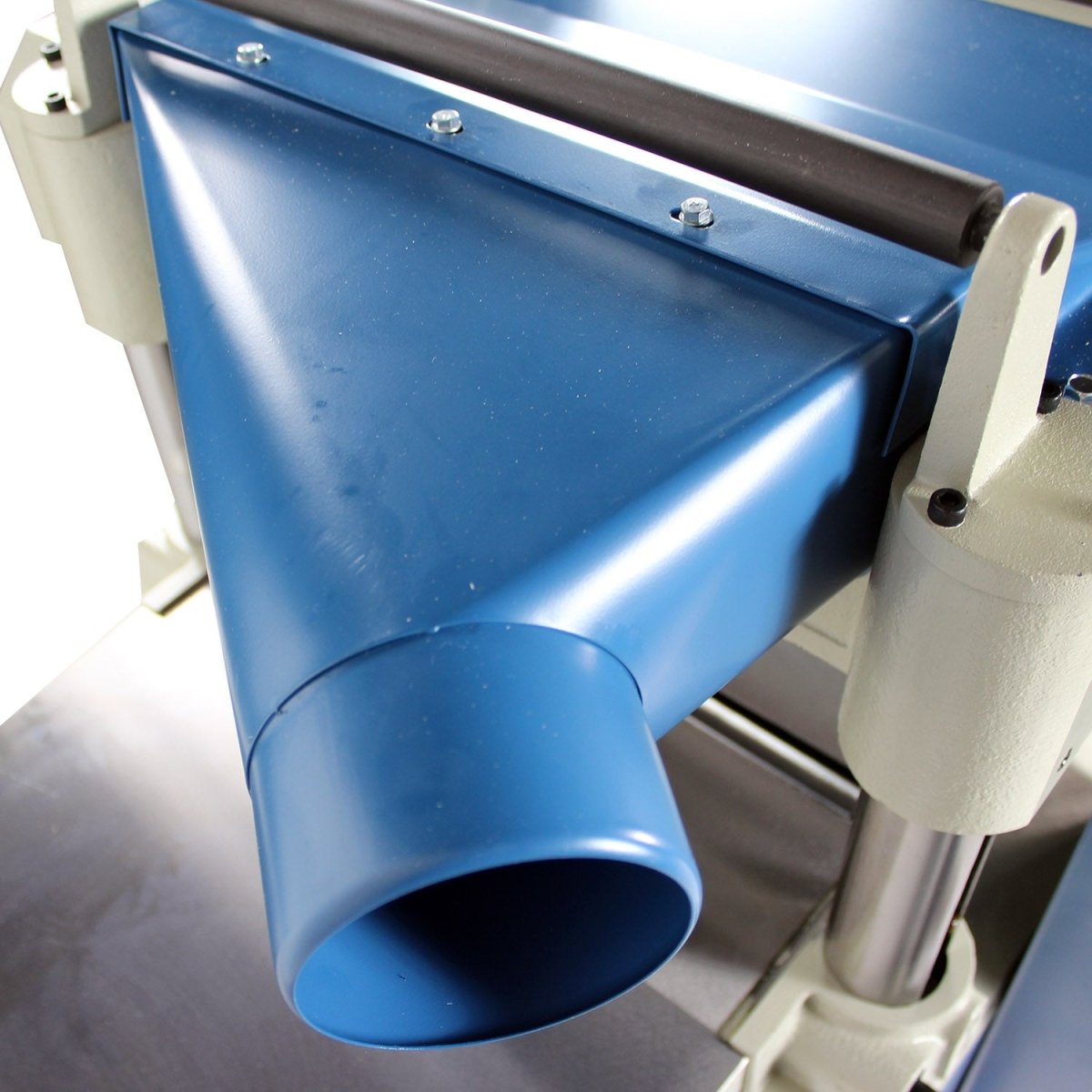

• 4” dust port can hook up to your dust collection system so your shop stays neat and clean.
• Covered by a 1-year parts warranty.
• We stock replacement parts, so we can get them to you quickly.

Item Number	IP-156
Shipping Weight	600lbs
Table Size (Length)	48"
Table Size (Width)	15"
RPM	5000
Maximum Depth of Cut (Resaw)	1/8"
Cutter Head Diameter	3"
Max Stock Width	15'
Number of Knives	3
Maximum Stock Height	6"
Minimum Stock Thickness	3/16"
Minimum Stock Length	6"
Feed Speed	16/20 FPM

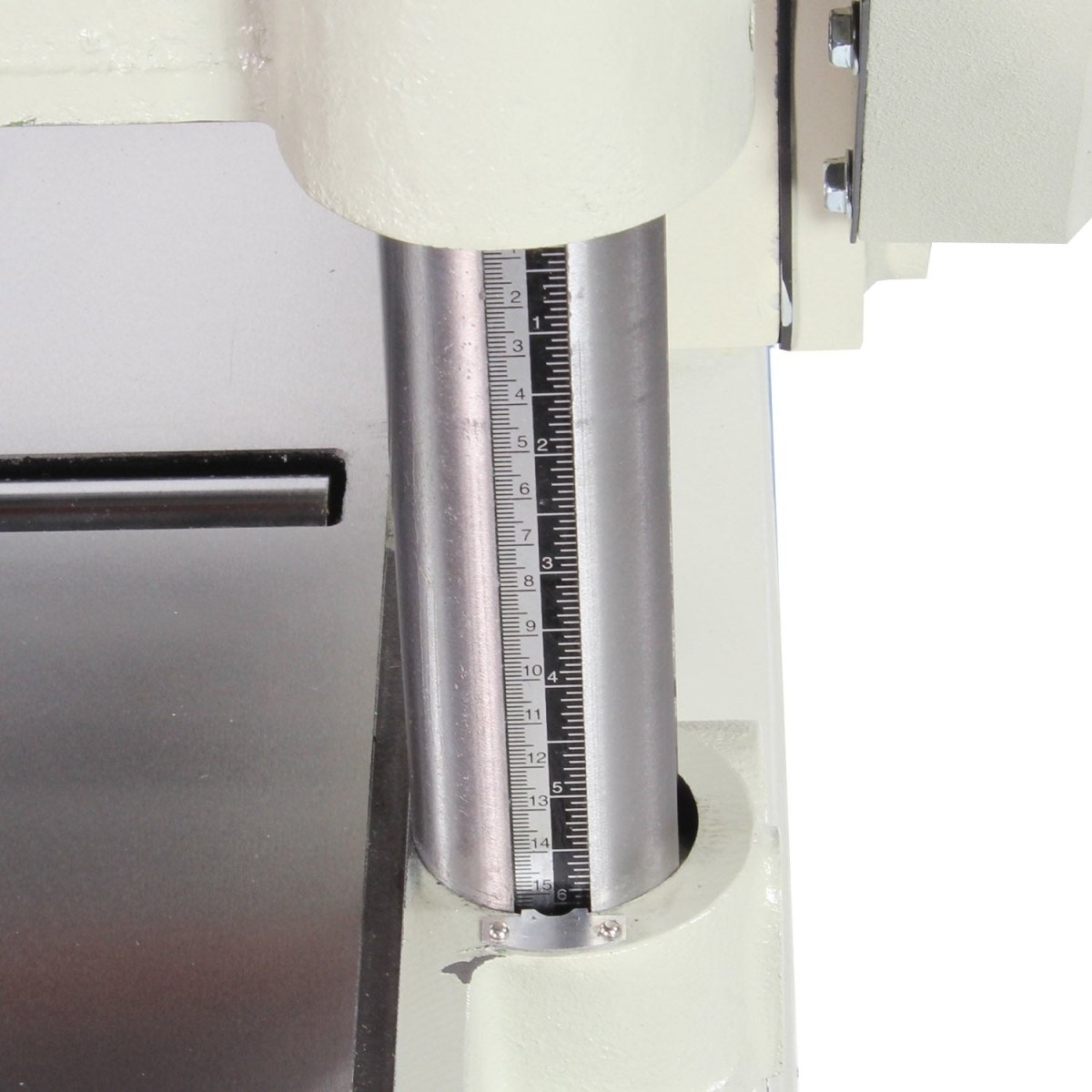

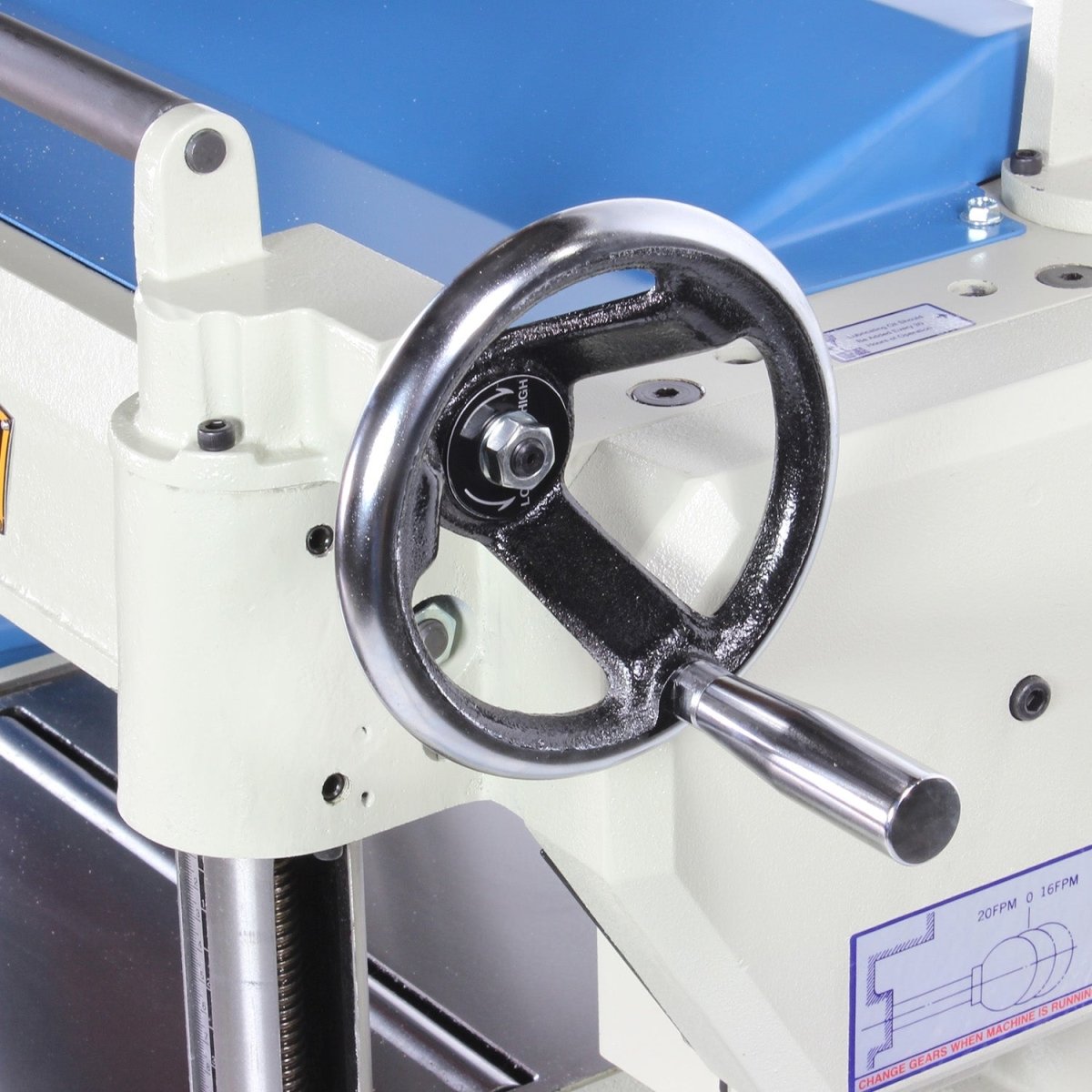

Table Elevation	Manual
Power	220V Single Phase
Horse Power	3
Weight (lbs)	520
Shipping Dimensions (Inches)	60x44x52

* specifications subject to change without notice.
