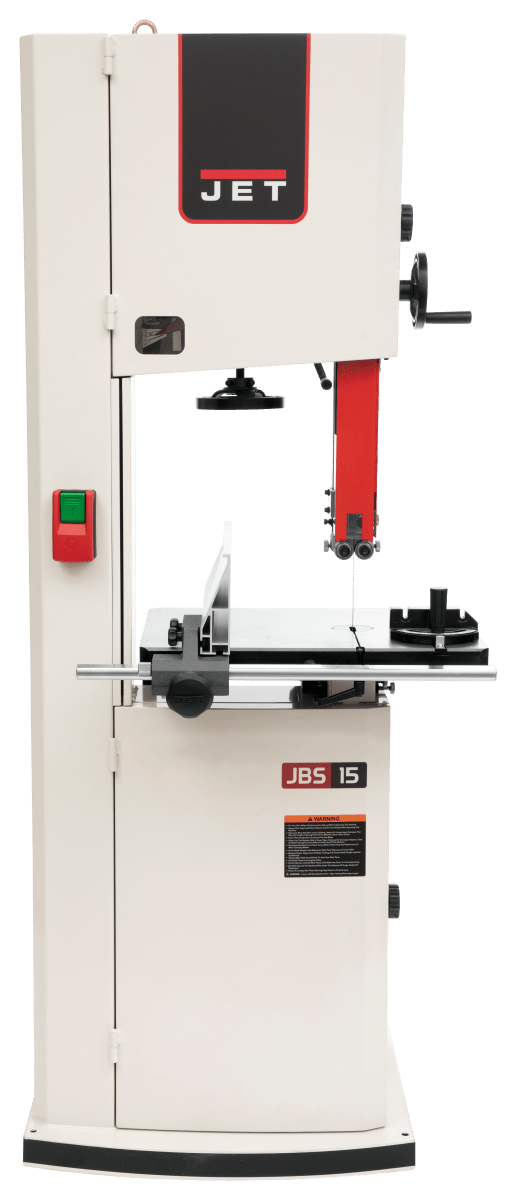

JET 15in 1.75HP Bandsaw w/Cast Iron Fence System
SKU: JT9-714600
Designed to perform, the JET 15” bandsaw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts.
The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted to allow for front blade removal and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 15” steel frame bandsaw is engineered to build great projects through superior performance.
Features
-
Blade tracking window provides clear view of blade during tracking
-
Cast iron handwheels and ergonomic-designed knobs make adjustments smooth and easy
-
Cast iron trunnion for maximum support and stability
-
Conveniently located dual 4" dust collection ports catch dust and chips at the source
- Easy-to-read blade tension scale can be viewed through
-
upper door window
-
Heavy duty tensioning with quick release and three settings: full tension, partial tension, and full release
-
Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
-
Round table insert features leveling screws for precise adjustment
-
Single knob adjustment simplifies the blade tracking process
-
Table tilts 5° left and 45° right to accommodate a wide variety of cuts
Specifications
| Stock Number | 714600 |
|---|---|
| Band Saw Size/Wheel Diameter (In.) | 14-3/4 |
| Blade Speed (SFPM) | 3100 |
| Cutting Capacity Height (In.) | 14 |
| Dust Collection Minimum CFM Required (CFM) | 400 |
| Minimum Saw Blade Width (In.) | 1/8 |
| Motor Amps | 15/7.5 |
| Motor Power (HP) | 1-3/4 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) | 20 |
| Table Height from Floor (In.) | 35 |
| Table Size (L x W) (In.) | 21-1/2 x 16 x 2 |
