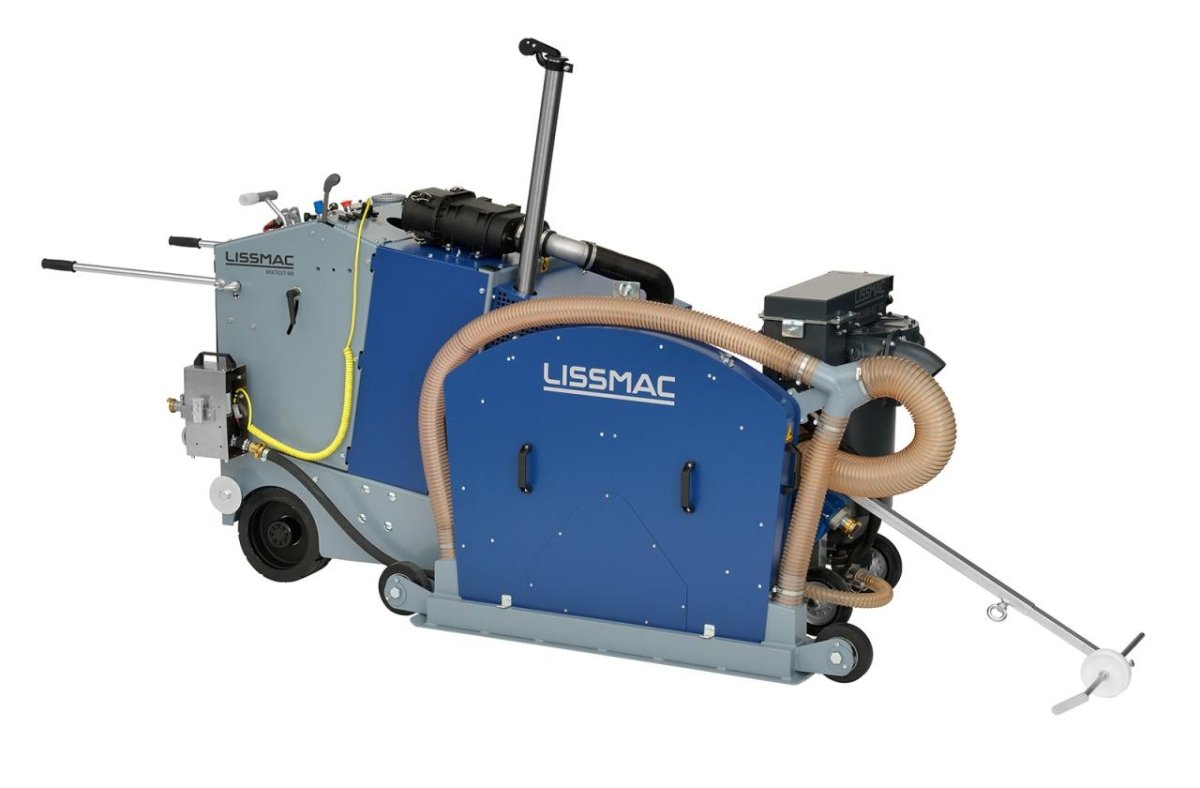

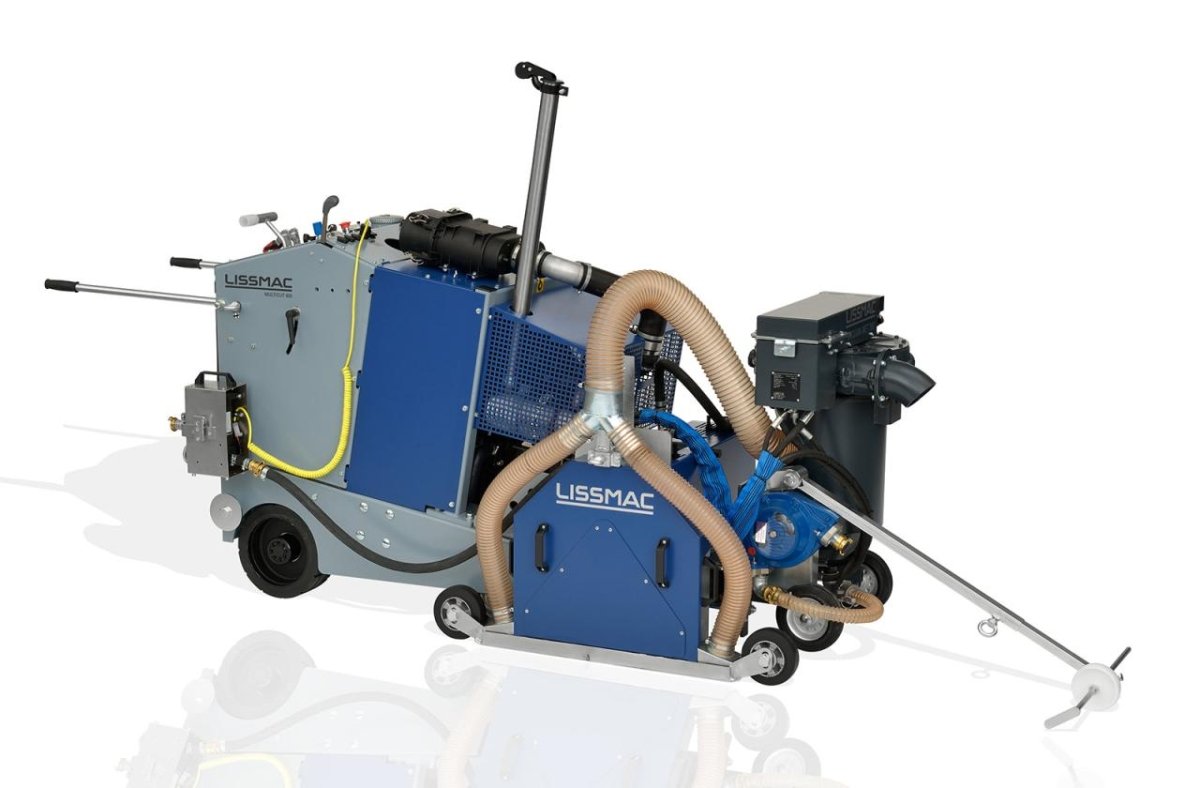

Lissmac Multicut 605 Concrete Walk Behind Saw
SKU: Multicut 605
A Price-Performance Champion That Scores In Practice Every Day. Powerful Cutting Performance, Ergonomically Sophisticated Operation And The Robust Construction Are Convincing In The Long Term.
The MULTICUT 605 diesel joint cutter with shearing technology impresses with its excellent price-performance ratio, robust technology and simple operation. It has a gearbox with speeds of 950, 1,620 and 2450 rpm as well as left / right rotation and neutral position.
This transfers the power of the 55 kW / 74.8 PS Hatz 4-cylinder engine very efficiently to saw blades up to 47 in size. The maximum cutting depth is 515 mm (20 inches).
The diesel floor saw is created for demanding applications in road construction as well as for renovation, demolition and repair work. Its powerful, sensitively controllable hydrostatic drive is maintenance-free and ensures an even feed rate when cutting joints in asphalt and concrete, cutting fresh concrete and making separating cuts. High-performance V-belts ensure optimal power transmission from the smooth-running, high-torque diesel engine.
The compact design of the diesel floor saw and its balanced chassis allow easy manoeuvring on the construction site. Height-adjustable handles support the effortless operation of the floor saw. The low centre of gravity and the adjustable rear axle ensure an exact saw cut and a particularly precise straight cut at all times. Saw blade raising and lowering is electro-hydraulically controlled. This improves the ease of use and protects the valuable cutting tool. Further practical features are the very quick conversion from left to right cut and the unobstructed access for common maintenance tasks. The diesel joint cutter saves on purchase and maintenance but does not skimp on powerful performance and first-class quality. Discover the numerous useful details of the MULTICUT 605:
FURTHER INFORMATION
- Powerful floor saw with scissor technology

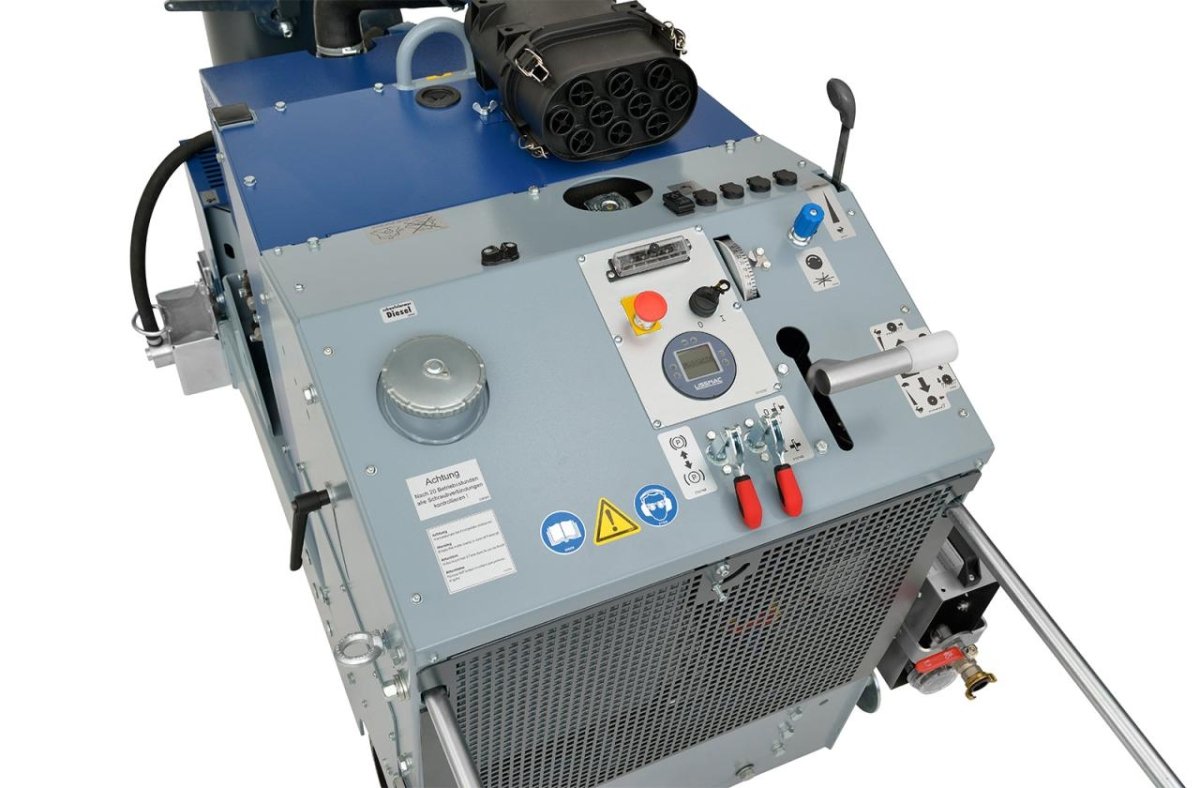

- Simple arrangement of the operating elements and a compact multifunctional display facilitate the easy to learn and intuitive operation
- Drive via Hydrostat guarantees a smooth and controlled operation of the machine
- Optimum power transfer with high performance V-belts
- 3 spee gearbox with clockwise/counter-clockwise rotation and neutral position
- Warp-resistant sheet frame construction
- The compact design and balanced chassis permit easy manoeuvring around the construction site
- The low centre of gravity ensures a precise saw cut
- Very good straight cut thanks to the adjustable rear axle
- Same track of the wheels- large- dimensioned wheels
- Lifting and lowering of the saw blade is controlled electro-hydraulically

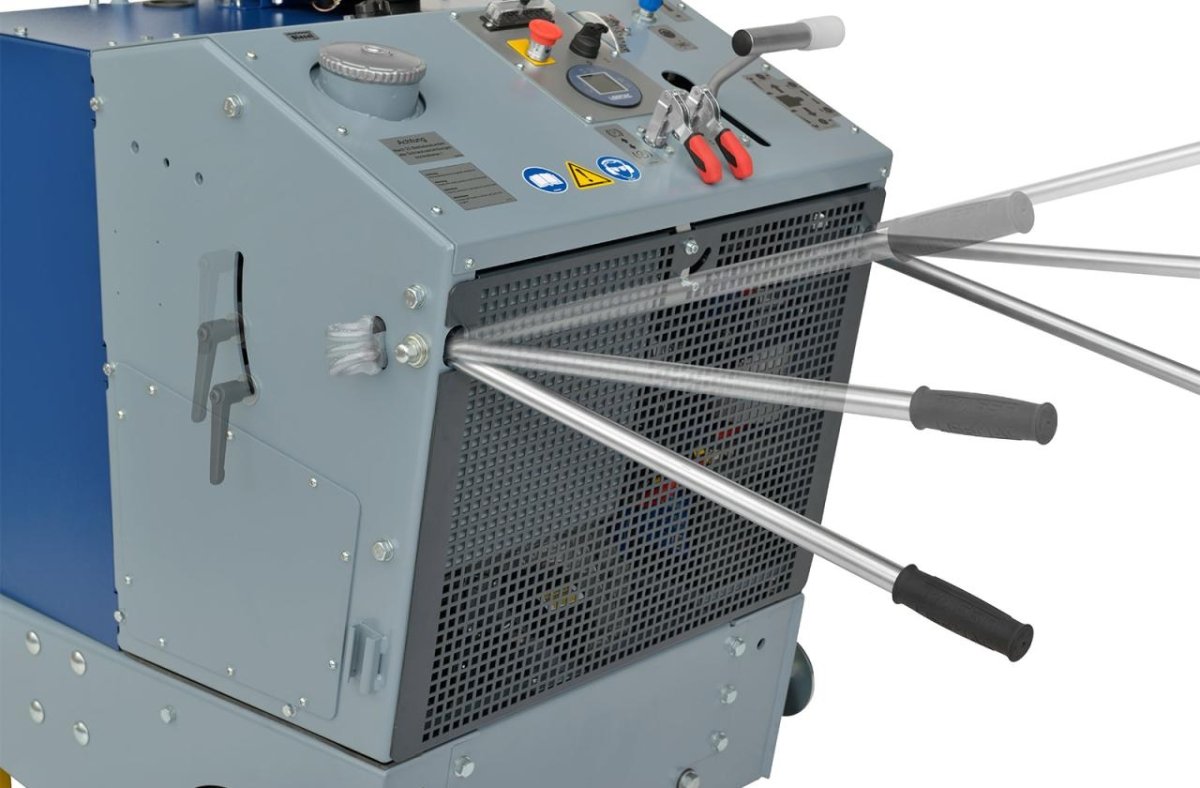

- Height adjustable handles allow for ergonomic operation
- Rapid changeover from left to right-hand cutting
- Flange spraying system

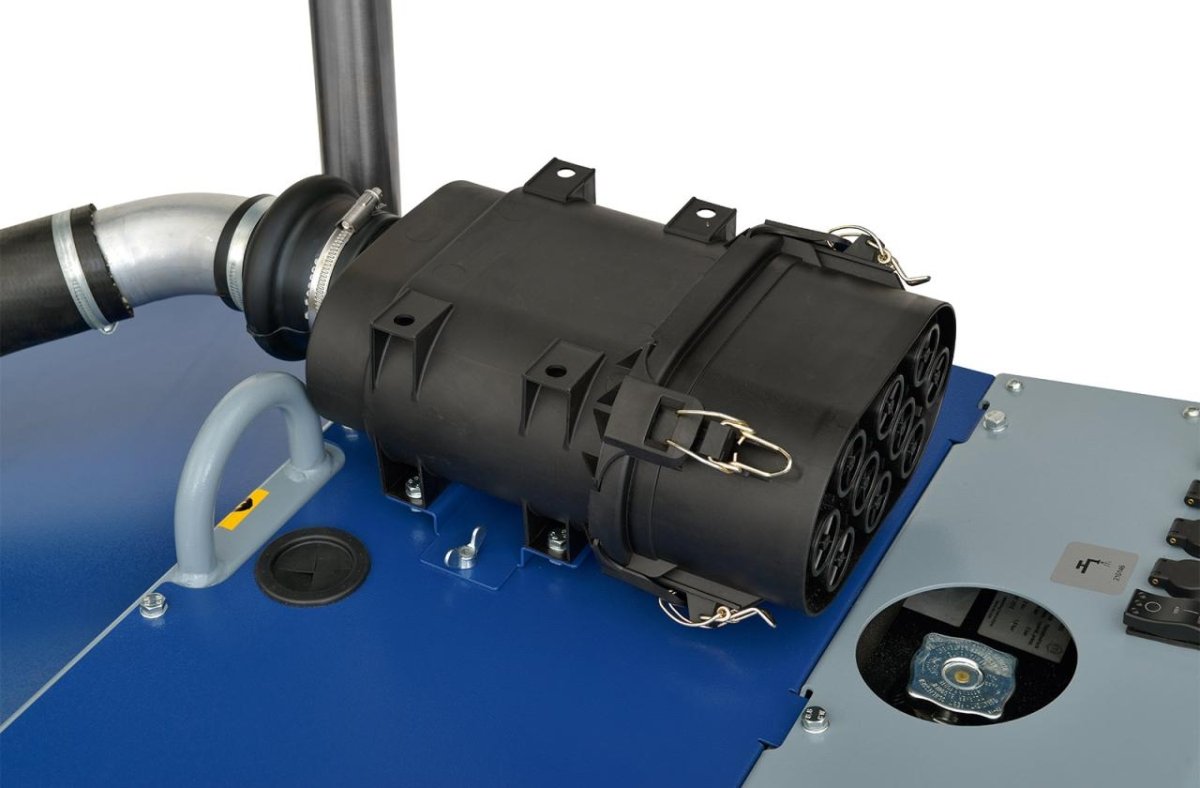

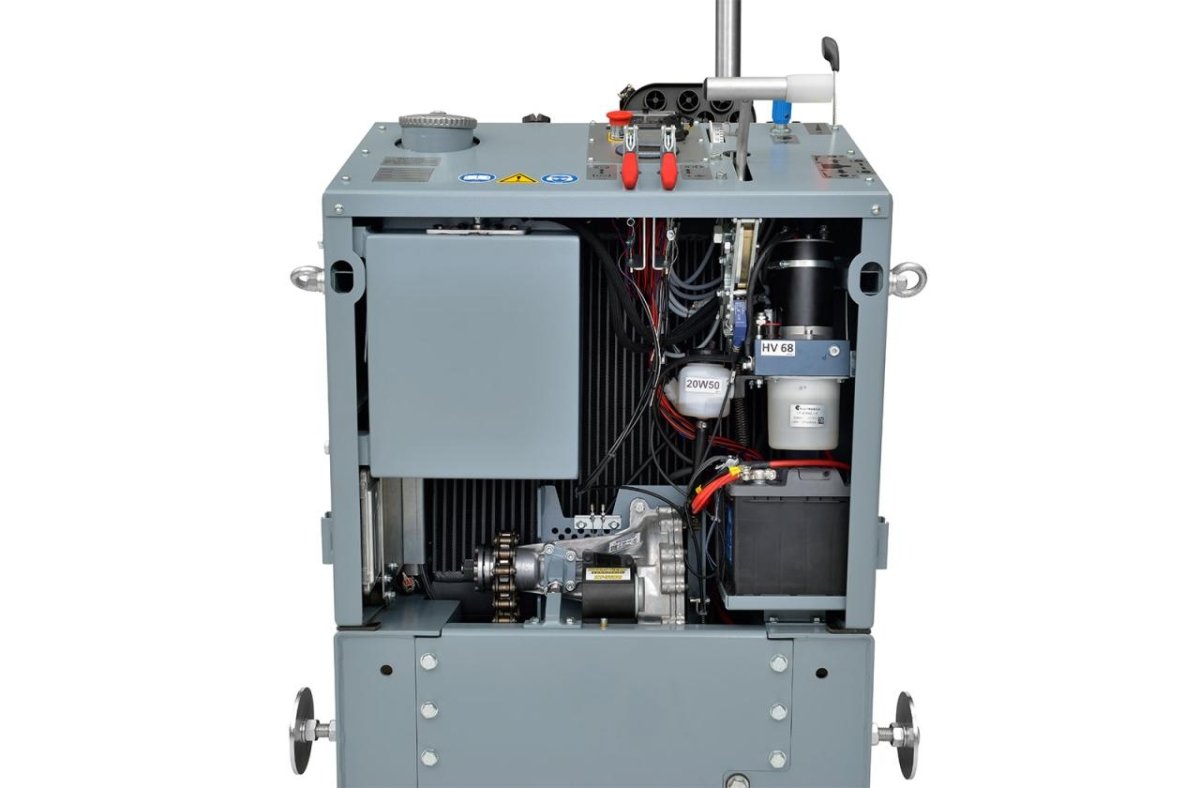

- Easy access for prevalent maintenances (air filter, battery, oil filter, fuel filter) due to the perfect drive unit position
- Parking brake, working hour counter and neutral (free-wheeling) mode come as a standard feature
