Manual Tilter 150 | Custom Lifting and Handling Equipment that is made to order

Tilter

Full Specifications

Stock#	Model#	Description	Load Capacity	Power	MSRP Price
97480	MT1HV11DC	Mobile, battery powered lifter.	150 lbs [70 kg]	DC	$2,667.76
MT1HV11AIRS	MT1HV11AIRS	SPECIAL ORDER: Lifter powered by compressed air supply.	150 lbs [70 kg]	Air	$2,528.87
MT1HV11ACS	MT1HV11ACS	SPECIAL ORDER: Lifter powered by corded, AC outlet.	150 lbs [70 kg]	AC	$2,528.87

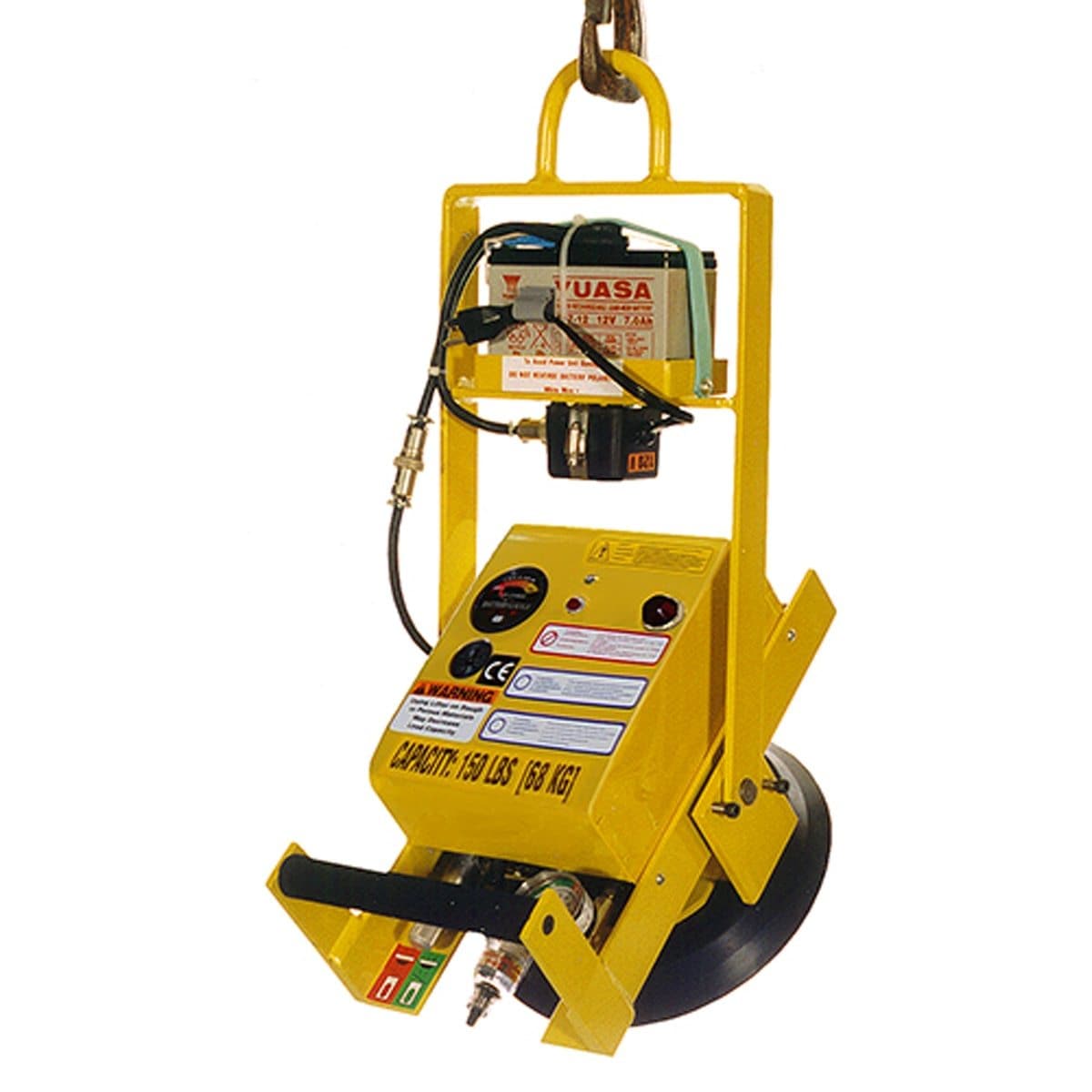

With a single vacuum pad for quick attachment and release, this Powr-Grip® vacuum lifter enables ergonomic handling of heavy loads by a single person.

Standard Pad Spread:
11" x 11" [28 x 28 cm]

Standard Vacuum Pad:
10" [25 cm] dia. lipped pad

Maximum Load Capacity:
150 lbs [70 kg]

Weight of Lifter:
45 lbs [21 kg]

Standard Operating Power:
12 volts DC, 10 amps (Other voltages available)

Apply / Release Times:
2 seconds / 3 seconds (approx)

Load Movement:
Manual tilt, 90° between upright and flat

Standard Features:
On-board battery and charger
Battery energy gauge
Low vacuum warning light
Low vacuum warning buzzer
Vacuum gauge
Vacuum line filter
Vacuum reserve tank

Alternative Power Systems:
AC power system (MT1HV11ACS)
Air (venturi) power system (MT1HV11AIRS)
(Specifications may not be as listed above. Please contact us for more information.)

Load Capacity	150 lbs [70 kg]
Per-Pad Capacity	150 lbs [70 kg]
Pad Model	HV11
DC Power	Standard
DC Volts	12 VDC
DC Amps	10
Charger Voltage	100/120/240
Charger Hertz	50/60
Charger Phase	1
Apply Time (DC)	3 seconds
Release Time (DC)	2 seconds
Weight (DC)	45 lbs [21 kg]
Manipulation	Continuous
Tilt	90°
Tilt Power	Manual
Max Pad Spread (L)	11" [28 cm]
Min Pad Spread (L)	11" [28 cm]
Max Pad Spread (W)	11" [28 cm]
Min Pad Spread (W)	11" [28 cm]
Max Height	26.5"
Min Ambient Temp	32° F
Min Load Temp	32° F
Max Ambient Temp	100° F
Max Load Temp	100° F
