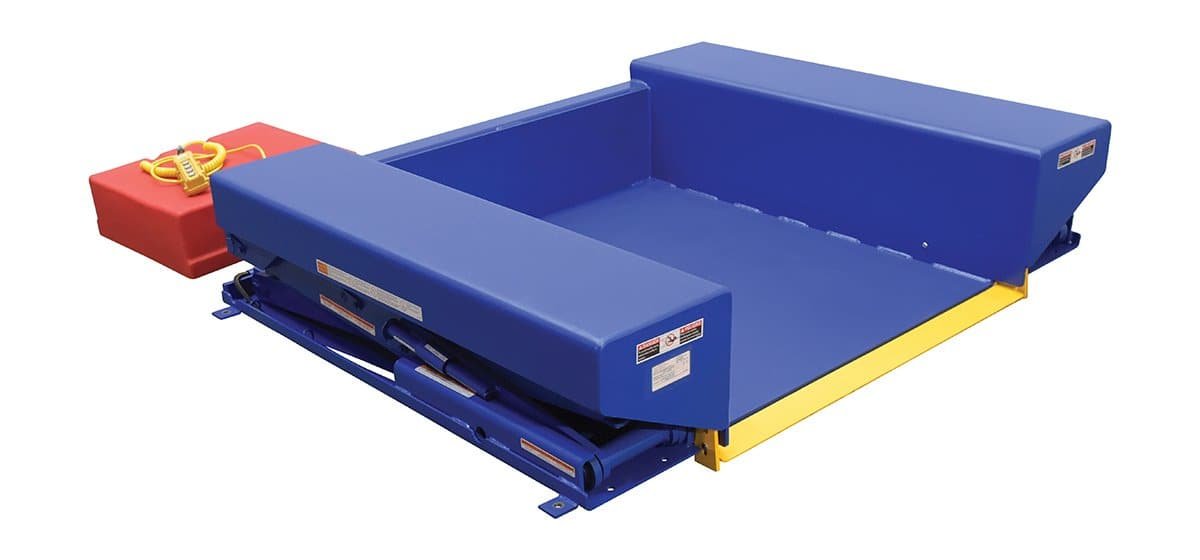

Ground Lift & Tilt Tables
SKU: EHLTGT-4452-2-36
A Ground Lift & Tilt Table is designed to lift or tilt products to an ergonomic working position, reducing operator bending
Products may be loaded and unloaded with the use of a standard hand pallet truck. There is no pit mounting required. Lift and tilt is controlled separately. Remote Power unit with hand-held control is standard.
| Ground Lift & Tilt Tables | |||||||
|
Model |
Image | Uniform Capacity (lbs) |
Overall Deck Size (WxL) |
Usable Size (WxL) |
Deck Range |
Fender Height Range |
Wt. (lbs.) |
| EHLTGT-4452-2-36 |  |
2,000 | 72-3/4"x56-1/4" | 44"x52-3/4" | 1/2" to 35-5/16" | 15-1/4" to 49-15/16" | 2121 |
| EHLTGT-4452-4-36 |  |
4,000 | 72-3/4"x56-1/4" | 44"x52-3/4" | 1/2" to 35-5/16" | 15-1/4" to 49-15/16" | 2230 |
| EHLTGT-4472-2-48 |  |
2,000 | 72-3/4"x76-1/4" | 44"x72-3/4" | 1/2" to 47-5/16" | 15-1/4" to 61-15/16" | 2950 |
| EHLTGT-4472-4-48 |  |
4,000 | 72-3/4"x76-1/4" | 44"x72-3/4" | 1/2" to 47-5/16" | 15-1/4" to 61-15/16" | 3013 |
| EHLTGT-5252-2-36 |  |
2,000 | 72-3/4"x56-1/4" | 52"x52-3/4" | 1/2" to 35-5/16" | 15-1/4" to 49-15/16" | 2337 |
| EHLTGT-5252-4-36 |  |
4,000 | 72-3/4"x56-1/4" | 52"x52-3/4" | 1/2" to 35-5/16" | 15-1/4" to 49-15/16" | 2322 |
| EHLTGT-5272-2-48 |  |
2,000 | 72-3/4"x76-1/4" | 52"x72-3/4" | 1/2" to 47-5/16" | 15-1/4" to 61-15/16" | 3045 |
| EHLTGT-5272-4-48 |  |
4,000 | 72-3/4"x76-1/4" | 52"x72-3/4" | 1/2" to 47-5/16" | 15-1/4" to 61-15/16" | 3074 |
KEY:
= Approval Drawing --
= Warranty --
= Testing Certificate
