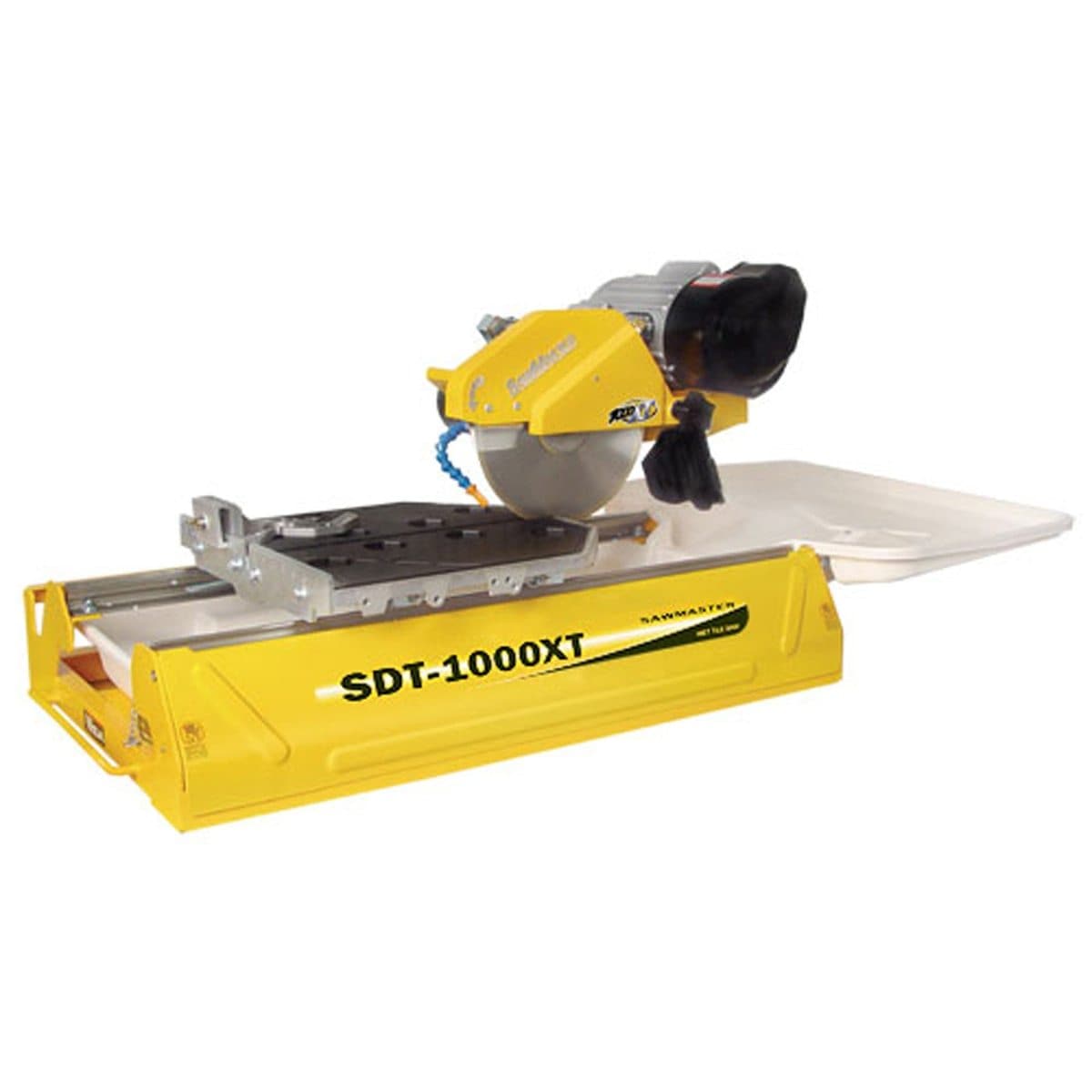

SawMaster SDT-1000XT Tile Saw

Saw Master SDT-1000XT Tile Saw - Tile Cutting Machine for cutting up to 24 inches in length

Designed to be a daily workhorse, the SDT-1000XT is constructed with a rigid steel frame for superior durability and equipped with a potent 1-1/2 HP induction motor that is capable of delivering reliable performance after years of heavy use, day in and day out. The saw also offers a large cutting capacity and a drip guard and drip tray for collecting water runoff when working on tiles up to 24" in length.

---

Features

ABS Water Tray
The provided ABS water tray is durable, yet lightweight, which helps minimize the saw's overall weight.

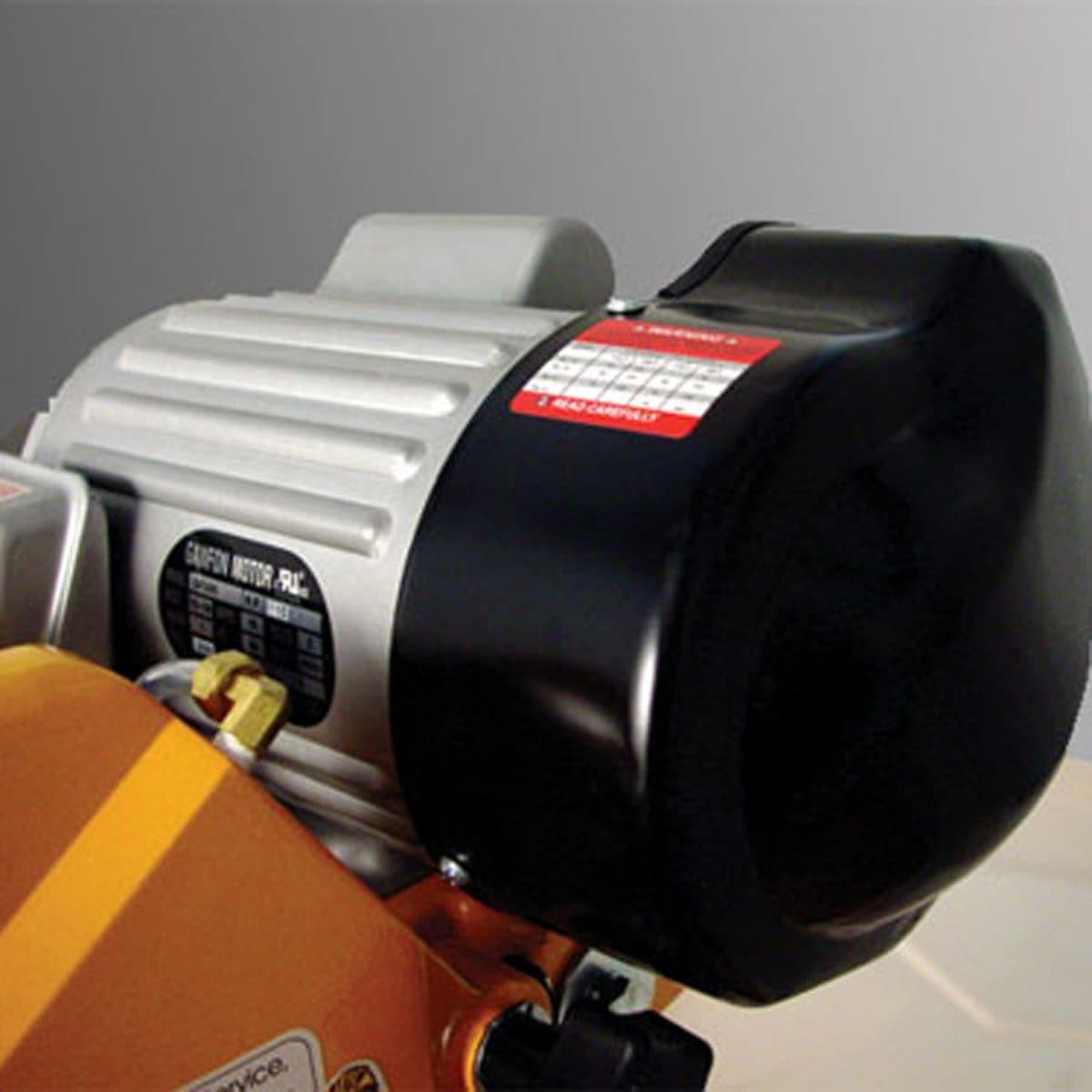

Induction Motor
The SDT-1000XT is equipped with a powerful 1-1/2 HP induction motor that delivers tremendous torque for easy smooth cuts.

Drip Tray
The drip tray returns water spray and runoff produced during operation to the water tray to minimize the loss of water and to keep the work site clean.

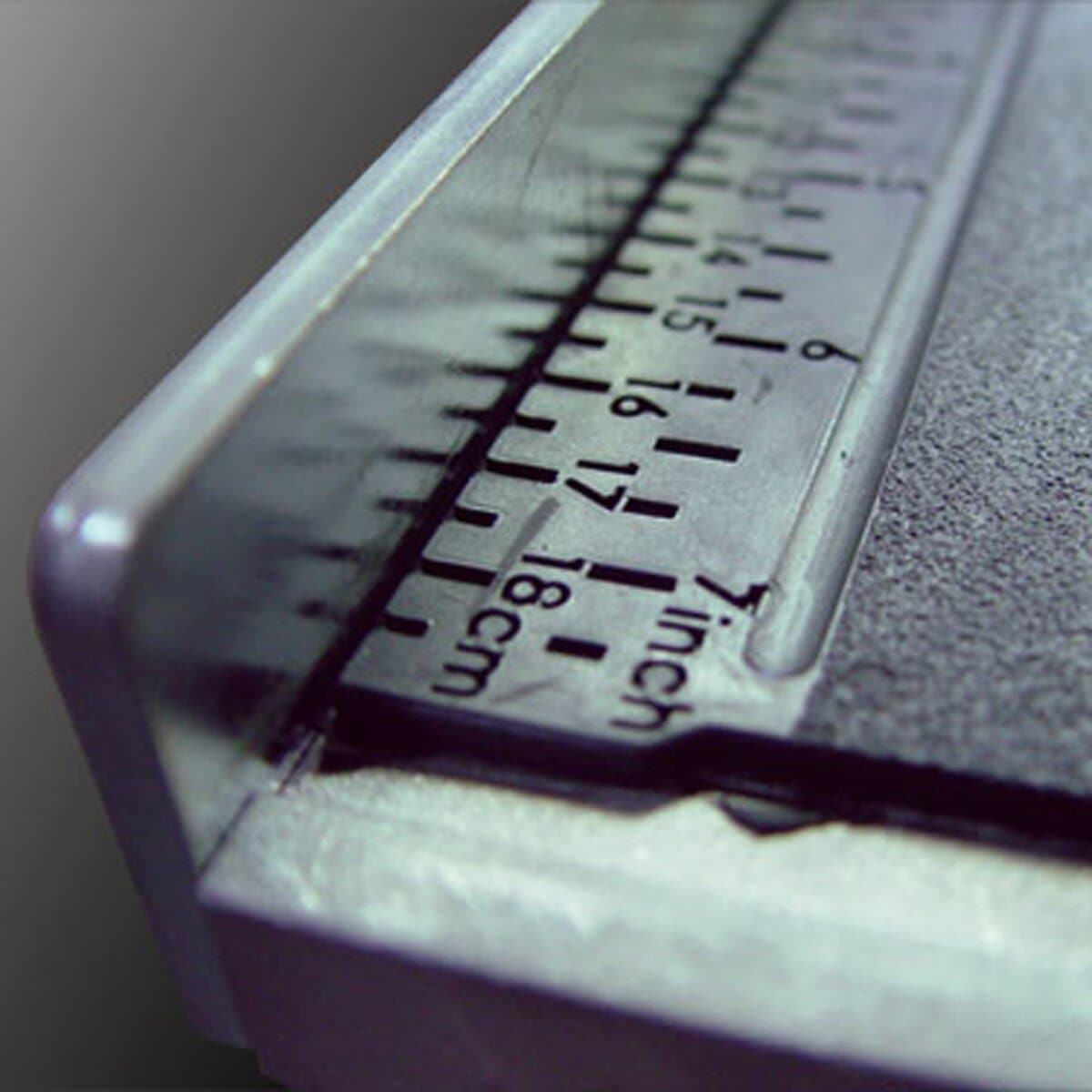

Ruler Guide
The cutting table features a convenient imprinted ruler on the rubber mat to assist the operator in making precise cuts.

Adjustable Water Feed
Water feed can be adjusted to direct water flow to the blade rim for improved cooling efficiency.

LCBH
The patented LCBH (Liquid Cooled Bearing Housing) works with the water pump to cool down the bearing housing during saw operation, which increases the service life of the bearings even under heavy loads.

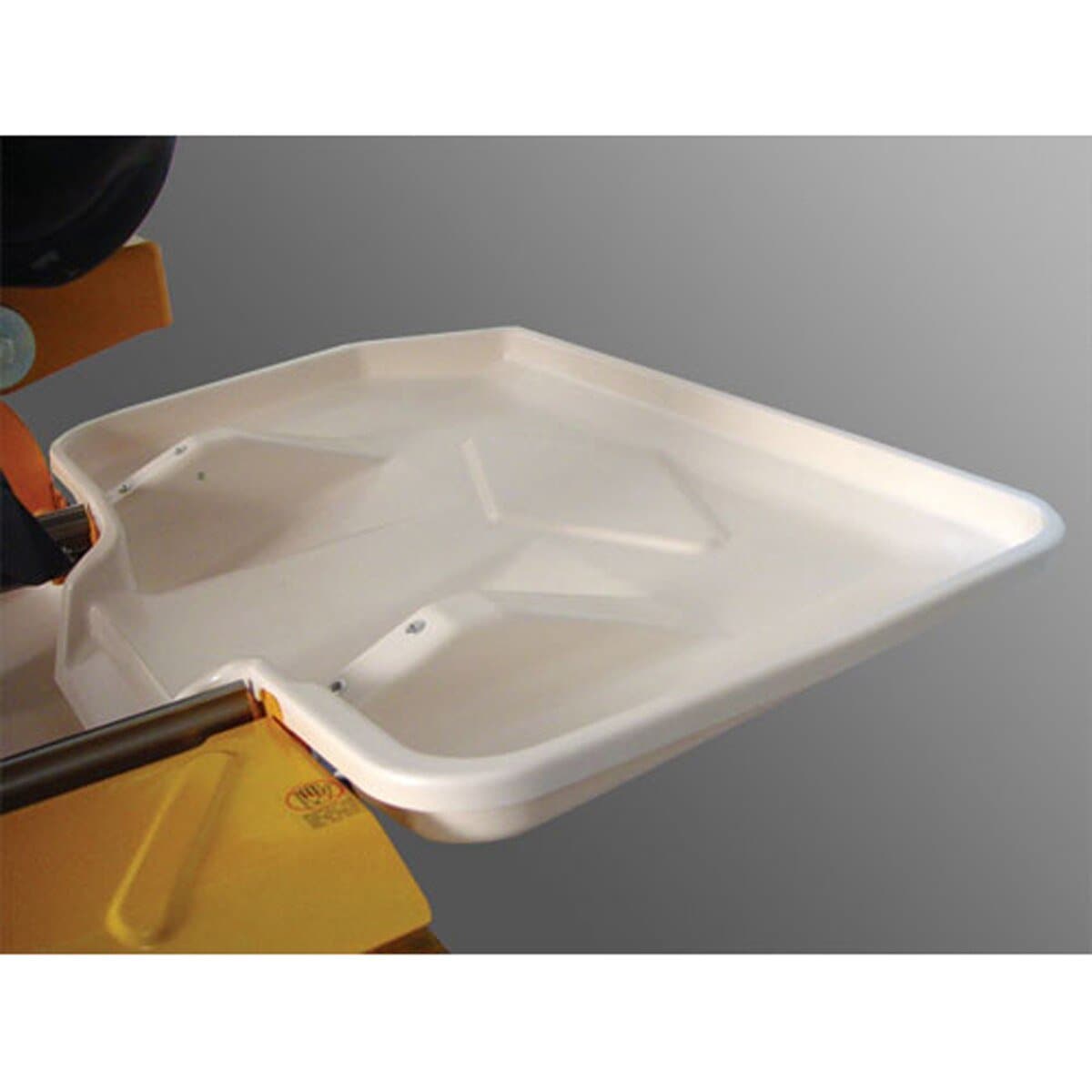

Side Extension Table
The optional aluminum extension table provides additional lateral support when working with larger tiles.

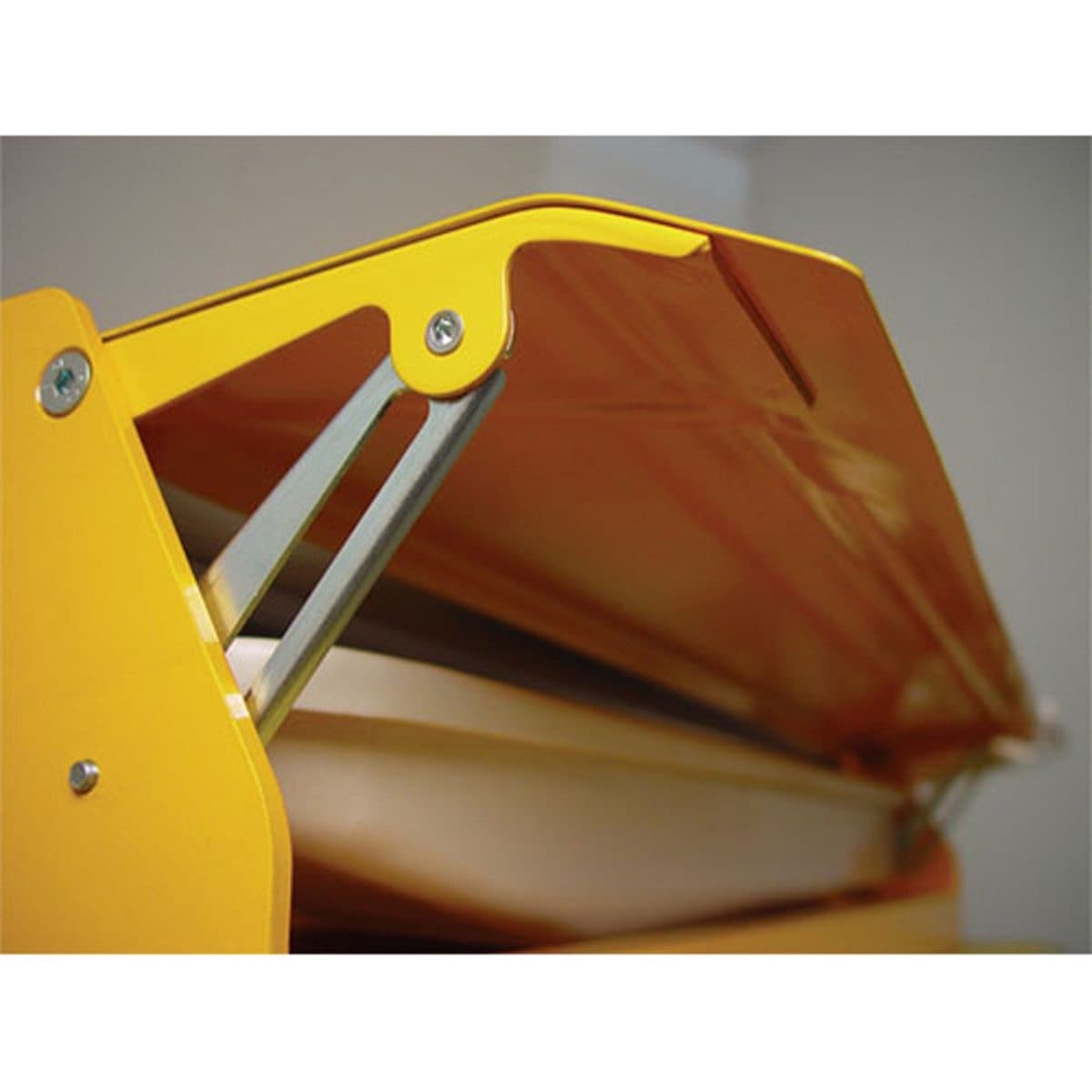

Drip Guard
Because oversized tiles often exceed the width of the cutting table, a substantial amount of water is lost by spilling over the edges. The drip guard alleviates this problem by catching the water and returning it to the tray. During transportation, the Drip Guard can be lowered to secure the water tray in place.



---

Specifications

Saw Type	Tile
Motor	115 V/60 Hz
Horsepower	1 1/2" HP
Blade Capacity	6" - 10"
Blade Arbor	5/8"
RPM	3450
Dimensions	38.5" x 23" x 21"
Weight	103 lbs
Cutting Depth	3 1/2"
Rip Cutting	24"
Diagonal Cutting	16" x 16"
ABS Water Tray	Equipped
Thermal Protection	Equipped
LCBH	Equipped



Recommend Using...

• Blade CR1080C (10" Cheetah Series Specialty Wet Tile Blades)
• Stand SDT-1000SW
