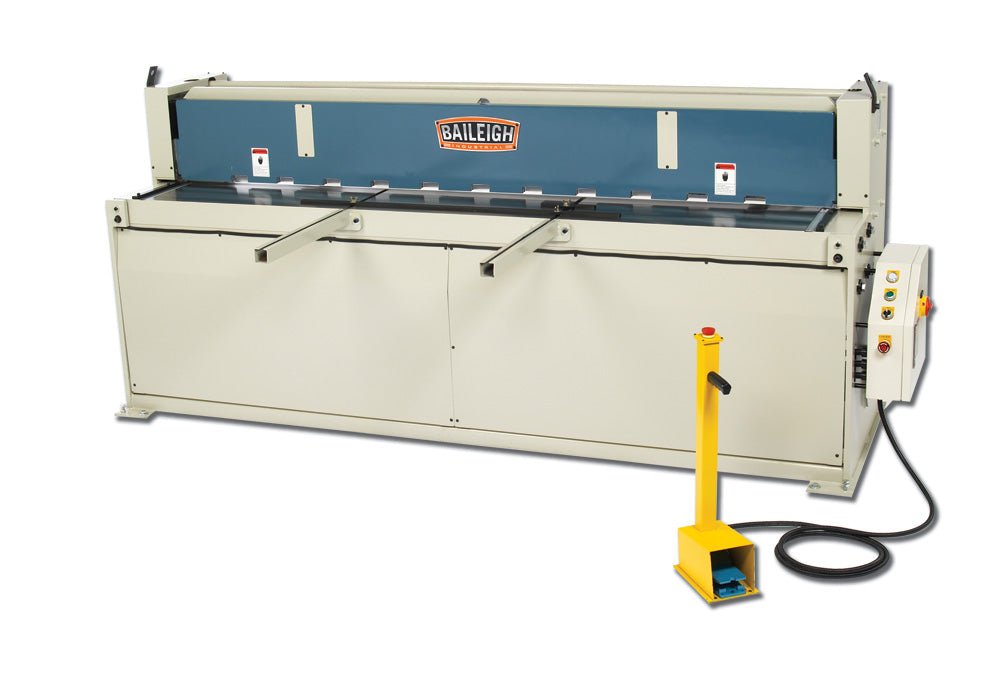

Hydraulic Metal Shear, SH-10010
SKU: BA9-1007037
Want to cut 8-foot sheets without trimming? This 100”-wide hydraulic shear can handle most applications. Its ground and polished steel plate frame ensures quality cuts at full capacity.
- 10 gauge mild steel maximum capacity.
- Minimum capacity of 24 gauge mild steel.
- 7.5 hp motor runs on 220-volt 3-phase power.
- Powerful industrial-grade hydraulics produce smooth movements that prolong blade life.
- Up to 22 strokes per minute.
- Adjustable 24” backgauge provides for repeatability.
- Front support arms and table guides keep the material square to the blade.
-
3 modes on the operator console:
- Inch mode: Jog the control and ease the blade down to the material.
- Single mode: Make one cut cycle per foot pedal push.
- Auto mode: Continue cycling as you hold the pedal down.
- Comes standard with high carbon chromium blades.
- Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
- Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.
- Fully welded steel construction helps prevent flex and maintain accuracy for many years.
- Covered by a 1-year parts warranty.
- We stock replacement parts, including blades, in house for fast shipping.
| Item Number | SH-10010 |
|---|---|
| Blade Rake Angle | 2 degrees |
| Back Gauge Length | 24" |
| Shear Length | 100" |
| Motor | 7.5 hp |
| Thickness (SS) | 10 ga. (13 ga.) |
| Strokes Per Minute | 22 |
| Front Gauge Length | 24" |
| Blade Angle | 2° |
| Power | 220V / 3-phase |
| Shipping Weight | 6000lbs |
| Minimum Material Thickness | 24ga |
| Shipping Dimensions (Inches) | 128x44x62 |
* specifications subject to change without notice.
