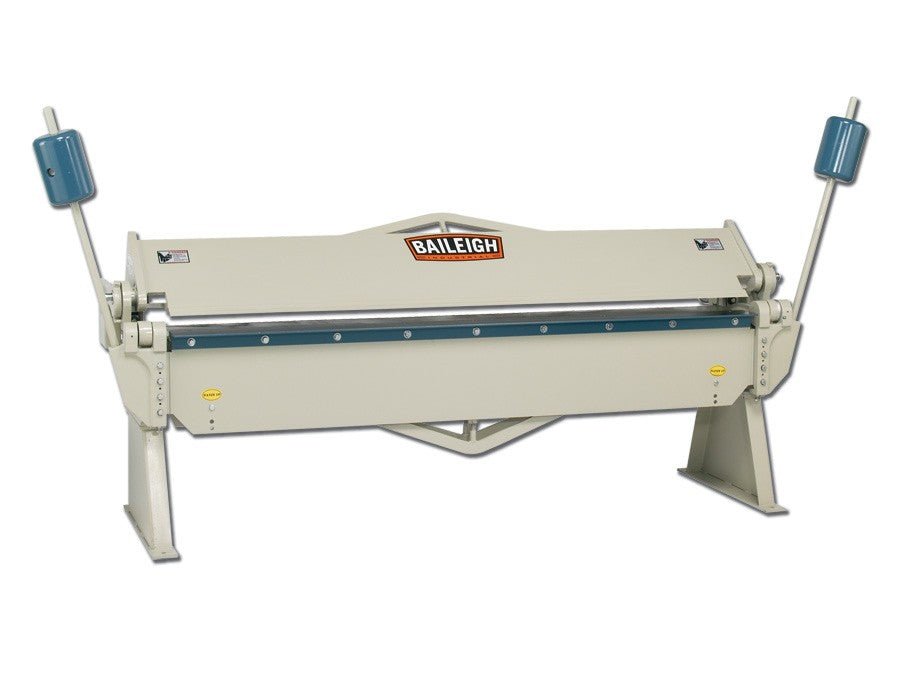

Sheet Metal Brake Hb-9616

Designed for efficient and precise light-gauge bending, this metal brake’s heavy-duty steel frame can bend 8-foot-wide sheet metal without trouble or distortion.

• Manually-operated straight brake.
• Bends 16 gauge (or lighter) mild steel sheet metal with ease.
• 8 feet (96”) long.
• Bend angle of up to 135°.
• Easily-adjustable material thickness wheels let you get the tightest bend possible with lighter materials.
• Bending leaf includes a removable apron to reduce distance between bends, if needed.
• Fully-welded frame and support rods keep alignment correct during the bending process, even at maximum capacity.
• Comes with 2 large counterweights to save you effort and physical strain when bending.
• We cover this 16 gauge 8 foot sheet metal brake with a 1-year parts warranty.
• Baileigh stocks almost all machine parts for fast shipments.
• You can count on lifetime technical support by phone. Call a Baileigh rep whenever you need help with the HB-9616.

Recommended for: HVAC shops or fabrication shops that need to bend full 4 x 8 sheets of light-gauge sheet metal.

* specifications subject to change without notice.
