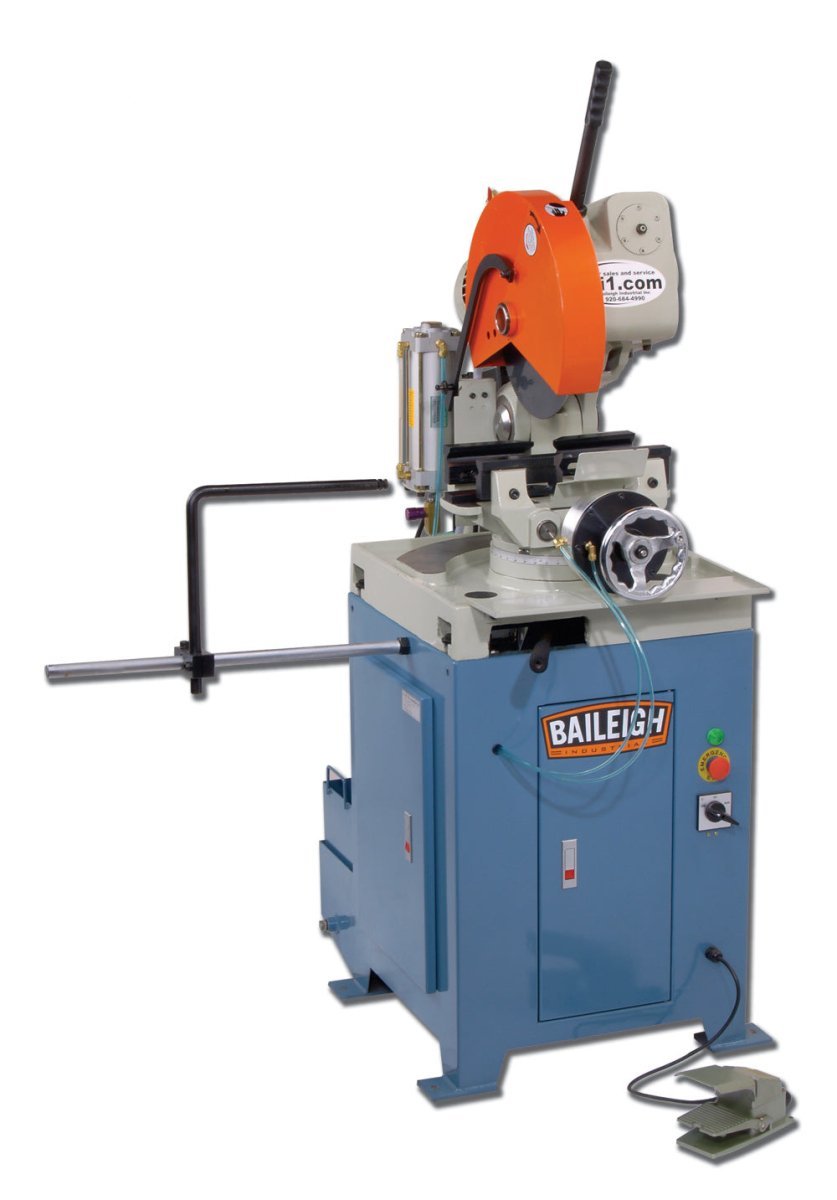

Cut Off Saw CS-350SA

This semi-automatic cold saw cutting machine makes pristine cuts on a production scale. Its pneumatic vise and automatic return save you time. A flood coolant system maintains high quality.

• Accepts a massive 14” blade.
• 4.33” round tube capacity at 90°.
• You can switch between 2 speeds, 26 and 52 rpm, depending on your material.
• 4 hp motor runs the direct-drive blade and requires 220-volt 3-phase power.
• Miters 45° right and 90° left, which is important if you have any slotting applications.
• Rigid cast iron head minimizes vibrations so that the blade gives you high-quality cuts—and will for many years to come.
• Ground and hardened all-metal gears in blade head ensure tight tolerances throughout the life of the saw.
• Backlash adjustment allows you to tighten the gears when needed and keep the saw accurate.
• Design adds semi-automatic features to our manual CS-350M, which has proven itself one of the best production saws available.
• Semi-automatic system is simple to operate.
• Simply put the material in the vise and push the foot pedal down. The saw handles the rest.
• The blade starts, descends, cuts, and returns on its own. Once the cut is complete the blade will shut off and the head will raise back up.

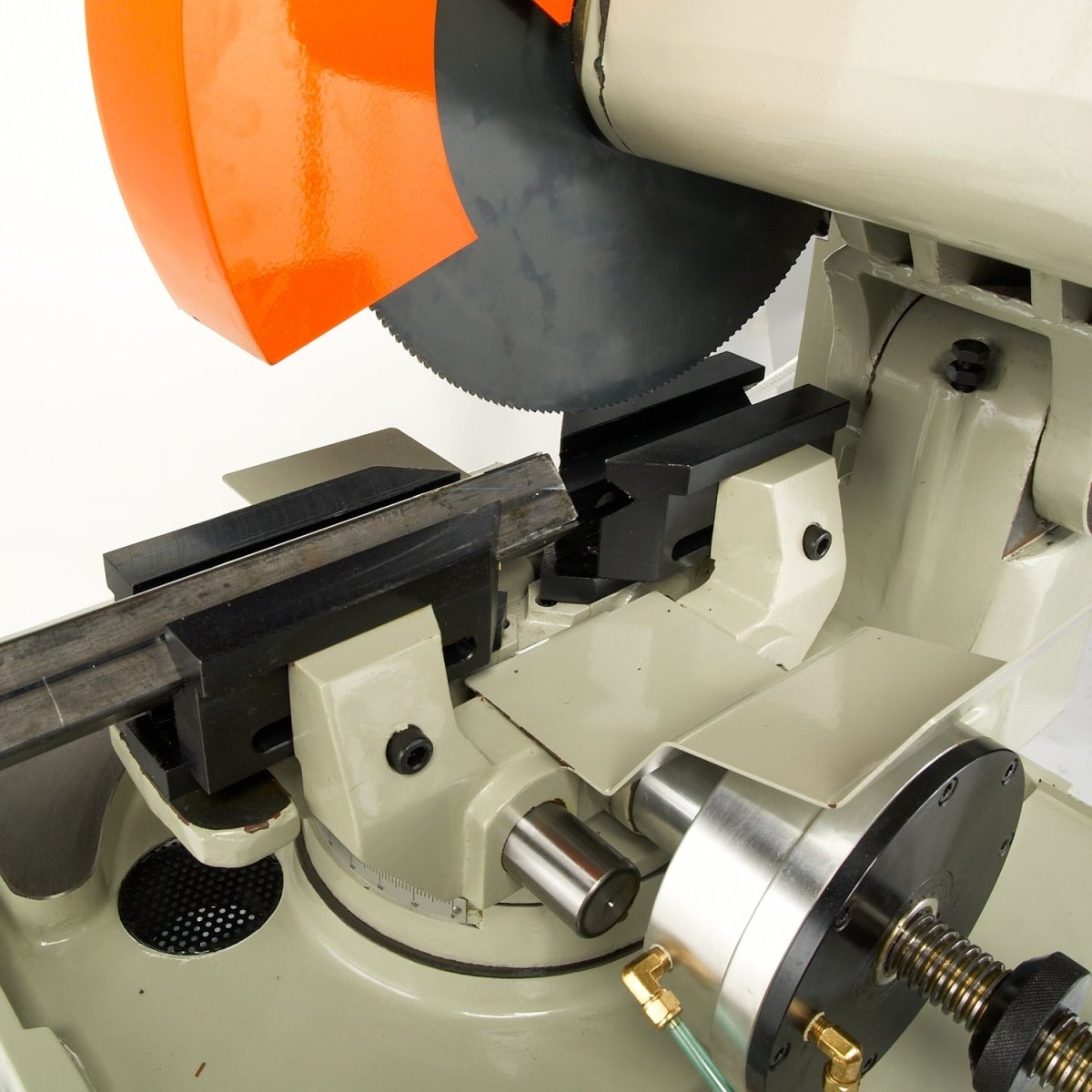

• Air-powered vise, controlled by the foot pedal, clamps the material with jaws on both sides.
• American-style vise is self-centering. It keeps the material in the right position for the blade, so you don’t have to worry about different material diameters.
• Steel stop rod allows you to cut repeatable lengths conveniently.
• Rigid cast iron saw base maintains accuracy and high cut quality by preventing the blade from wobbling.
• Durable folded steel stand puts the machine at a comfortable working height.
• Flood coolant system lubricates the blade and helps it deliver clean, precise cuts, like only a cold saw can.
• Integrated coolant system makes blades longer, so you spend less on replacements. It also prolongs the lifespan of saw itself.
• We stock replacement parts so we can ship them to you quickly.
• This circular cold saw comes covered by a 1-year parts warranty.
• Lifetime technical support by phone means that you can talk to a Baileigh rep with hands-on machine experience whenever you need help.



Recommended for: Production cutting of thin-, medium-, or thick-walled pipe, as well as tubing, extrusions, or solid bar stock.



Item Number	CS-350SA
Max. Blade Diameter	14"
Operation	Semi-Automatic
Head Miter	45° Left / 45° Right
Round Solid at 45°	1.575"
Square Tube at 45°	2.953" x 2.953"
Round Tube at 45°	2.953"
Rectangle Tube at 45°	2.953" x 2.362"
Round Solid at 90°	2.362"
Rectangle Tube at 90°	4.25" x 3.5"
Square Tube at 90°	4.25" x 4.25"
Round Tube at 90°	4.331"
Coolant System	Y
Slotting Capable	Yes, Left and Right
Vice Style	Dual Action, Self Centering
Max. Vice Opening	6"
Head Style	Pivot
Arbor Size	1.26"
Shear Capacity Plate	.393 "
Motor	3.0 / 4.0 hp
Blade Size	14"
Blade Speed	Two Speeds, 26 / 52 (rpm)
Power	220V / 3-phase
Shipping Weight	900lbs
Shipping Dimensions (Inches)	60x44x77

* specifications subject to change without notice.
