Personnel™ Roof Hatch

SKU# BG3630

$1,126⁷⁸

Shipping calculated at checkout.

2-3 Week Lead Time

Material

Steel Aluminum

Size

36 x 30 36 x 36 48 x 48 30 x 54 30 x 72 30 x 96

Product variants

Safe & Secure Payments.

Finance this product with NewLane Logo

Finance this product with PEAC Solutions Logo

Unsure which financing plan suits you? Discover your options here.

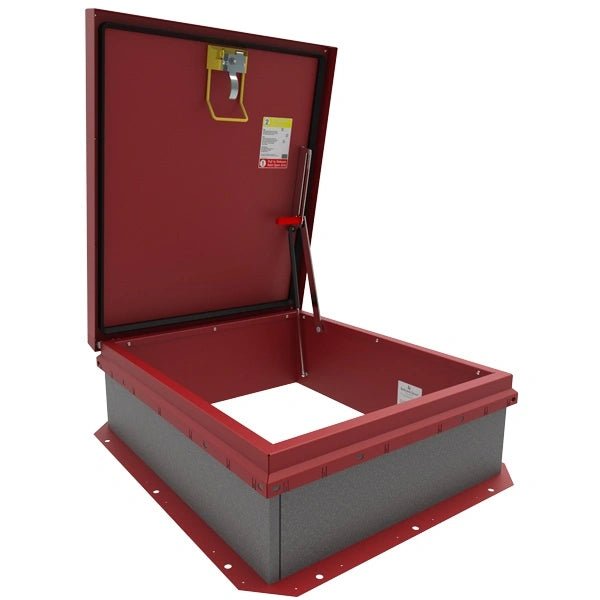

The Personnel Roof Hatch is improved to offer superior weather resistance in an easy to order stock roof hatch.

The industry’s leading roof hatch is customizable, sized for OSHA compliant safety railings and available in a variety of materials and finishes.

Model	BRHU
Material	Aluminum, 11 gauge Steel, 14 gauge galvanneal
Finish	Mill Red Oxide or High Reflectance White Powder Coat
Cover	Formed metal cover with liner internally stiffened to withstand a live load of 40psf with a max deflection of 1/150 the span
Curb	Single wall curb with railing ready EZ tab counterflash and mounting flange
Insulation	1 inch polystyrene in cover, 1 inch polyiso around curb; R-6
Gasket	Extruded EPDM adhesive backed gasket seal, continuous around curb and cover to assure a continuous seal
Hold Open Arm	Zinc plated steel automatic hold open arm locks cover in open position.
Latch	Zinc plated steel latch with exterior and interior turn handle and padlock hasp; tested to 140psf wind uplift
Warranty	Five (5) years
Certification	Florida Product Approval, Miami-Dade County Approved NOA# 21-1201.01, Expiration Date May 25, 2027
Spring	Gas spring with damper for smooth, controlled lift assistance
Hinge	Heavy-duty pintle hinge with stainless steel hinge pin.
Pull Handle	Interior safety pull down handle, yellow powder coat

STANDARD MODELS

RED STEEL	WHITE STEEL	ALUMINUM	SIZE	ACCESS	LATCH
BG3054	BW3054	BA3054	30 x 54	Ship Stair	Single Point
BG3630	BW3630	BA3630	36 x 30	Ladder	Single Point
BG3636	BW3636	BA3636	36 x 36	Ladder	Single Point
BG4848	BW4848	BA4848	48 x 48	Ladder	Single Point
BG3072	BW3072	BA3072	30 x 72	Ship Stair	2-Point
BG3096	BW3096	BA3096	30 x 96	Service Stair	2-Point
BG3696	BW3696	BA3696	36 x 96*	Service Stair	2-Point

*Not Miami-Dade County or State of Florida Approved
Additional sizes and options available, call for more information.
