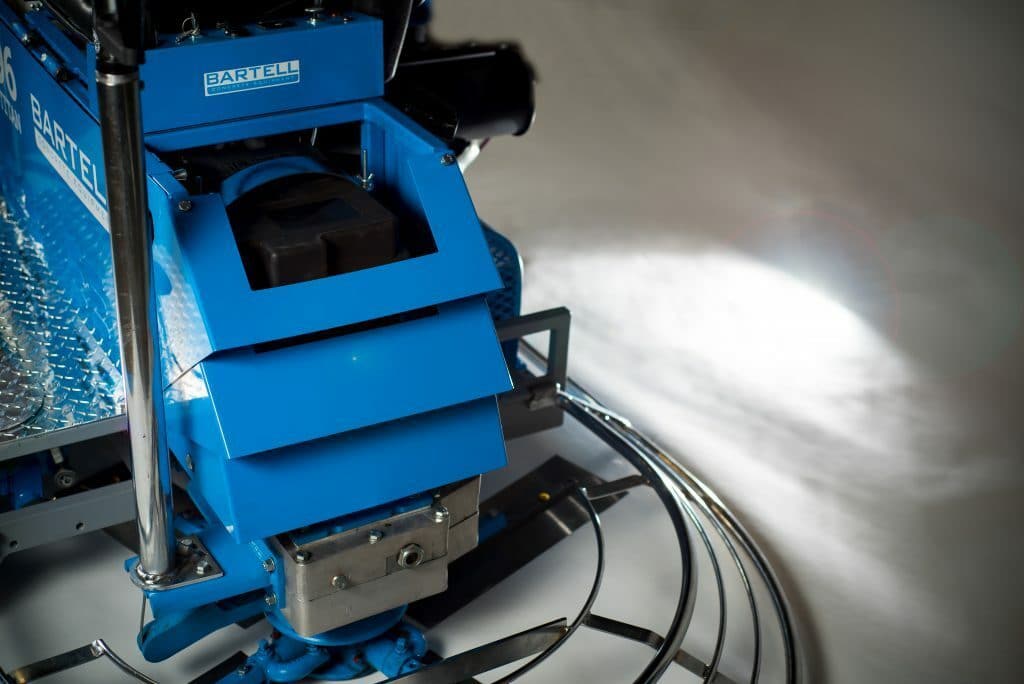

Titan 88 Ride-On Trowel

Features

Product Description

Our line of TITAN Ride-On concrete trowels have evolved over decades of research, testing, expert engineering and contractor feedback direct from the slab. We machine the tightest tolerances in the industry, which gives the Bartell Titan trowel arms more rigidity, better balance, and less demand for maintenance and repairs. We rely on this precision to allow for a lighter machine that is effective without needing the extra weight that many others use to compensate for poor design.

The TITAN comes in three sizes (78, 88, 96 inches), with several choices of engines, including hydraulic and propane options. Compatible with the iShine TPS system. Add concrete polishing to your list of services without adding the cost of an additional machine!

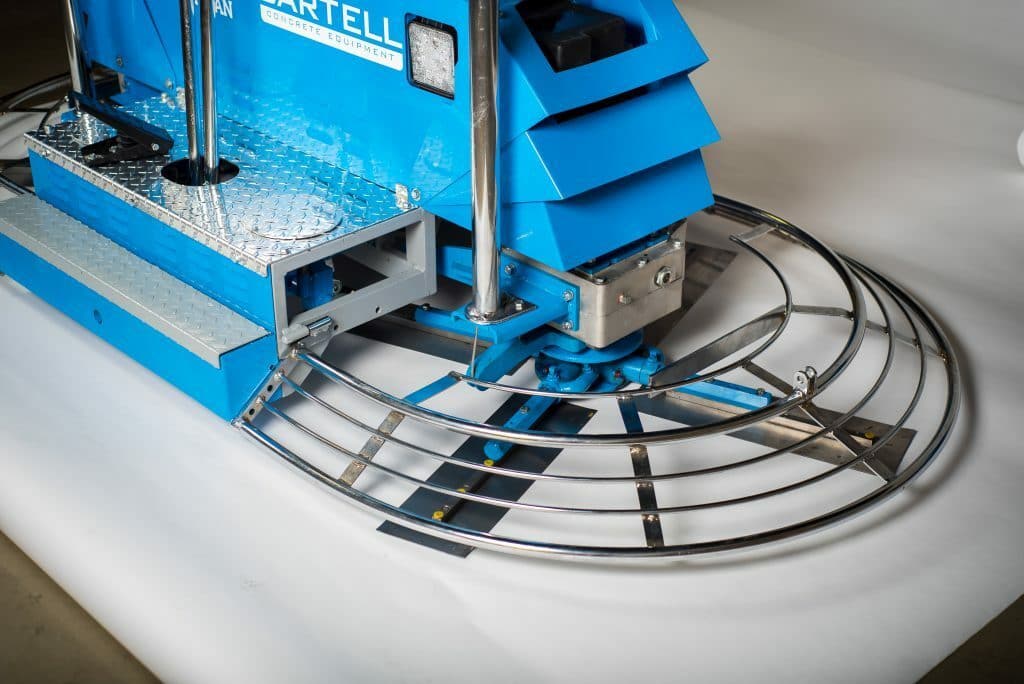

The Titan 88 is the only titan with overlapping blades, which increases efficiency, removing the gap between the two sets of blades, and eliminating the need for a second pass (or diagonal attack angle). The only downside is that the overlapping design means the Titan 88 can't be used for panning like the other Titans can.

  • 6" lower to the ground

  • 19" height from bottom of foot to seat

  • LED Lights in front and rear

  • 12v Outlet for USB charging

  • Greater visibility to blade

  • New accelerator pedal

  • Low profile design (Puts operator closer to concrete)

  • Heavy duty gearbox

  • Multiple engine selection

  • Weight plate add-on (Add up to 225lbs)

  • New compact transport system

Technical Specs

Type

Finishing


Power Source

Honda GX690 / Kohler CH740 / Kohler ECH749


Power Output

23/25/26.5hp


Float Blade Size

10" x 18" (25cm x 46cm)


Finish Trowel Size

6" x 18" (15cm x 46cm)


Combination Blade Size

8" x 18" (20cm x 46cm)


Float Pan

-


Operating Weight

930lbs (422kg)


Length

88" (224cm)


Width

48" (122cm)


Height

46" (117cm)


Weight

894lbs (406kg)
