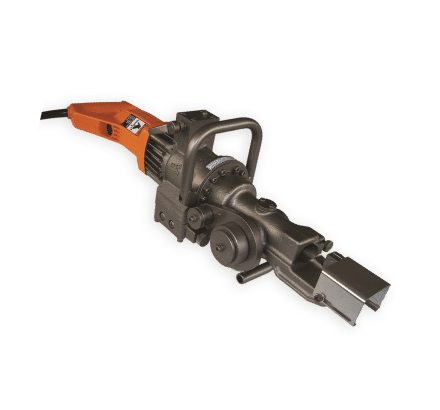

DBC-16H #5 (16mm) Cutter/Bender
SKU: DBC-16H

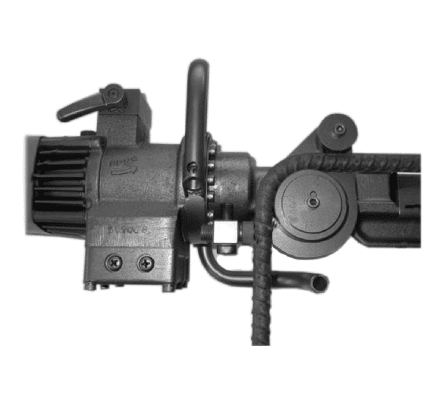

Fast and easy to use, there is no changing of attachments and it bends rebar up to 180 degrees
- This portable combination tool provides jobsite cutting and bending of rebar (reinforcing steel) all in one tool

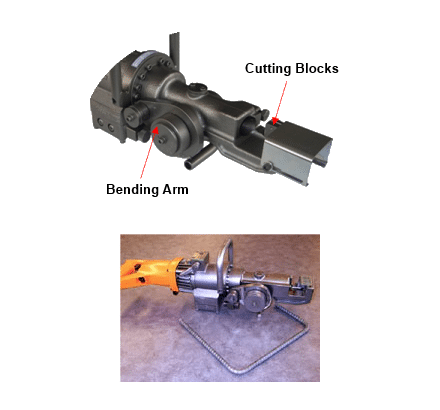

- The unique design of this unit provides the operator the ability to cut and bend rebar for in-place rebar or stationary fabrication applications
- Powerful electric/hydraulic design is for up to #5 (16 mm) grade 60 rebar
- Fast and easy to use, there is no changing of attachments and it bends rebar up to 180 degrees
- This tool was named as one of the Most Innovative Products at the World of Concrete Exposition - the DBC-16H will save you time and money doing on-site fabrication Included: steel carrying case, tool kit, hydraulic oil, operations manual, and a one year parts and labor warranty
PRODUCT LINKS
- DBC-16H Technical Manual: CLICK HERE
- DBC-16H Parts List: CLICK HERE
- DBC-16H Literature Sheet: CLICK HERE
| Cut / Bend Speed | 3 seconds /180 degree bend in 7 seconds |
| Bending Roller | 2.42" (62 mm) Diameter (R 31) |
| Clearance (In-place) Cutting | 1-3/4" (44.5 mm) from Surface |
| Clearance (In-place) Bending | 4.5" (115 mm) from Surface |
| Rebar Capacity | Up to #5 (16mm) Grade 60 |
| Power Supply | Electric motor 115v, 50/60 Hz –10 amps |
| Total Weight (kg) | 40 lbs. (18.2), 62lbs. (28.2) Shipping Weight |
| Tool Dimensions | 25-1/8" L x 6-3/8" W x 8-5/8" H including lifting handles (cutter up) |
