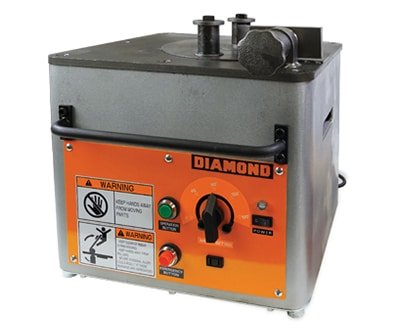

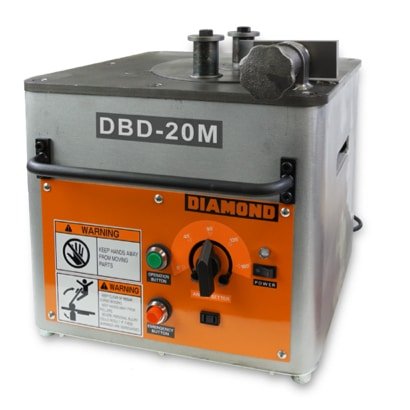

DBD-20M Mini 3/4″ #6 Rebar Bender
SKU: DBD-20M
The DBD-20M is an excellent job site rebar bender that can be mounted on the back of a truck

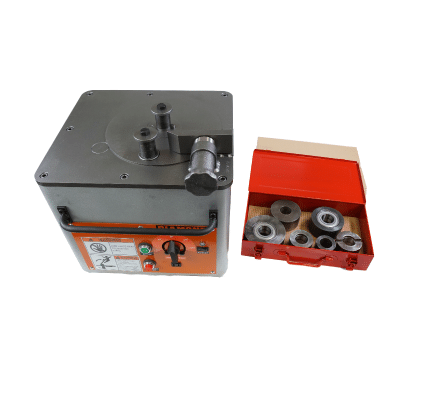

It can also be used in a shop location. It is designed to bend rebar up to a 3/4" #6 grade 60 rebar (20 mm) and you can run it off of a generator that is as small as 2000 Watts or use a standard 115-volt power. The tool has an angle setting that is very easy to use. Simply rotate the dial to the degree bend you want in order to make your desired shape. Standard with the tool are different size rollers for getting you the proper radius for the different sizes of rebar. A foot pedal is also included at no extra charge. The tool weighs just 90 pounds (40.8 Kg) and there are handles on both front and back for easy transportation. BN Products-USA backs this tool with a one-year parts and labor warranty.
Specifications| Maximum Bending Diameter | 3/4" (#6) Rebar (22mm) Grade 60 |
| Bending Angle / Speed | Up to 180 degrees / 6 seconds |
| Voltage/Amperage | 100V 50/60Hz / 11 amps / 1050 W |
| Tool Weight | Shipping Weight | 148.0 lbs. | 199.0 lbs. |
| Dimensions L x W x H | 16.4" (420 mm) x 18" (462 mm) x 16.2" (415 mm) |
