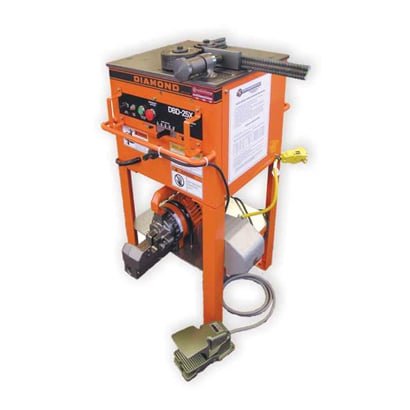

The DBC-2025 and the DBC-2525 are the combination products made up of our most successful tools.

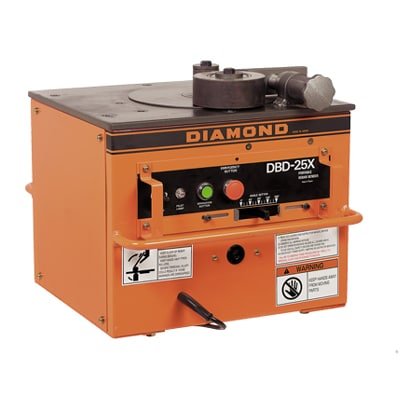

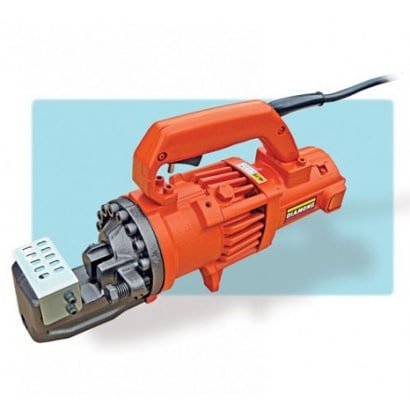

They simply combine our top of the line DBD-25X bender with the DC-20WH or DC-25X rebar cutter both together on a stationary stand. One of the greatest advantage to owning of these versatile combination units is that the rebar cutter can be simply removed and used in any portable application or it can remain locked into a stationary position with the removable u-bolts and then operated by a standard foot pedal switch. The other advantage is production; the bender table is at the ideal working height and the DBD-25X bends rebar from 0 -180 degrees. The BCSE-25X combination stand joins the bender & cutter both together.
Specifications
DBC-2520 | |
Max. Cutting | #6 or ¾” Grade 60 |
Max. Bending | #7 or 7/8″ Grade 60 |
Cutter Power | 115 Volt 50/60 Hz -10 amps |
Bender Power | 115 Volt 50/60 Hz -12 amps |
Total Weight (kg) | 250 lbs. (113.5 kg) |
Dimensions LxWxH | 19.25″ (490 mm) x 24.75″ (629 mm) x 37.25″ (946 mm) |
DBC-2525 | |
Max. Cutting | #8 or 1" Grade 60 |
Max. Bending | #7 or 7/8″ Grade 60 |
Cutter Power | 115 Volt 50/60 Hz -10 amps |
Bender Power | 115 Volt 50/60 Hz -12 amps |
Total Weight (kg) | 250 lbs. (113.5 kg) |
Dimensions LxWxH | 19.25″ (490 mm) x 24.75″ (629 mm) x 37.25″ (946 mm) |
