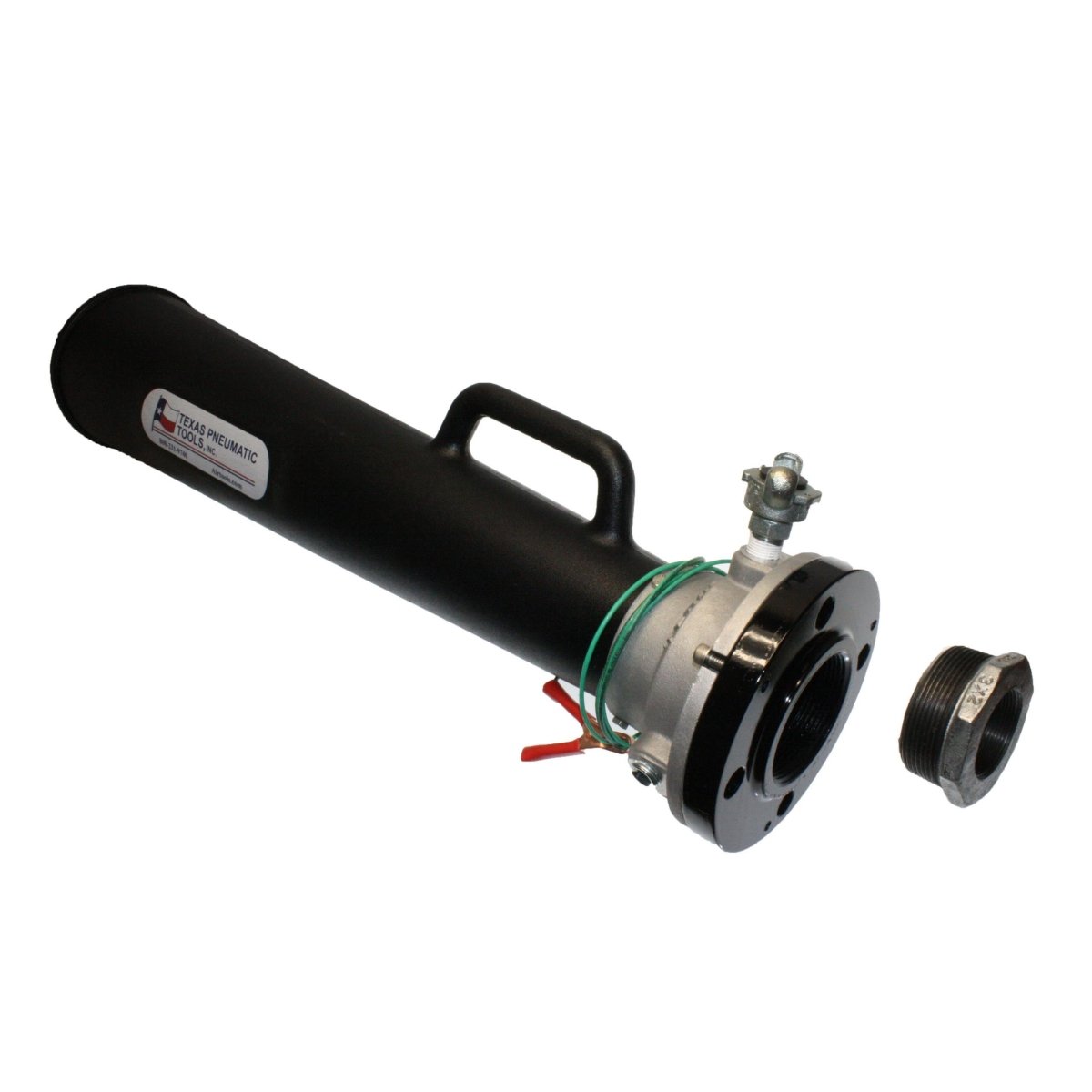

This is a 3″ Pipe Line Blower with a 3″ male pipe thread (MPT) x 2″ female pipe thread (FPT) bushing & TX-3AM-P air mover.

The 3″ API flange (AM52) is attached to the base of the TX-3AM-P air mover with three – 5/16″-18 thread stainless socket head cap screws. The flange has 3″ female pipe threads on it’s inside diameter. A 3″ MPT x 2″ FPT Bushing (TX-10046) comes with the unit and allows it to be used with 2″ pipe. This unit is designed to pull air from a tank or pipe line via a 2″ or 3″ pipe connection.

Specifications:

• Diameter of Base = 7.31″
• Inlet = 1/2″ NPT
• Bolt Circle Diameter = 6.56″
• Base Slot Diameter = .40″
• Boxed Weight = 19 lbs.
