Lasers are typically utilized in the early stages of construction, and measurement needs will vary based on application requirements.

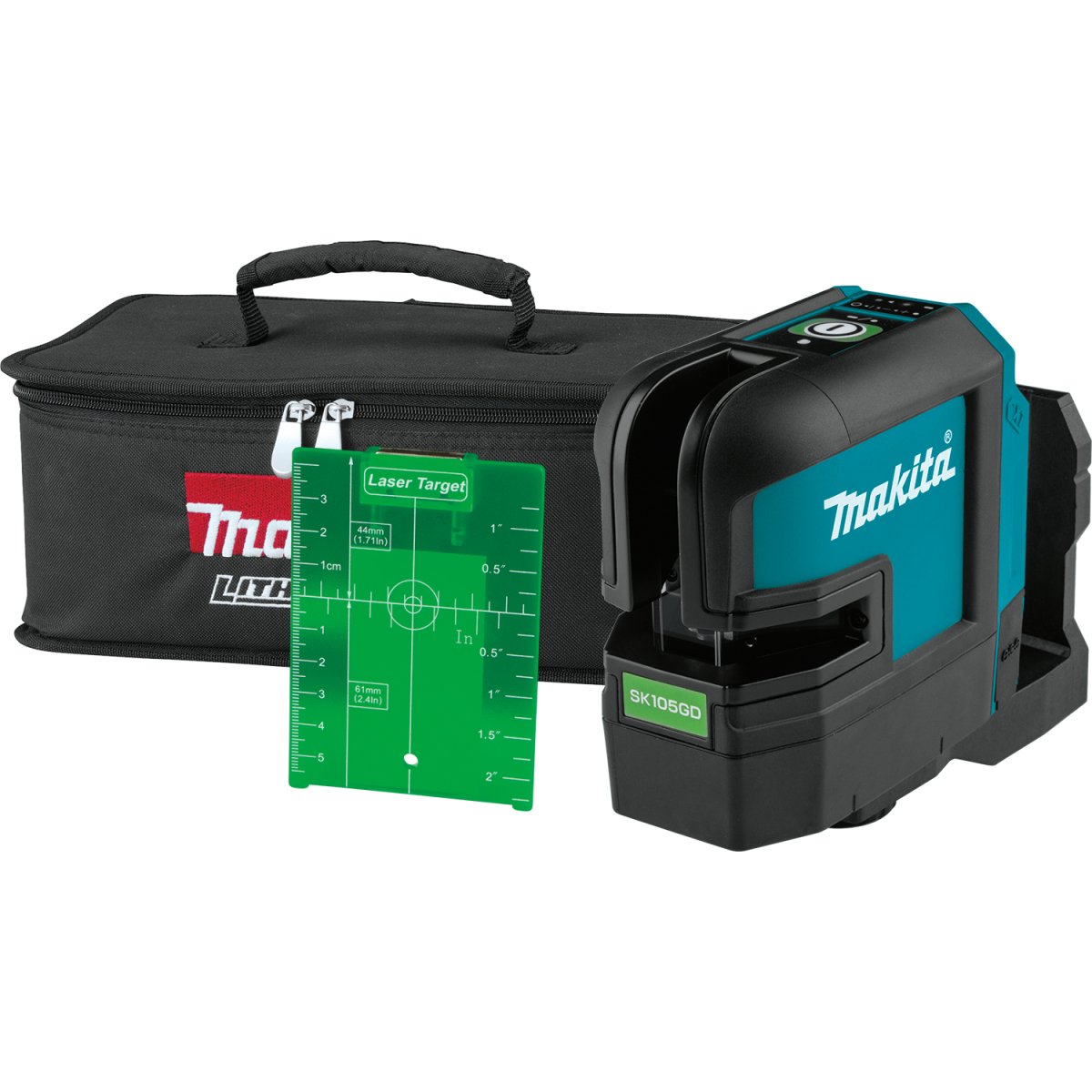

The Makita 12V max CXT® Lithium-Ion Self-Leveling Crossline Green Beam Laser (SK105GDZ) gives the user a cordless solution for selectable horizontal/vertical cross reference lines required for level, align, and plumb applications. Depending on ambient light in the working environment, the SK105GDZ has a line visibility range up to 115' and is detectable up to 262’ with a Makita Laser Detector (sold separately).
The SK105GDZ has a bright 525 nm class II green laser with +/-1/8” at 33’ for best-in-class accuracy. The laser line fan length spans past the 90-degree position to provide 180 degrees horizontal and 160-degree vertical lines for full reference line coverage. For increased efficiency, self-leveling line stability is achieved in up to 3 seconds for increased productivity.

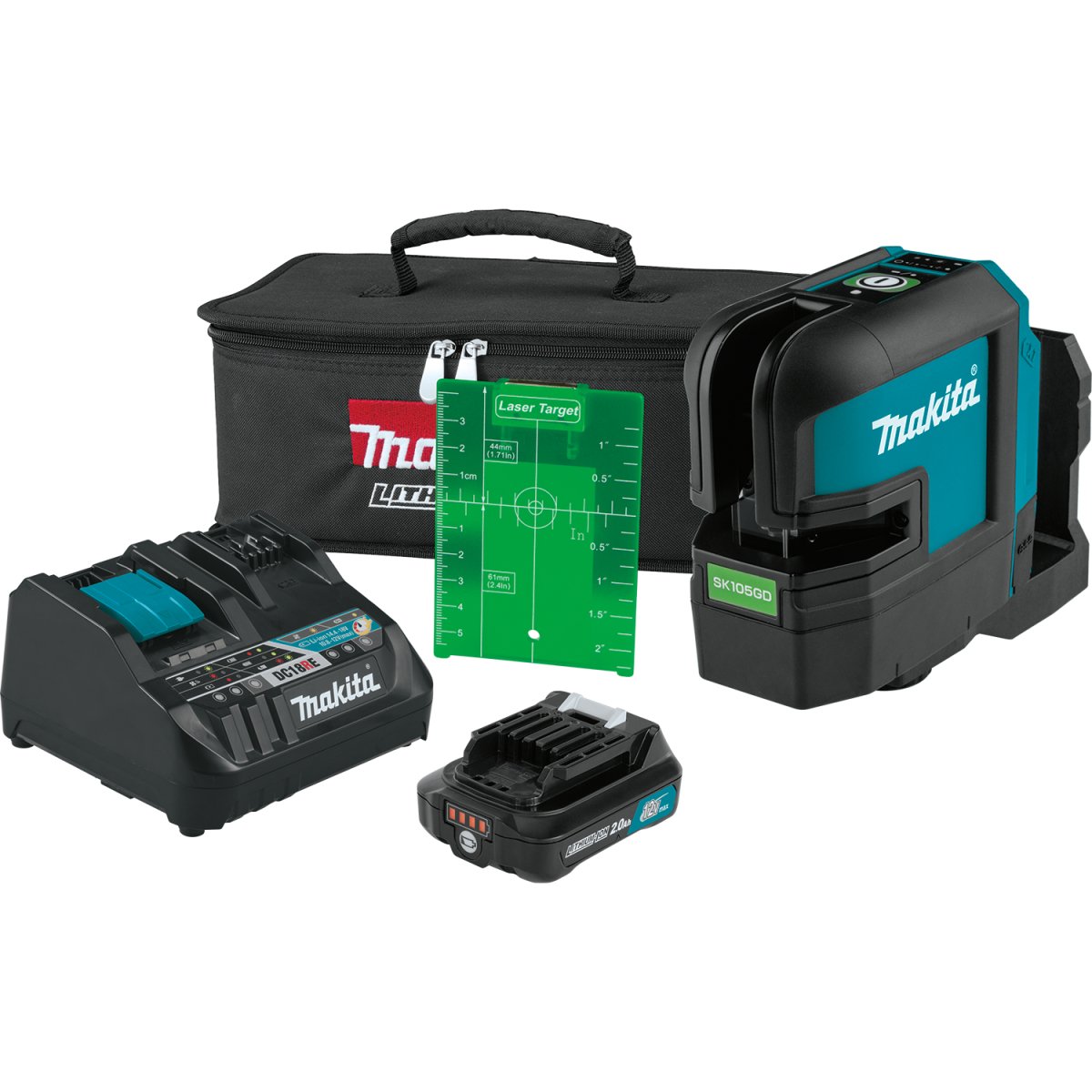

For longer run time, all 12V max CXT® cordless tools are also compatible with the 12V max CXT® Lithium-Ion 4.0Ah battery (BL1041B). 12V max CXT® lithium-Ion batteries are engineered with a Battery Protection Circuit that protects against overloading, over-discharging and over-heating. It’s part of the expanding 12V max CXT® series, combining performance with superior ergonomics in a compact size.
For users in the 18V LXT® battery platform, the SK105GDZ has a power connector port that allows an 18V LXT® battery to be used with the Power Source Adapter (ADP05) and Adapter Cord (adapter and cord sold separately).
Features
- Selectable horizontal/vertical cross reference lines required for level, align and plumb applications
- Makita 12V max CXT® 4.0Ah rechargeable battery provides up to 20 hours of continuous run time (battery not included)
- Green line visibility ranges up to 115’ depending on ambient light and detectable up to 262' with Makita Laser Detector LE00855702 (sold separately)
- Bright 525 nm class II green laser for best-in-class visibility with +/-1/8” at 33’ for best-in-class accuracy

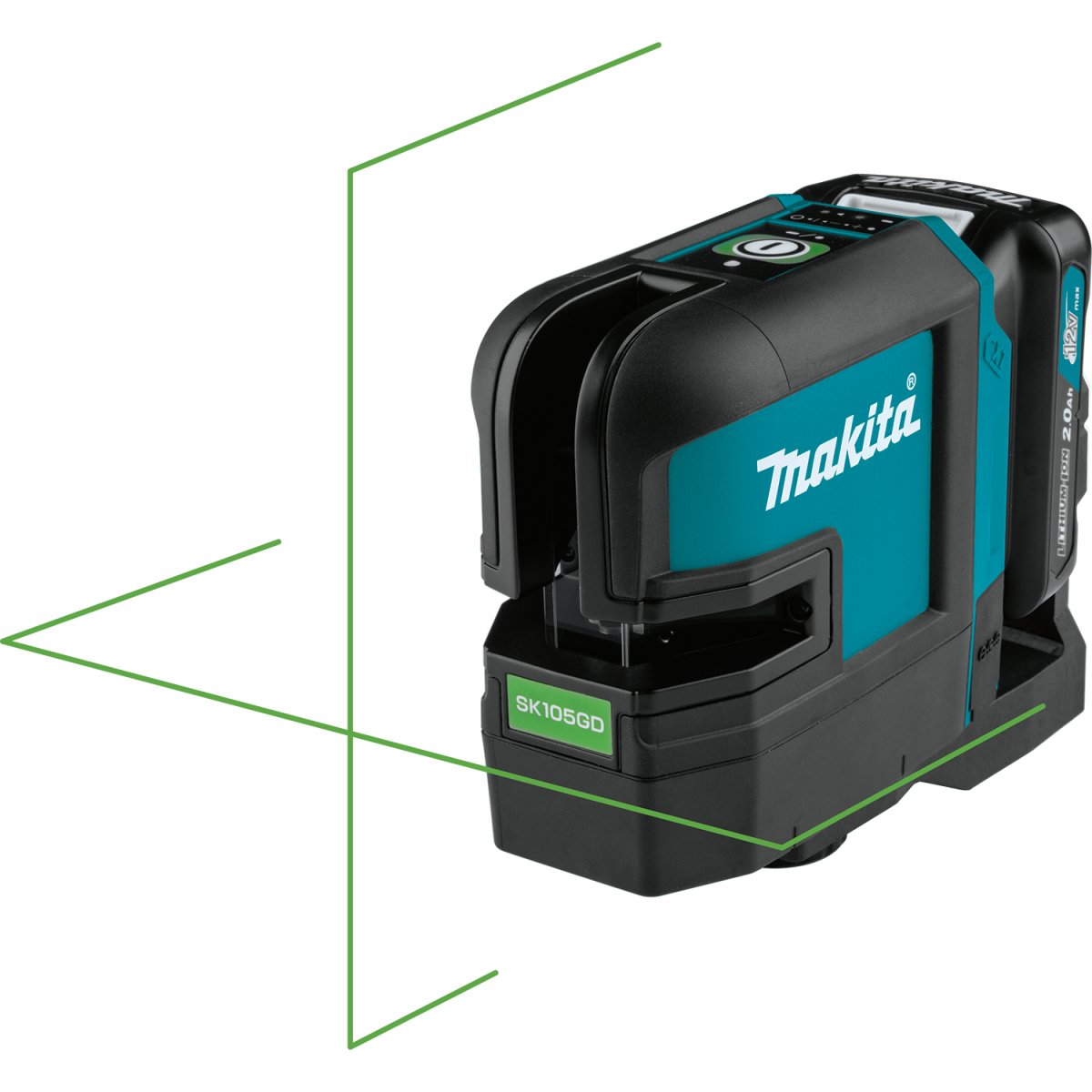

- Laser line fan angle spans past the 180° horizontal line and 160° vertical line positions for full reference line coverage
- Fast self-leveling line stability is achieved in up to 3 seconds for increased productivity
- Integrated pendulum lock enables slope incline applications and provides added protection of laser diode during transport & storage
- Self-leveling is correctable up to 4º of slope allowing operation on uneven surfaces
- Dust and water resistance with IP 54 rating for increased durability
- Highly protected laser windows are recessed into the housing for increased durability
- Rubberized housing over-mold for increased protection
- Simplified one button user interface for ease of operation
- Low laser brightness mode conserve battery power for extended run-time performance
- Power connector port allows 18V LXT® Lithium-Ion Battery to be used as alternate power source with Power Source Adapter (ADP05) and Adapter Cord (adapter and cord sold separately)
- Multi-purpose magnetic bracket with integrated 1/4” & 5/8” threads allow laser attachment to metal surfaces, wood surfaces or Makita Tripods (TK0LM1001F and TK0LM5030F)
- Battery Protection Circuit protects against overloading, over-discharging and over-heating
- Part of the expanding 12V max CXT® series, combining performance with superior ergonomics in a compact size
- Not compatible with 12V max pod-style tools, batteries and chargers
- Battery and charger not included
- 3-year limited warranty
- Only use genuine Makita batteries and chargers
Specs
-
Battery: 12V max CXT® Lithium-Ion
-
Line accuracy (at 33'): +/- 1/8"
-
Line beam direction: 2 lines (horizontal, vertical)
-
Working range (line): 115'
-
Working Range with Detector: 262'
-
Operating time (hours): 20
-
Laser diode: Class II, 510-530 nm
-
Levelling range: 4°
-
Debris resistance: IP54 rating (dust & water resistance)
-
Auto shut off: No
-
Net Weight (with battery, sold separately): 1.9 lbs.
-
Laser Beam Color: Green
