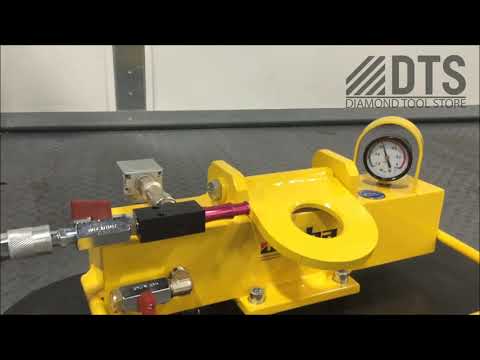

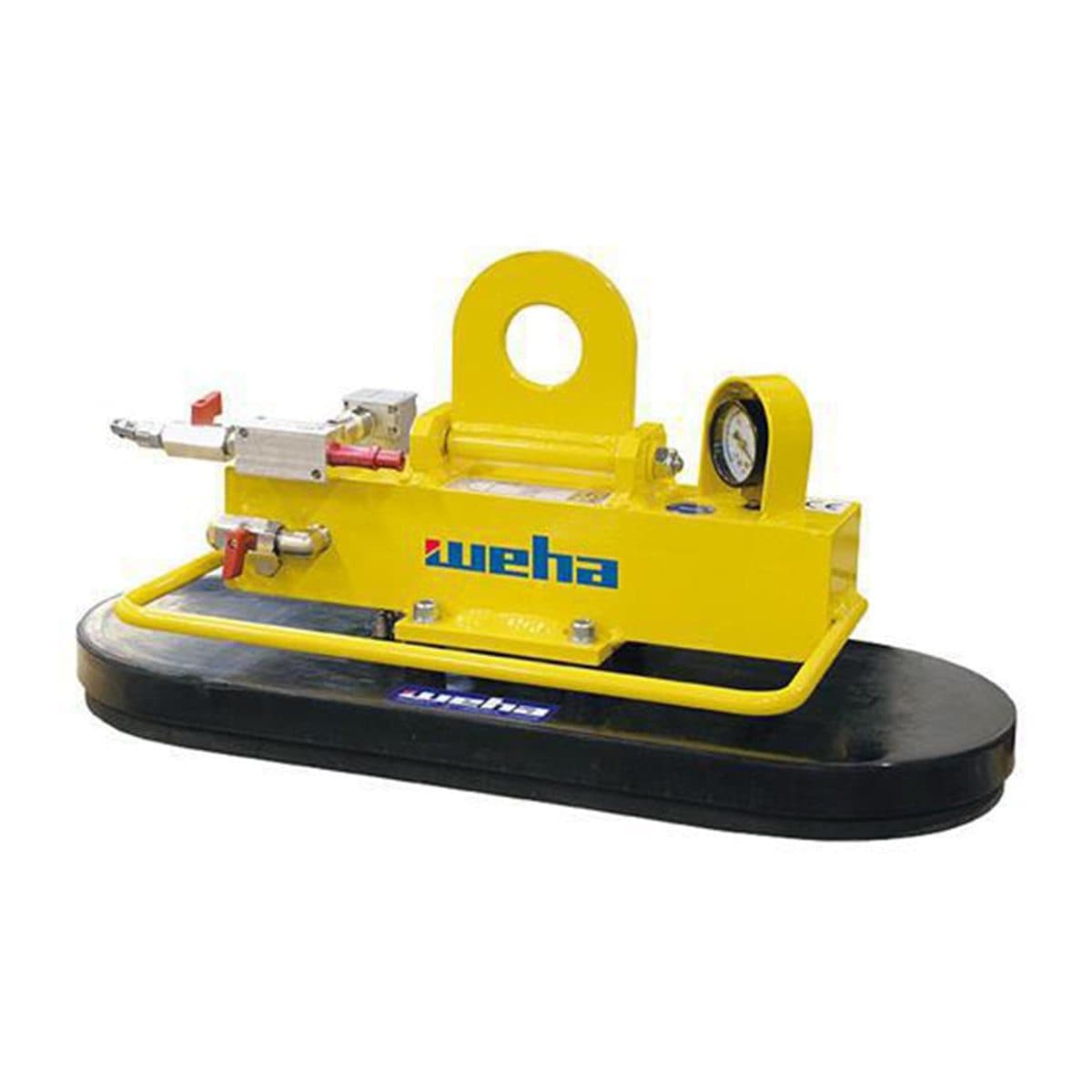

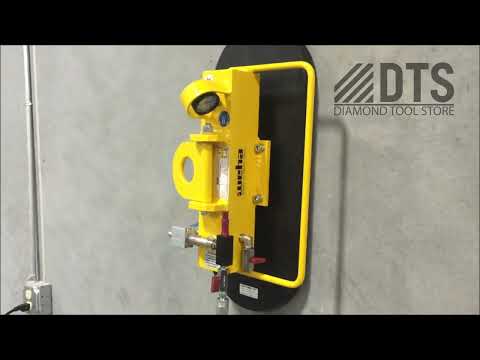

Weha T600 Pneumatic Vacuum Lifter Unipad Air Only

Weha T600 Pneumatic Vacuum Lifter Unipad Design. Air Only. Single Pad Vacuum Lifter for Stone, Landscape, Metal

Features

Runs off of a small compressor with a min 2 CFM and 60psi.
Load Capacity Horizontal: 1323 Lbs
Load Capacity Vertical: 661 Lbs
Suction Plate: 24" X 10"
Weight: 40 Lbs

Technical Documents

For the slightly more compact version try Weha T300 Unipad

This can be connected to an air compressor that operates via a venturi system.
Comes with a multi-filter and water trap Prevents the penetration of dust and moisture.
Protects the pneumatic structural parts against premature wear Very visible pressure gauge.
Comes with a built in safety-vacuum tank made of aluminum material (non-corrosive!)

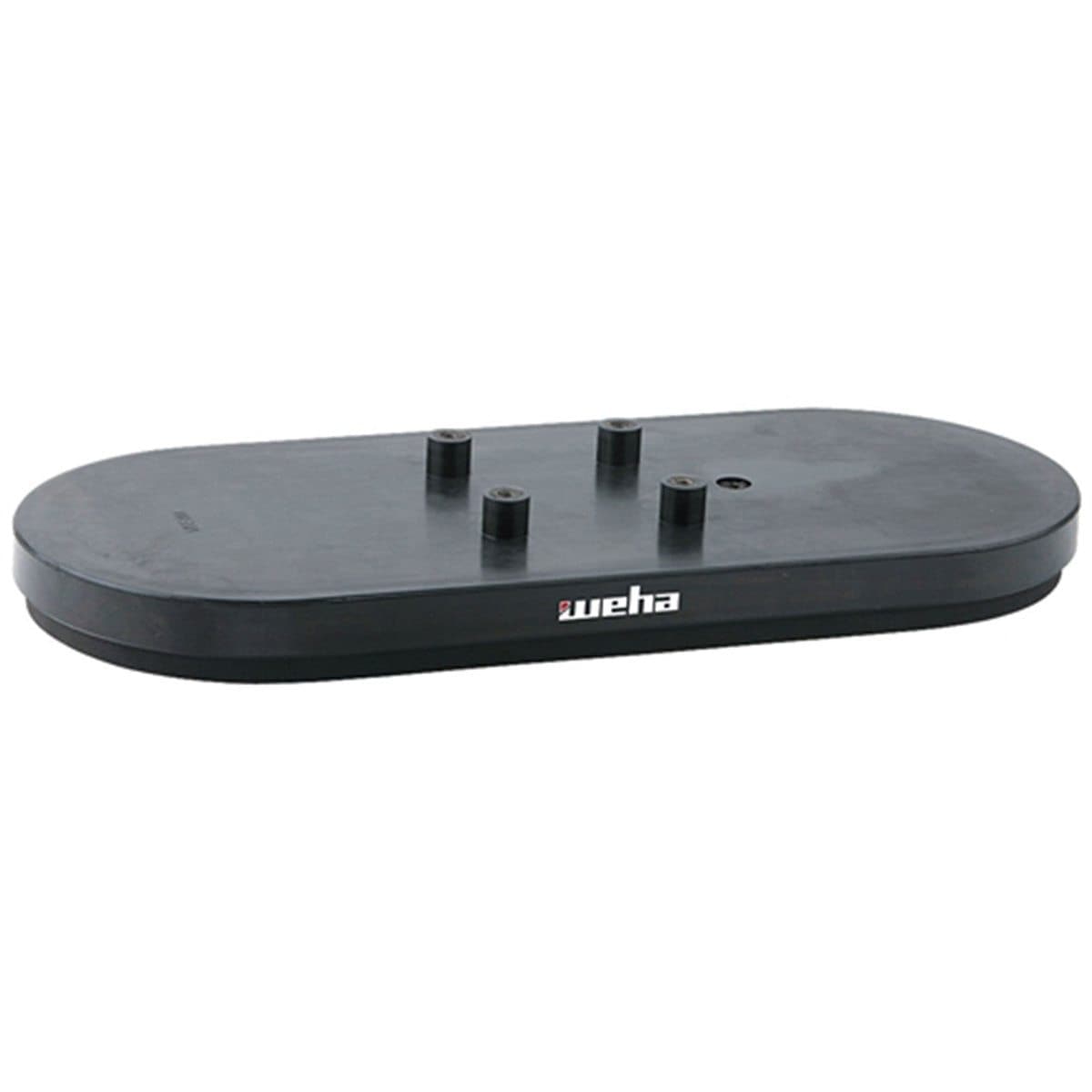

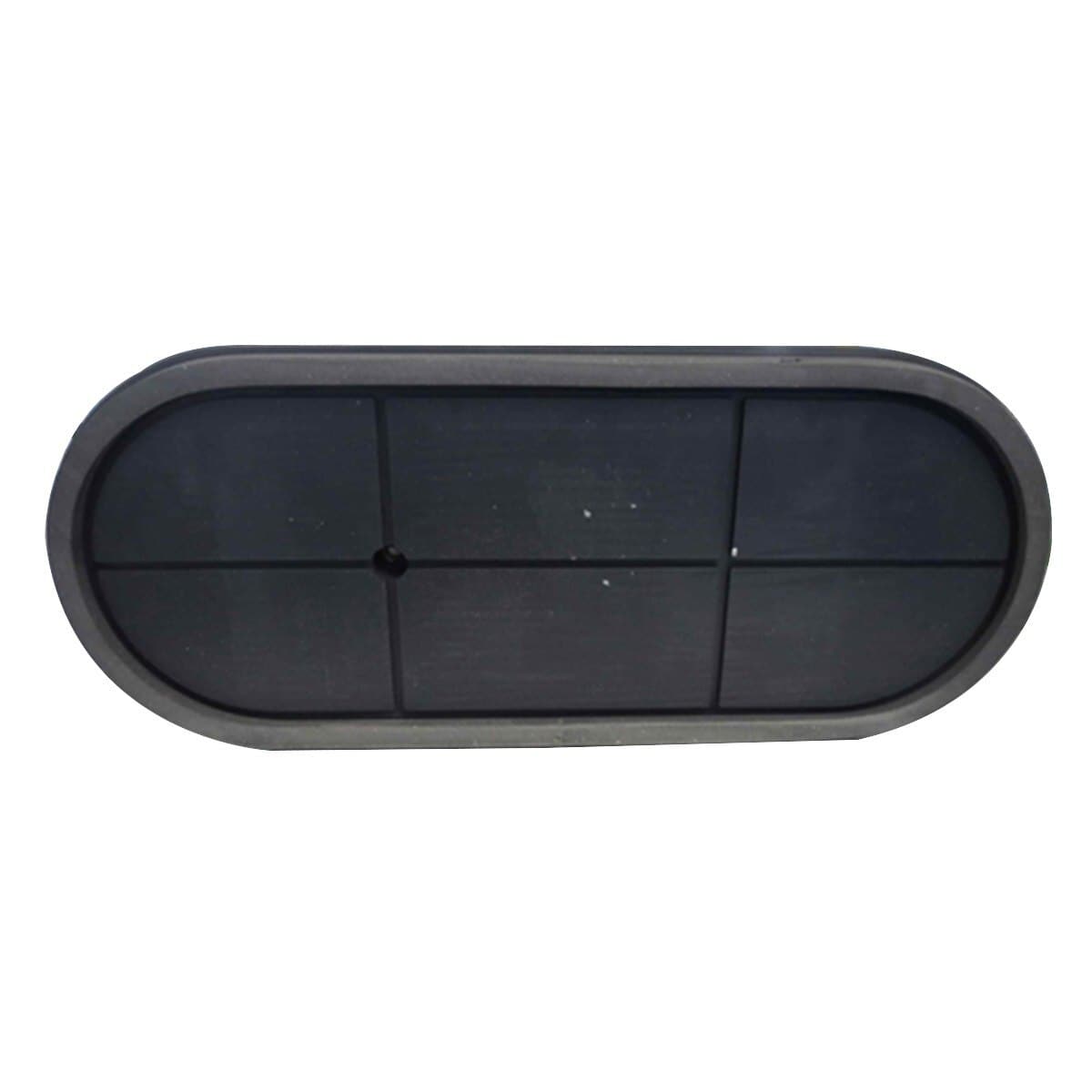

The Weha T600 Pneumatic Vacuum Lifter bottom is designed with the Weha New Generation UNIPAD Vacuum Suction Pad: Simple, extremely fast changing of the vacuum-rubber seals

Universally applicable for polished and for rough upper surfaces!

Maybe be used on granite, marble, all natural stones, engineered stone, glass, metal, etc

Lower servicing costs and maintenance charges since the rubber seals are easily replaceable. Increased safety over other lifters because the UNIPADS create a stronger, tighter vacuum seal.
All parts are easily replaced for years of use.

Comes with a 6 month warranty

---
