MRTALP Lifter Series

$13,596⁰⁰

Shipping calculated at checkout.

(1)

MRTLAP Lifter Series

600 lbs [270 kg] DC - PANEL MASTER 1100 lbs [500 kg] (DC)(Duel Vacuum) Ideal for Glass 1100 lbs [500 kg] (DC)(Duel Vacuum) Ideal for Textured Surfaces

Product variants

Safe & Secure Payments.

Please note: Wood's Powr-Grip products are made to order and have an expected lead time of 5-6 weeks. Please contact us at +1 (800) 342-3876 for additional information.

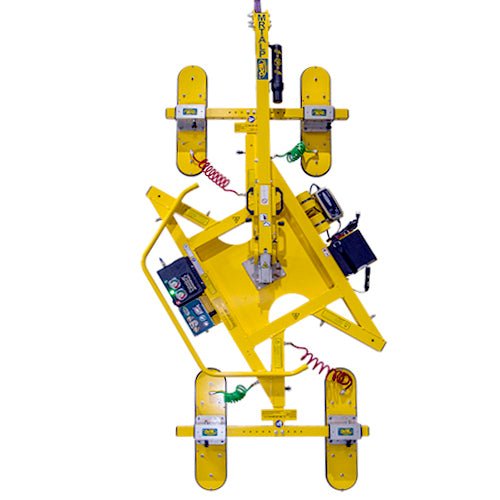

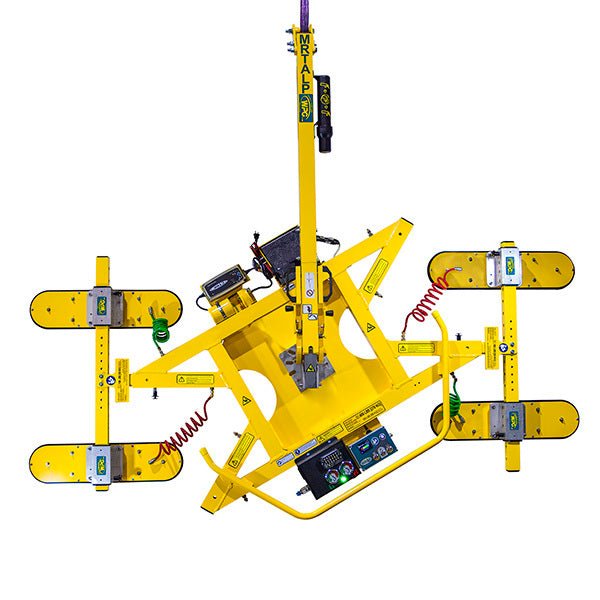

This lifter features a low profile, allowing it to operate in narrow spaces. T-Arm and extension options allow this lifter to also handle insulated metal panels.

Dual Vacuum models now available w/ Intelli-Grip® Technology, automatically monitoring vacuum and power systems to maximize safety and efficiency while simplifying maintenance and repairs.

Rotator/Tilter

98735

MRTALP811LDC3

Flat and smooth surfaces lifter w/ Intelli-Grip and Dual Vacuum System. Ideal for glass and other materials.

1100 lbs [500 kg]

98730

MRTALP810TDC3

Flat and textured surfaces lifter w/ Intelli-Grip and Dual Vacuum System. Ideal for textured surfaces in Construction/Installation settings.

1100 lbs [500 kg]

98741

MRTALP4625DC3

Panel Master:

Insulated Metal Panel lifter w/ Intelli-Grip and Dual Vacuum System.
Options allow for handling long roofing panels.

600 lbs [270 kg]

Specifications (MRTALP)

Standard Pad Spread:

Minimum Width: 17" [43 cm]
Maximum Width: 52-3/4" [134 cm]
Minimum Length: 44-1/2" [113 cm]
Maximum Length: 102" [259 cm]

Load Movement:

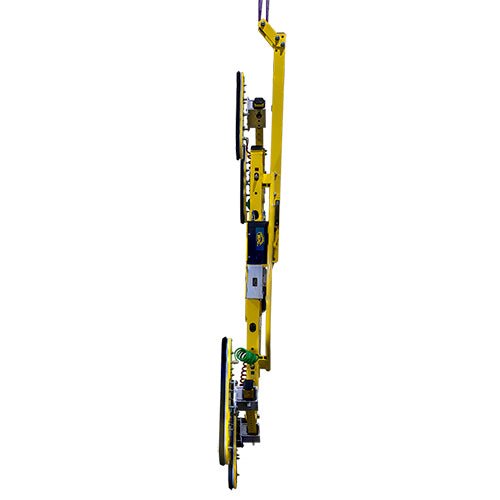

Manual rotation, 180° edgewise, with locking every 30° Assisted manual tilt, 90° between upright and flat, with automatic latching in upright position

More Features:

Intelli-Grip Technology / Dual Vacuum System / Adjustable-Position Lift Spool / High Capacity Battery and Charger / Battery Gauge / Notification Buzzer and Strobe Light / Green Lift Light / Vacuum Gauges / Vacuum Line Filters / Vacuum Reserve Tanks / Spring-Mounted Vacuum Pads / (Re)movable Pad Mounts / and More

Specifications (Panel Master)

Standard Pad Spread:

Maximum: 37" x 92-1/2" [94 cm x 235 cm]
Minimum: 20" x 92-1/2" [51 cm x 235 cm]

Load Movement:

Manual rotation, 180° edgewise, with locking every 30° Assisted manual tilt, 90° between upright and flat, with automatic latching in upright position
