Aardwolf Vacuum Glass Lifter 400kg

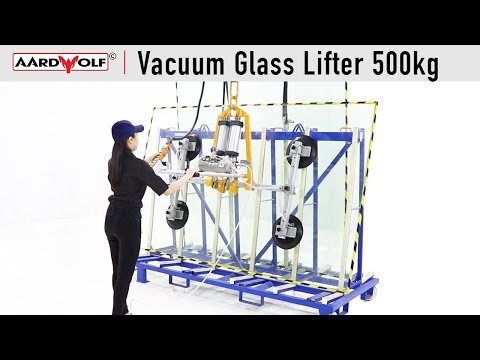

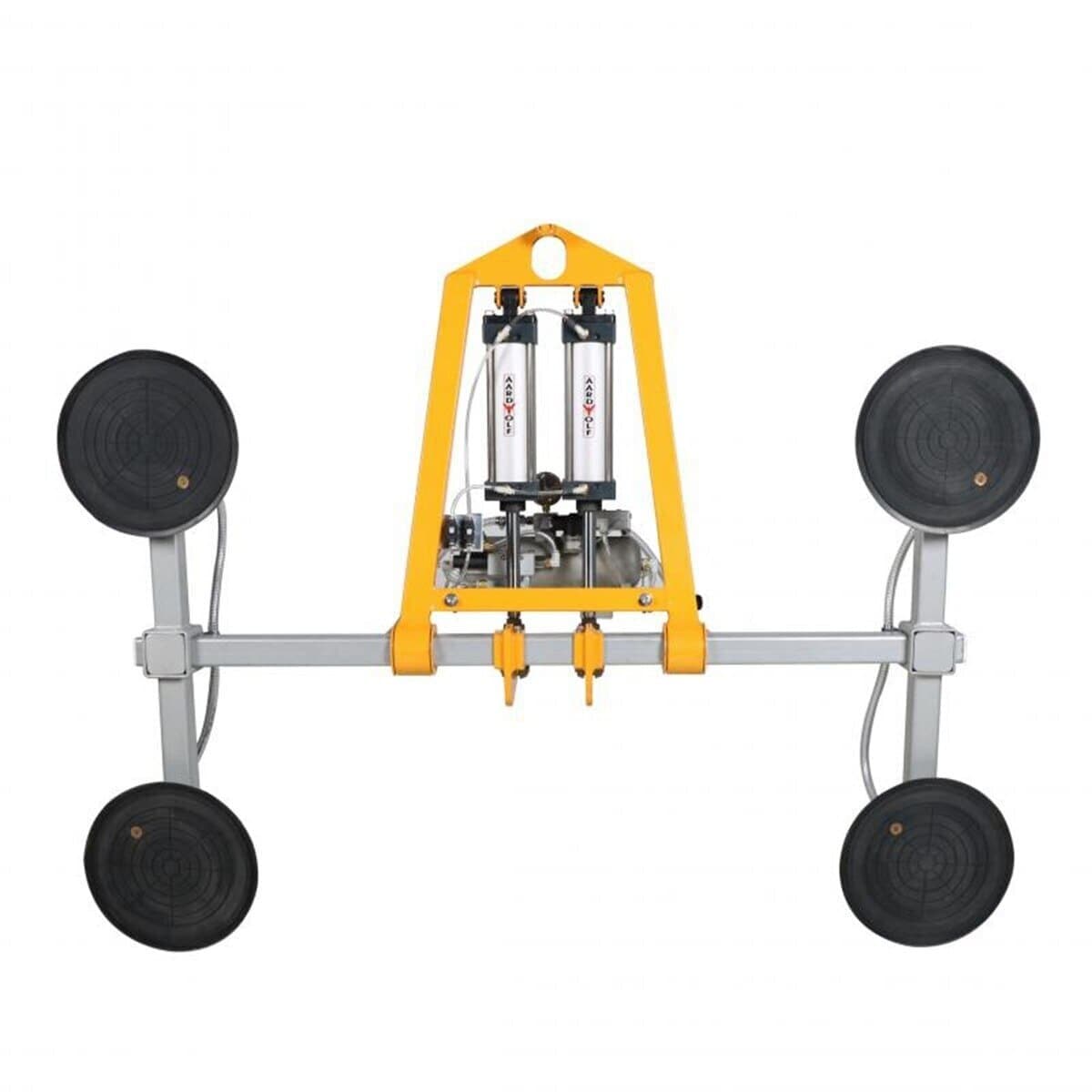

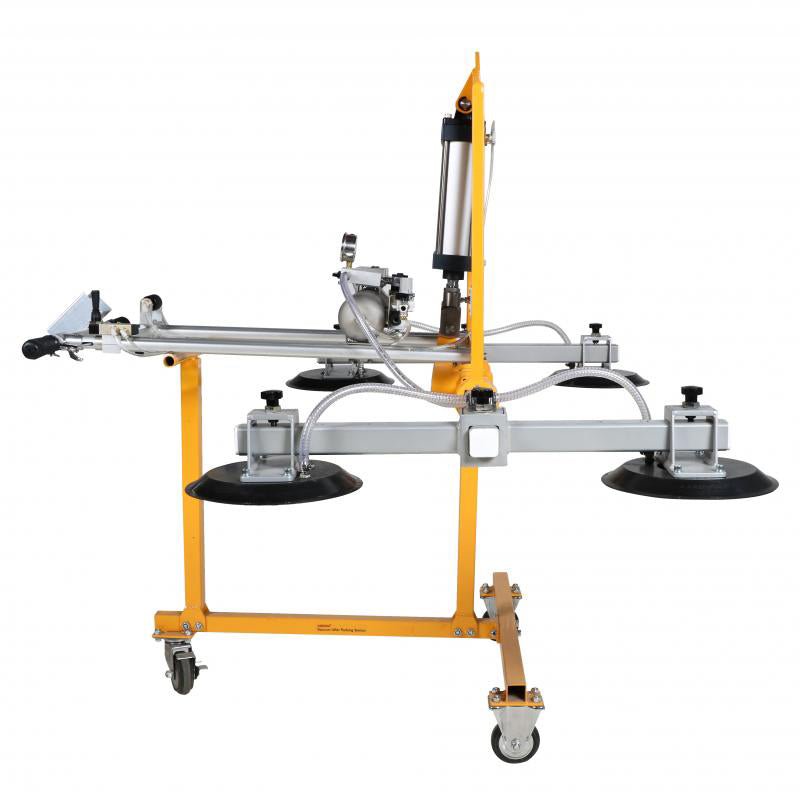

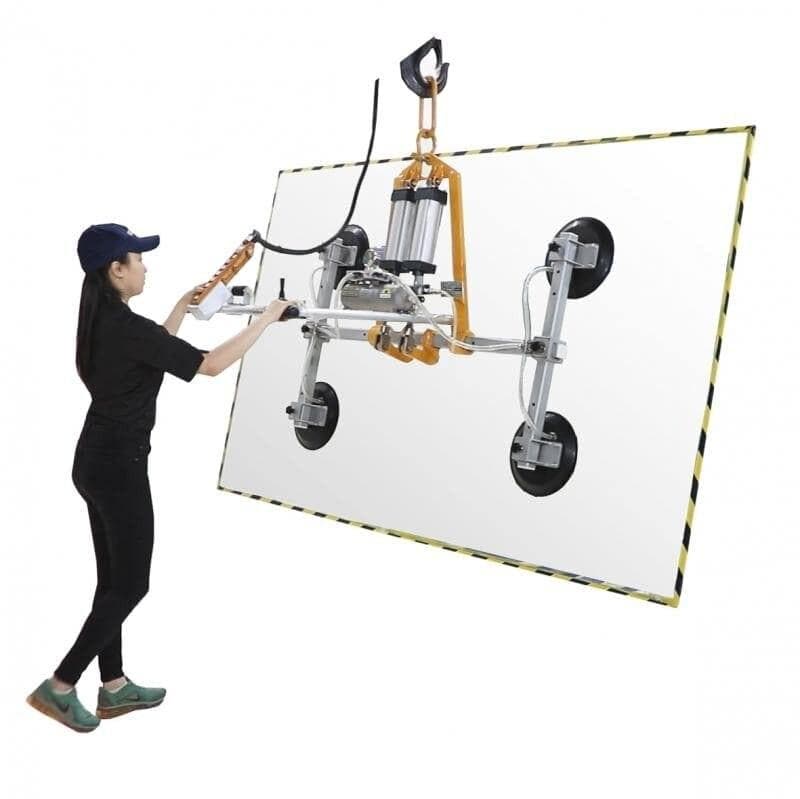

Vacuum Glass Lifter AVGLP4 is a 4 pad vacuum lifter used to move glass panels over 800 pounds!

Pneumatically powered, the Vacuum Glass Lifter AVGLP4 is able to lift glass panels, even panels with a rough surface with a weight of up to 400kg. It features a rugged construction with the added ability to lift and tilt the panel materials.

General

Pneumatically powered, the Vacuum Glass Lifter is able to lift glass panels, even panels with a rough surface with a weight of up to 400kg. It features a rugged construction with the added ability to lift and tilt the panel materials.

Features

• Pneumatic vertical-horizontal tilting from 0 to 90°.
• A stainless steel vacuum tank ensures safety in the event of an unexpected power outage.
• Automatic vacuum pumping if vacuum loss occurs.
• Acoustic and visual alarm system.
• Attach/release material with an ON/OFF slide valve.

Specifications

	Metric	Imperial
Number of pad	4	-
Pad diameter	Seal to seal: 280 mm	11"
Working load limit	Vertical: 200 kg Horizontal: 400 kg	441 lb 882 lb
Net weight	79 kg	174 lb
Packaging dimensions	L.1480xW.380xH.960 mm	58.2"x15"x37.8"

• Battery information for the alarm system

Power supply	3.7V Lipo battery
Battery capacity	2000 mAh x 1
Standby time	720 hours
Charging cycle	1000 times
Charging time	2 hours
Non-stop working time	7 hours
6-month warranty	-

• Compressed air requirement

Air consumption	180 liters/minute
Supply air pressure	5 bars (72 psi)
