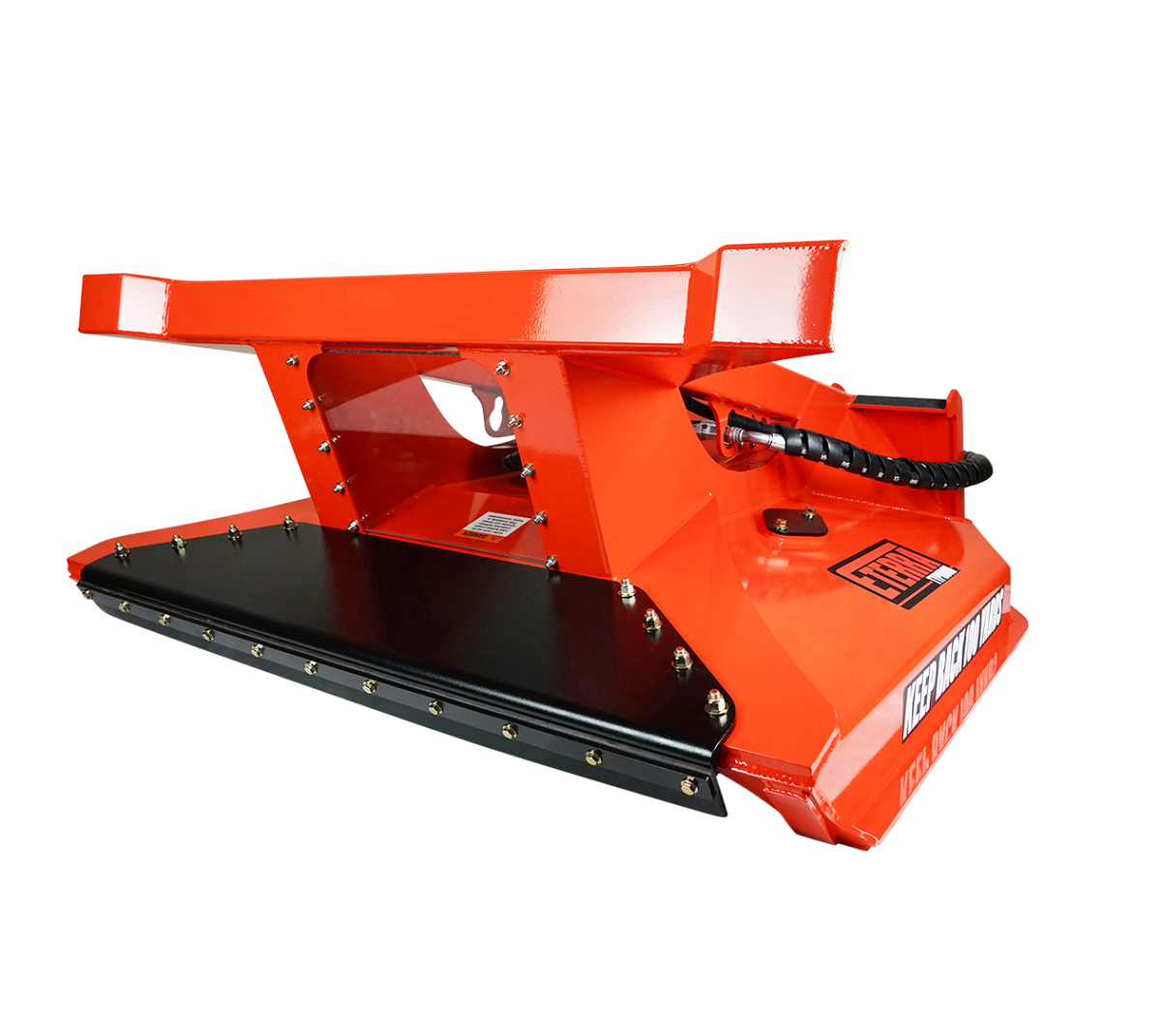

TYPHOON 60" SKID STEER CLEARING MOWER ATTACHMENT | Mower Attachment

LAND CLEARING FOR PROS

This Brush Cutter is available in Powder Coated Black

Typhoon Clearing Mowers employ raw strength and power to clear the way. Designed to make clearing trees, brush, and other vegetation easy, so you can be confident your land clearing jobs will get done right. The Typhoon takes down up to 12" trees without bogging down or showing wear, making it an Eterra family favorite.

GET TO KNOW THE TYPHOON

The Typhoon line of mowers feature direct spindle drive hubs and the option of either gear drive or radial piston motor. These provide power to the strong diamond shaped T1 grain-controlled steel blade carrier and two 12lb flail blades. The 1/2" Lexan Protective viewing shield provides excellent visibility for the operator.

UNDER THE HOOD

The Typhoon 60" Clearing Mower is powered by a USA made Permco gear drive or radial piston motor and a heat treated spindle drive hub. Machine flow of 18-40 GPM required. A removable blade cover allows for enclosed or open cutting.

DESIGNED FOR STRENGTH

Constructed of A572 Grade 50 high strength steel and a fully welded chassis. It uses 3"x4" tubing and 1/4" reinforced decking, all fully integrated and welded into the mounting plate. This robust design allows maximum transfer of force and lets the user to use the mower to push and power through tough jobs. AR500 Skid Shoes allow the user to mow right across the ground as well without fear of damaging the frame.

Features

Flow Requirements: 15-45 GPM

Cutting Capacity: 10"

Overall Width: 63.5"

Minimum Cut Height: 2"

Max Pressure: 3500 PSI

Cutting Tip Speed: 25,100 ft/min

Cut Width: 60"

Overall Height: 27.5"

Recommended Material: Hard Brush - Large Trees - Grass - Brambles

Design Specs

Weight: 1400 lbs.

Housing Material: A572 Grade 50

Housing Thickness: 1/4 SHROUD / 3/8" RENFORCED

Drive Shaft Size: 3 WITH 6" MAIN PILOT

Cutter Blade Style: 12 LB IN PLAIN BLADE X 2

Blade Bolt Size: 1.5 FORGED SQUARE SHANK BLADE BOLT

Blade Life Expectancy: 250 hrs., NO ROCKS

Drive Type: Direct Drive

Blade Material: Forged Steel Blades
