Eterra  |  SKU: ET-11M030-K001-63

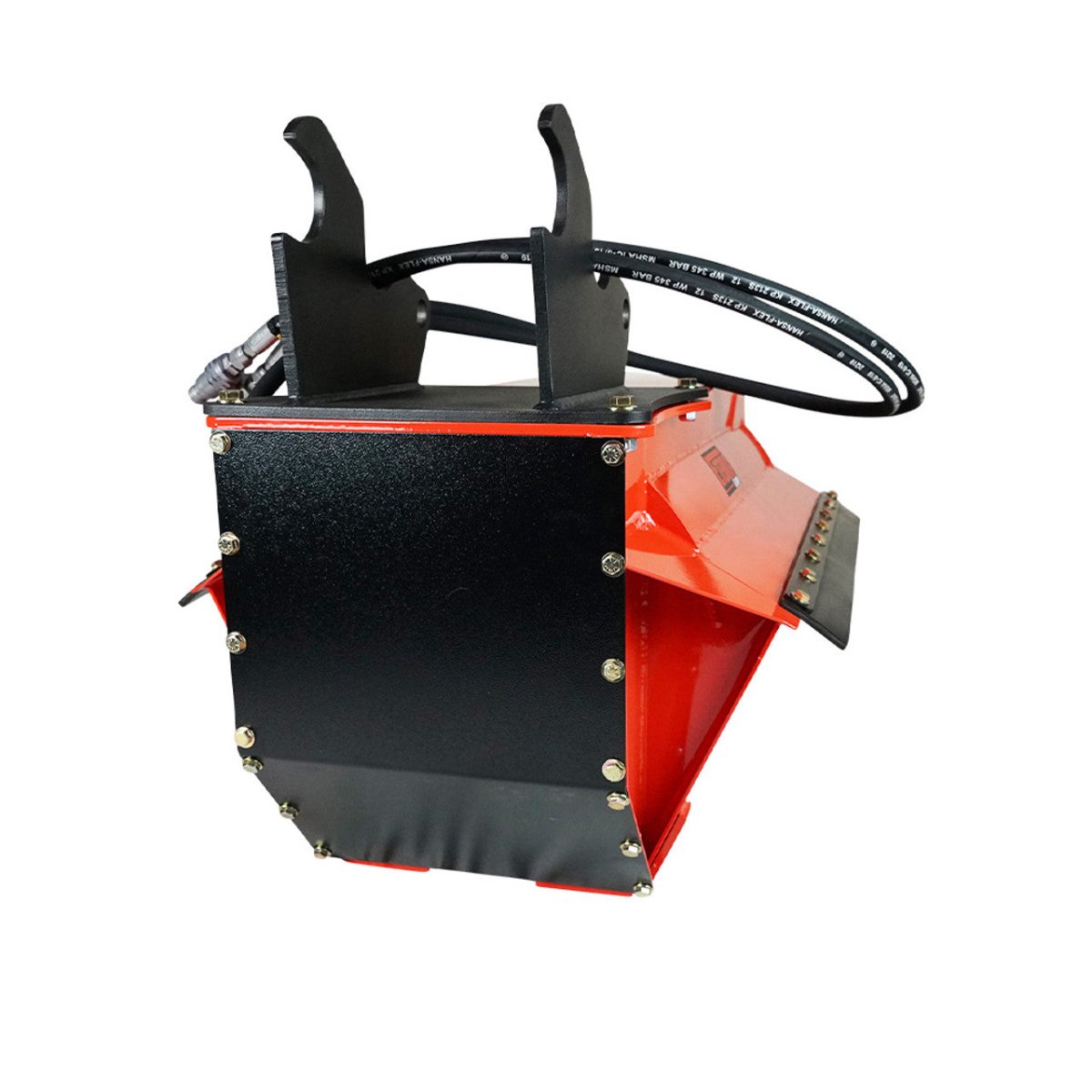

Ex-30M Mini Excavator Flail Mower Attachment

$8,45000
Shipping calculated at checkout.


Select an Excavator Coupler
Flow Rate

Safe & Secure Payments.

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

The Eterra EX-30 Micro Flail Mower is suitable for mini excavators ranging from 2200 lbs. to 7000 lbs., with flow rates of 8-26 GPM

The Flail Mower or Brush Cutter is offered in other sizes as well including the EX40, EX30, and the 36 Sidewinder.

The Eterra line of EX Flail Mowers are compatible with most models of excavator machines and provide a wider range of cutting options. This style of mower produces a clean, finished cutting area with smaller debris than a rotary mower - meaning less cleanup, and more time operating. The EX line is designed and manufactured in the USA, with a focus on accurate GPM pairing to get the most power your machine has to offer.

Download Spec Sheet

GET TO KNOW THE EX-30 MICRO

The EX-30 Micro features 16 1lb Y-Knife flail blades powered by a Permco gear drive motor. The precision electronically balanced blade carrier, rubber vibration dampener, and universal excavator coupler mounting pad make this flail mower ideal for a variety of mini excavator and backhoe loader applications

UNDER THE HOOD

The EX-30 Micro Flail Mower is powered by a USA made Permco gear drive motor, and an electronically balanced blade carrier provides smooth spin-up and efficient cutting down to just 1.5" off the ground. A universal excavator coupler allows it to be attached to many excavators.

DESIGNED FOR STRENGTH

Constructed of A572 Grade 50 high strength steel. Lightweight design for use on small excavators. Formed curved housing design allows for maximum cut capacity with minimal buildup of debris. AR500 skid shoes to protect the frame during ground mowing.

  • Safely cuts and mulches up to 4” material
  • 16 1lb. Replaceable Blades
  • Bolt on mount plate
  • A572 Grade 50 steel housing
  • Permco Hydraulic Gear Drive Motor
  • Electronically balanced cutter shaft
  • Safety Impact OSHA Safety Orange Powder Coat Finish
  • Wire proof wear cone Standard
  • Steel-4140 HT Drive Shaft Material
  • NO CASE DRAIN REQUIRED

Included

  • EX-30M Excavator Flail Mower
  • SMB-1000 blank mounting plate
  • Machine specific coupler (optional, added cost)
  • Hydraulic hoses
  • Flat faced couplers

Features

Flow Range: 8-26 GPM
Cutting Capacity: 4"
Overall Width: 43"
Max Pressure: 3500 PSI
Recommended Material: Medium Hard Brush - Grass - Brambles
Rotations Per Minute Range: 2000-2500 RPM

Design Specs

Weight: 346 lbs.
Housing Material: A572 Grade 50
Drive Shaft Material: Steel-4140 HT (Heat Treat)
Cutter Style: Y-Knife Blades, 1 lb
Drive Motor: Permco Hydraulic Gear Drive Motor
Cutter Blade Material: Case Hardened Spring Steel
Blade Weight: 1 lb
Number of Blades: 16
Deck Height: 20"
