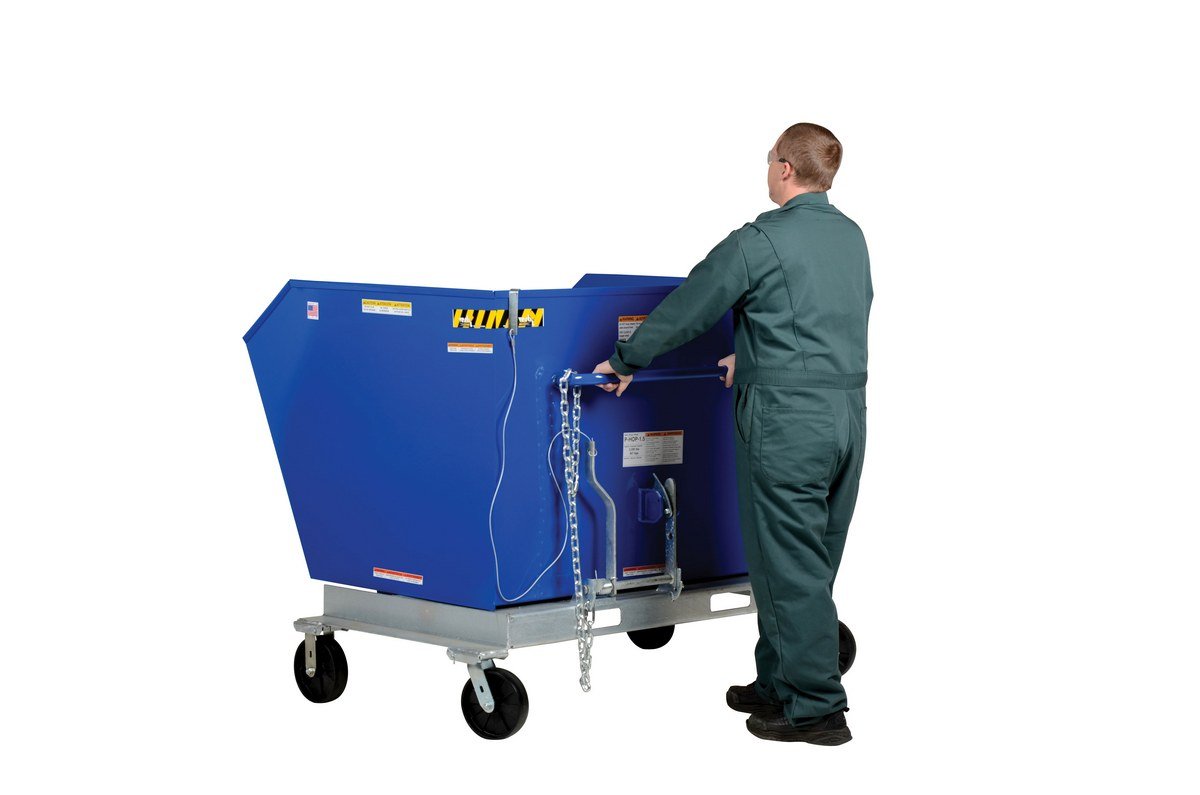

Portable Steel Hoppers, series P-HOP make handling waste and bulk material safer and more convenient.

Fork truck entry openings are designed to move hopper over rough terrain. Usable fork pockets are 7" x 2" on 21-5/8" centers (11-5/8" fork pocket center for 1/2 cubic yard capacity model only). Foot operated caster lock is included. A cable operated from the seat of the fork truck manually dumps the Hopper. Units must be attached to fork truck when dumping. Handle for transporting. Welded construction makes them durable. Blue baked-in powder-coated toughness with galvanized base. Optional model PLID-H heavy duty poly lids, model LEKP welded leak proof seams, model H-DPLG-75 3/4" drainage plug or H-DPLG-2 a 2" drainage plug, leak proof seams included with drainage plugs.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Portable Steel Hoppers

Model Image PDF's Size
(WxLxH)
Capacity
(lbs)
Gauge
of Steel
Volume Cubic Yards Wt.
(lbs)
P-HOP-0.5 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 34-13/16"x53-7/8"x37-3/16" 2,000 12 1/2 262
P-HOP-1 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 58-13/16"x53-5/8"x37-1/8" 2,000 12 1 389
P-HOP-1.5 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 58-13/16"x58-15/16"x47-5/8" 2,000 12 1-1/2 440

8"x2" Glass filled Nylon Casters: Two rigid, One swivel and One swivel with lock are standard

Portable Steel Hoppers Specialty Colors Available!

BLUE (standard)

BLACK

GRAY

ORANGE

RED

SILVER

WHITE

YELLOW
