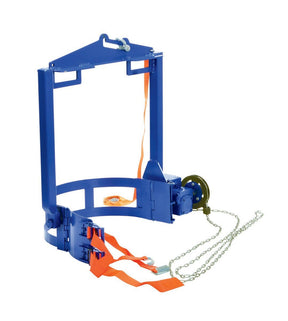

Hoist Mounted Drum Carrier/Rotators
SKU: DCT-75
Rotate and position a fully loaded 55 gallon steel drum with ease. Use with an overhead hoist or a fork truck.
Fork pockets measure 5-1/2"W x 1-15/16"H usable. Features a chain crank that allows the operator to rotate 360 degrees drums that are out of reach. Drums are held in place with a drum locking system. Meets OSHA 1910.179 requirements. Model DCT-2000 features gear box operation. Models ending with suffix "4WFP" have bolt on fork pockets for 4 way entry, usable 5"W x 1-9/16"H and 5-1/2"W x 1-15/16"H.
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
| Hoist Mounted Drum Carrier/Rotator | ||||||
| Model | Image | PDF's | Drum Style |
Capacity (lbs) |
Rotation Method |
Wt. (lbs) |
| DCT-75 |  |

|
55 gallon steel | 800 | 15' chain | 145 |
| DCT-85 |  |
|
55 gallon steel | 1,500 | 15' chain | 145 |
| DCT-2000 |  |
|
55 gallon steel | 2,000 | 15' chain | 169� |
| DCT-75-4WFP |  |
|
55 gallon steel | 800 | 15' chain | 159 |
| DCT-85-4WFP |  |
|
55 gallon steel | 1,500 | 15' chain | 159 |
|
Drum must be full to rotate at rated capacity |
||||||
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
