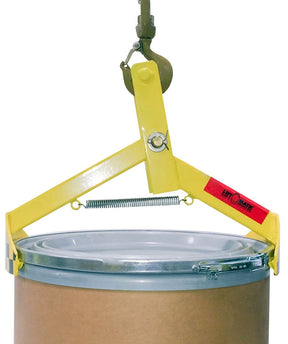

The Crane/Hoist Drum Lifter has an automatic mechanical operation. Great for positioning, drums in and out of overpacks.

Steel construction with spring loaded arms for safety. Accommodates steel, plastic or fiber drums. Overall dimensions are 16"W x 91/2"L x 211/2". Drums weighing over 500 lbs. must have top lid secured before lifting.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Crane/Hoist Drum Lifters
Model Image PDF Accommodates
Drum Diameter
Capacity
(lbs)
Wt.
(lbs)
CHDL-1620 Warranty PDF 16" TO 20" 1,000 21
CHDL-2025 Warranty PDF 20" TO 25" 1,000 21

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate
