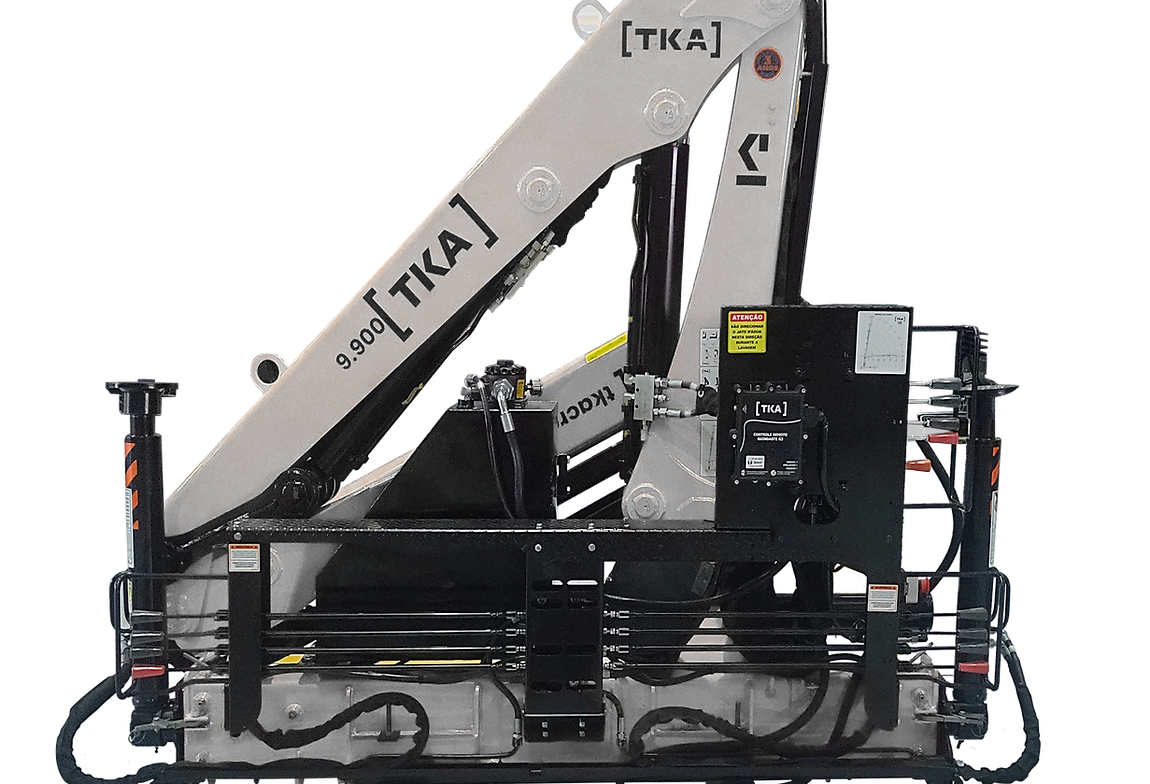

TKA Cranes 9.900C Knuckle Boom

SKU# TKA 9.900 C 2H0M
$28,79121
Shipping calculated at checkout.


Options

Safe & Secure Payments.

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Finance this product with NewLane Logo

Apply Now

Finance this product with PEAC Solutions Logo

Apply Now

Unsure which financing plan suits you? Discover your options here.


This compact yet powerful crane offers an impressive vertical reach of up to 44 feet and a horizontal reach of 35 feet, making it ideal for a variety of lifting applications.

Built for precision and performance, it features high operating pressure, excellent slewing capacity, and a stable footprint with front stabilizers.

Available Accessories:

  • Gear Pump
  • Oil Radiator
  • Manual Pump (for basket safety use)
  • Front Hydraulic Outrigger Extension
  • Emergency Stop for Cranes Without Remote Control
  • Electrical Load Limiter + Inclinometer + Load Limiter Light Indicator + Load Sound Indication (for cranes with remote control)
  • Hydraulic Load Limiter
  • Remote Control with 6 Levers (4 + 2 extras) + Emergency Stop
  • Scanreco Remote Control with 6 Levers + Emergency Stop
  • Mining Kit (Remote Control, Emergency Stop, Load Limiter, Truck Inclinometer, Blocked Work Over Truck Cabin)
  • Remote Control Stabilizer Drive Kit for Cranes with Mining Kit
  • Truck Inclinometer for Cranes Without Remote Control
  • Winch with 1 Ton Capacity with Upper and Lower Pulleys
  • Winch with 1.5 Ton Capacity with Upper and Lower Pulleys
  • Fixed Rear Stabilizers (8.5 ft)
Specification Metric Imperial
Max. manual vertical reach 13.6 m 44 ft 7 in
Max. manual horizontal reach 10.7 m 35 ft 1 in
Max. hydraulic vertical reach 13.6 m 44 ft 7 in
Max. hydraulic horizontal reach 10.7 m 35 ft 1 in
Front stabilizer spread 4.4 m* 14 ft 5 in*
Boom elevation angle 82° 82°
Max. operating pressure 275 bar 3,988 psi
Slewing torque 0.96 tf·m 6,942 lb. ft
Slewing angle 400° 400°
Dead weight (Base machine - 2H0M / 3H0M) 1,190 kg / 1,260 kg 2,624 lb. / 2,778 lb.
Dead weight (Base machine - 4H0M) 1,320 kg 2,910 lb.
Fitting space required (transport) 0.9 m 2 ft 11 in
Oil tank capacity 70 l 18.5 gal
Min. gross vehicle weight (GVW) 7,000 kg** 15,432 lb.**
