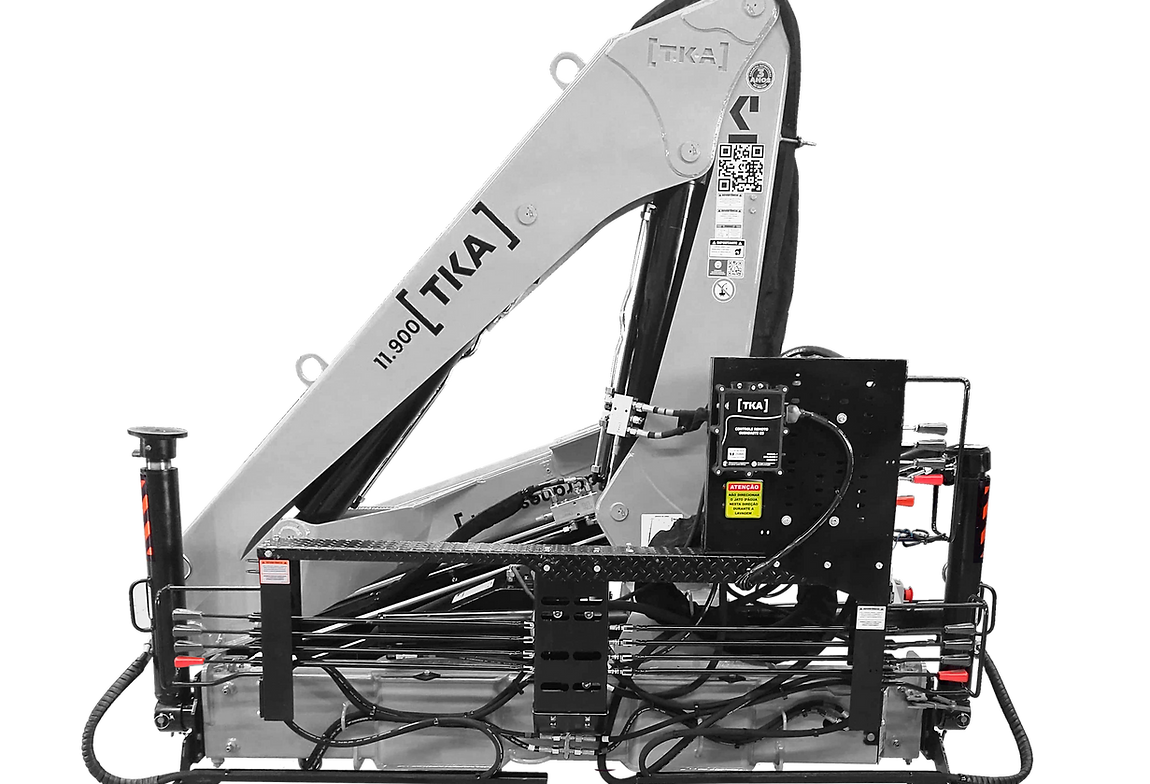

TKA Cranes 11.900 C 3 Hydraulic Knuckle Boom
SKU# TKA 11.900 C 3H0M
$37,38096
Unit price
/
Make a Selection
Shipping calculated at checkout.
Couldn't load pickup availability
Safe & Secure Payments.
Finance this product with
Finance this product with
Unsure which financing plan suits you? Discover your options here.

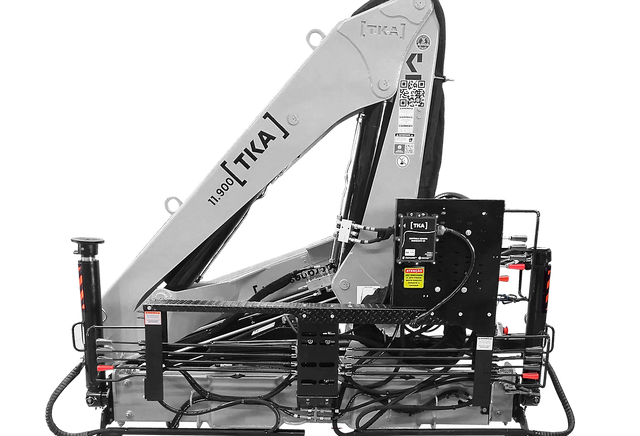

TKA Cranes 11.900 C 3 Hydraulic Knuckle Boom
$37,38096
Unit price
/
Make a Selection
This compact yet powerful crane offers an impressive 56 ft 9 in manual vertical reach and is designed for precision, stability, and ease of operation in demanding work environments.
Available Accessories:
- Gear Pump
- Oil Radiator
- Manual Pump (for basket safety use)
- Front Hydraulic Outrigger Extension
- Emergency Stop for Cranes Without Remote Control
- Electrical Load Limiter + Inclinometer + Load Limiter Light Indicator + Load Sound Indication (for cranes with remote control)
- Hydraulic Load Limiter
- Remote Control with 6 Levers (4 + 2 extras) + Emergency Stop
- Scanreco Remote Control with 6 Levers + Emergency Stop
- Mining Kit (Remote Control, Emergency Stop, Load Limiter, Truck Inclinometer, Blocked Work Over Truck Cabin)
- Remote Control Stabilizer Drive Kit for Cranes with Mining Kit
- Truck Inclinometer for Cranes Without Remote Control
- Winch with 1 Ton Capacity with Upper and Lower Pulleys
- Winch with 1.5 Ton Capacity with Upper and Lower Pulleys
- Fixed Rear Stabilizers (8.5 ft)
| Specification | Metric | Imperial |
|---|---|---|
| Max. manual vertical reach | 17.3 m | 56 ft 9 in |
| Max. manual horizontal reach | 14.2 m | 46 ft 7 in |
| Max. hydraulic vertical reach | 1.15 m | 3 ft 9 in |
| Max. hydraulic horizontal reach | 12.0 m | 39 ft 4 in |
| Front stabilizer spread | 4.6 m* | 15 ft 1 in* |
| Boom elevation angle | 82° | 82° |
| Max. operating pressure | 275 bar | 3,988 psi |
| Slewing torque | 1.57 tf·m | 11,361 lb. |
| Slewing angle | 400° | 400° |
| Dead weight (Base machine - 2H0M / 3H0M) | 1,370 kg / 1,450 kg | 3,020 lb. / 3,197 lb. |
| Dead weight (Base machine - H0M / H1M 4 4) | 1,520 kg / 1,560 kg | 3,351 lb. / 3,439 lb. |
| Fitting space required (operation) | Not specified | Not specified |
| Fitting space required (transport) | 1.0 m | 3 ft 3 in |
| Oil tank capacity | 70 l | 18.5 gal |
| Min. gross vehicle weight (GVW) | 11,000 kg** | 24,251 lb.** |
