Fully powered shop cranes (power hoist & power in/out boom) for moving loads quickly, easily, and safely.

24V DC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered shop crane has two 12V, 80 - 95/Ah lead acid deep cycle batteries, integral battery charger, and battery level gauge. Poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Includes rigid hook with safety latch.

  • Model EPFC-25 features adjustable length legs.
  • Model EPFC-25-AA features adjustable length legs and adjustable width legs.
  • Model EPFC-16-LP features low profile design to maneuver in narrow and crowded warehouses. Boom is fixed and hook lowering and raising is powered.
  • Model EPFC-CB-15 features fixed legs and counter balance design.

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

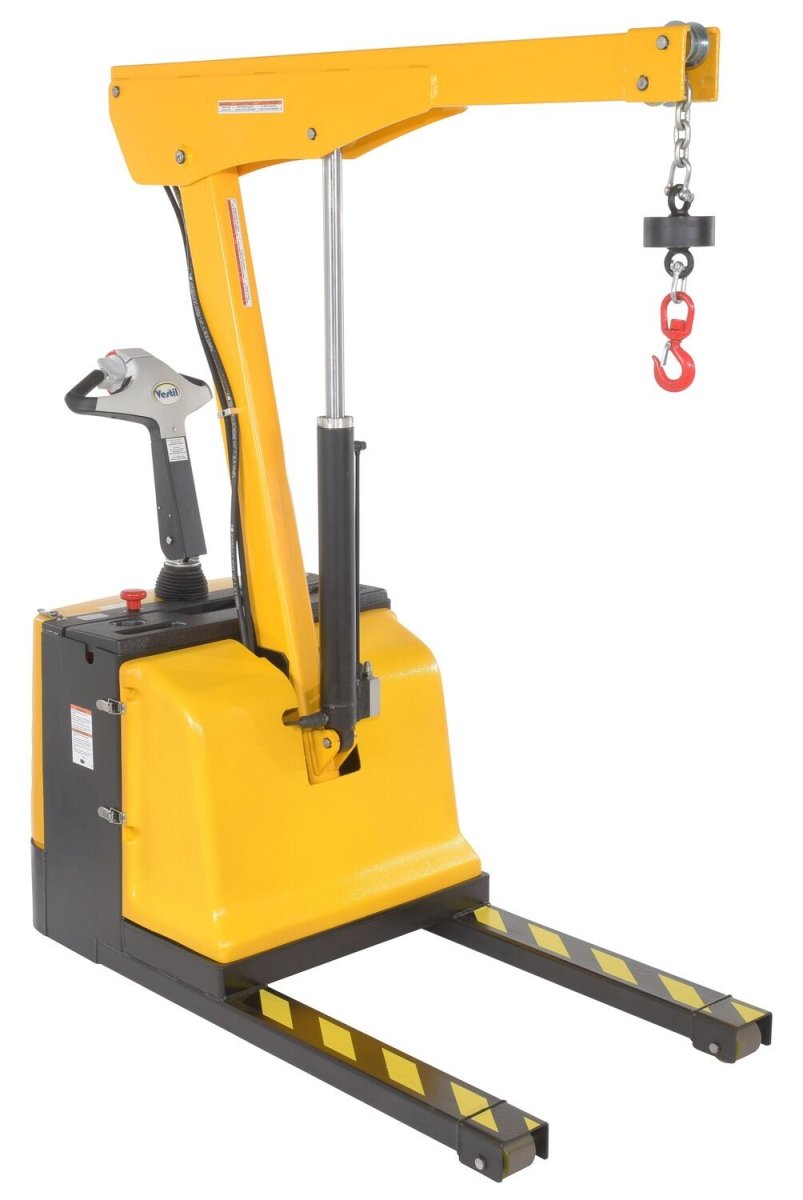

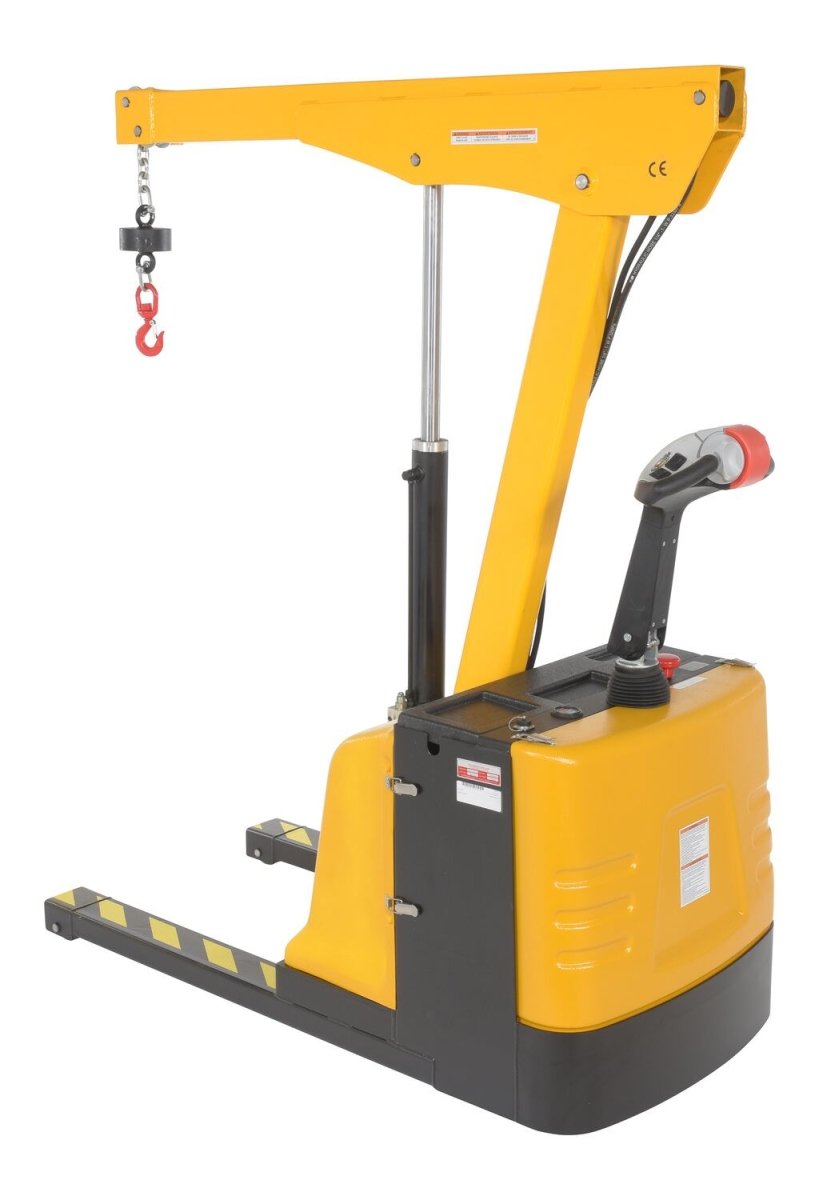

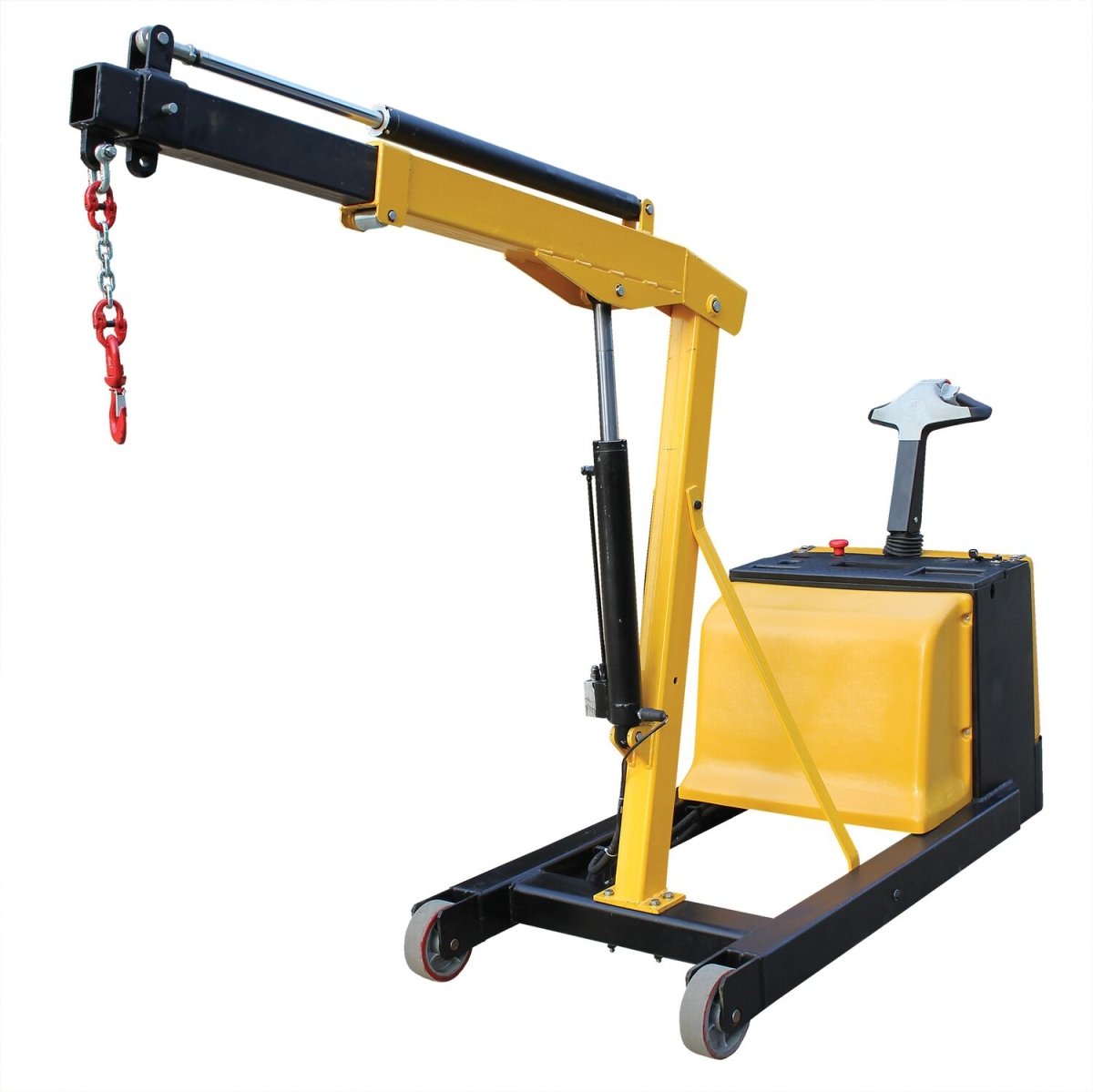

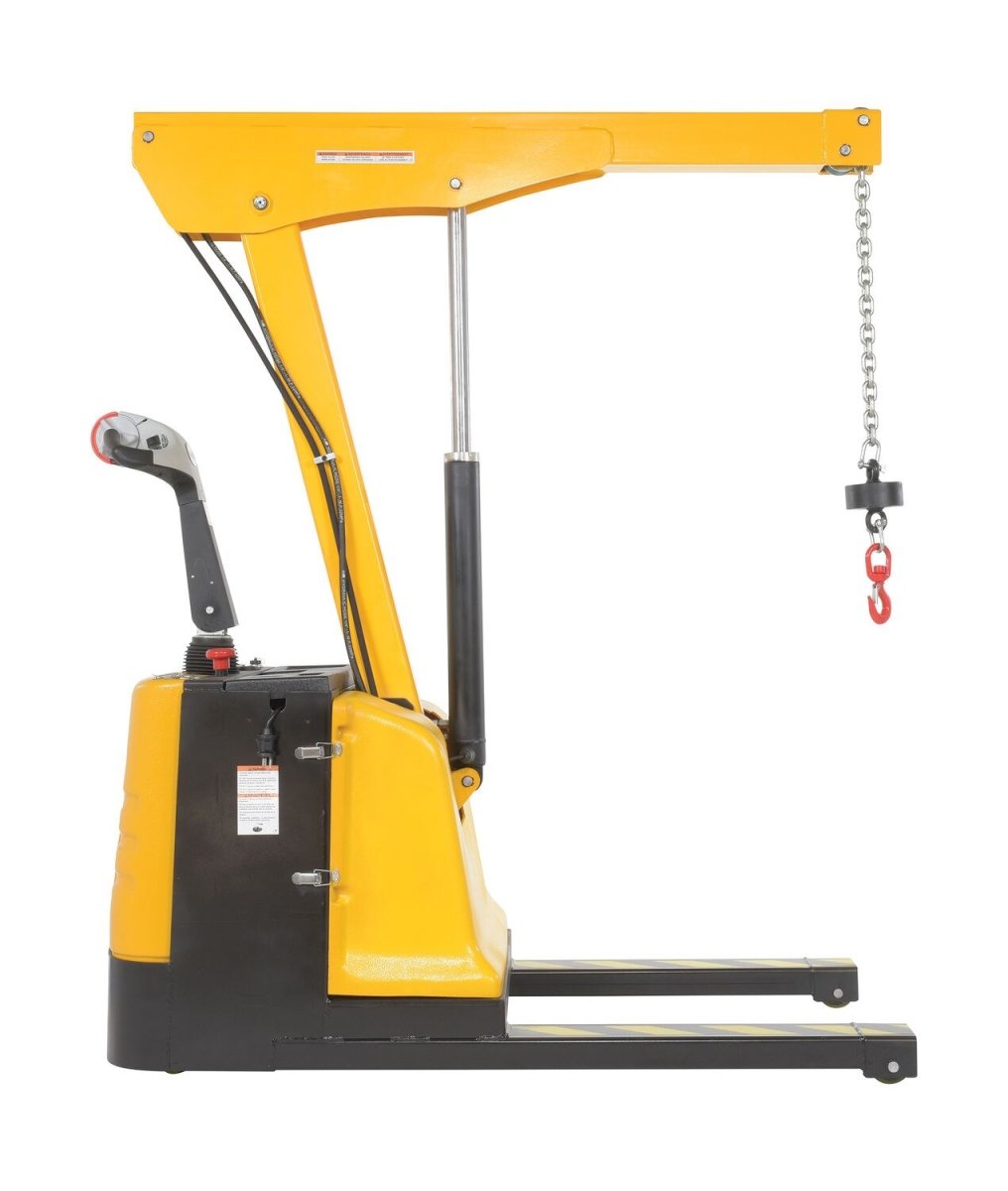

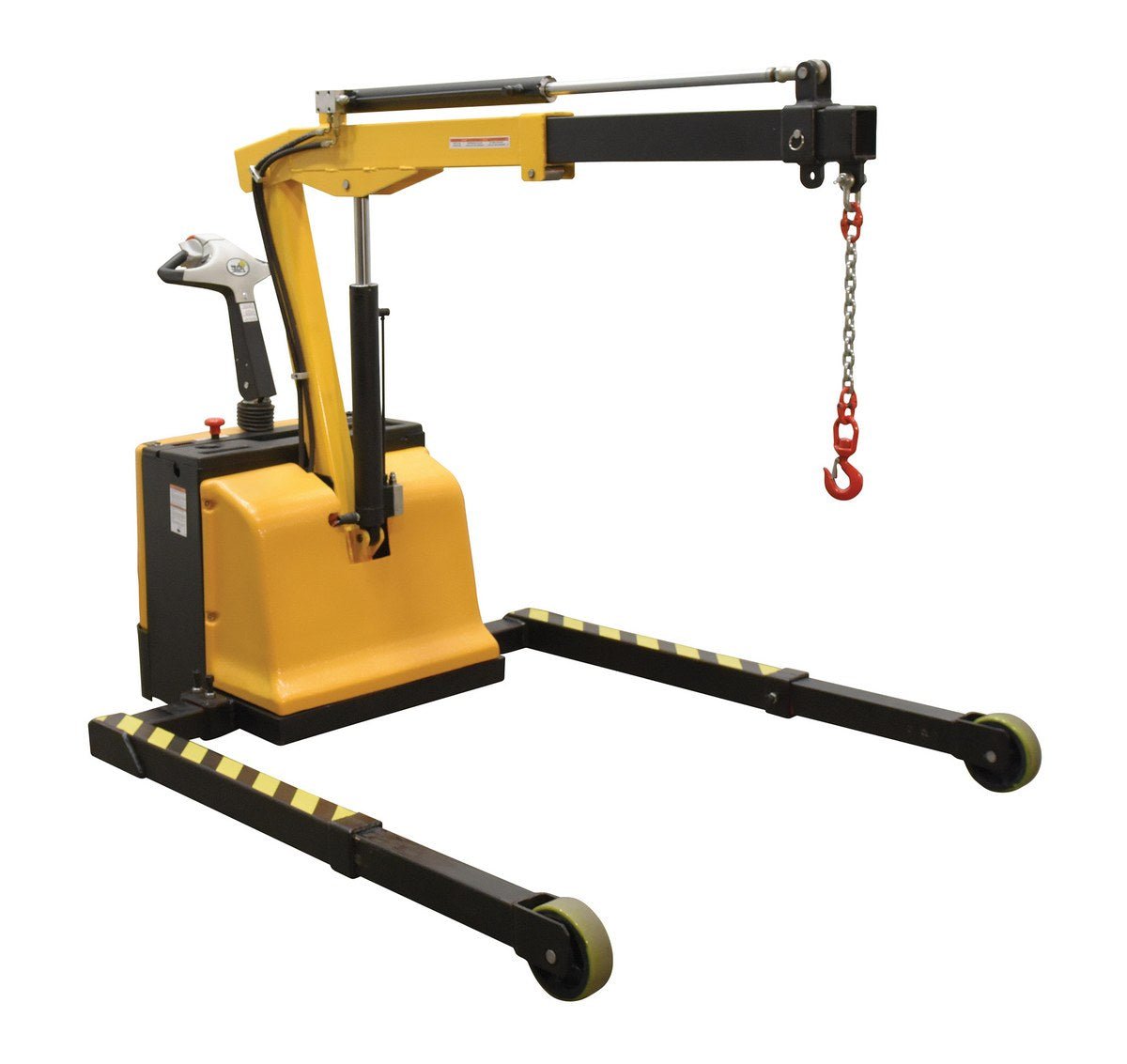

Electric Powered Floor Crane
Model Image Capacity
(Retracted)
(lbs)
Capacity
(Extended)
(lbs)
Lift Range Retracted/
Extended
Max Height Crane Extended Max Length Legs Extended Retracted
Size
(WxLxH)
Wt.
(lbs)
EPFC-25 2,500 600 44-1/4"-94" 110 103-1/8" 30"x80"x63" 925
EPFC-25-AA 2,500 600 44-1/4"-97" 110 103-1/8" 43-3/4"x79-1/8"x67" 1,040
EPFC-CB-15 1,500 400 44-1/4"-97" 105 -- 33-7/8" x 107-1/2" x 66-3/8" 1,982

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate
