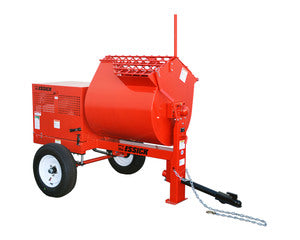

EM12M Essick Steel-Drum Plaster/Mortar Mixer
SKU: EM12M
EM12M Essick Steel-Drum Plaster/Mortar Mixer
Used by the professional mason for over 90 years. The ultimate in heavy-duty plaster/mortar mixers. Essick has delivered mixers with your engine, horsepower and drive-system preference.
- Thick 3/16-inch (4.76 mm) steel drum wrap
- 12-cubic foot (340 liters) plaster/mortar mixer
- Reliable 11.7 hp Honda engine
- Reduced maintenance, longer life as gears and clutch are fully immersed in oil
- Maintenance-free shaft seal system no greasing required
| Drive System | Mech. Gearbox | |
| Drum Capacity |
12 cu. ft 339.8 L 3 1/2 - 4 bags |
|
| Dump Type | Manual | |
| Discharge Height | 17 in | 430 mm |
| Drum Type | Steel | |
| Drum Thickness | 9 gauge | |
| Engine Cover Thickness | 12 gauge | |
| Tire Size | B78x13 | |
| Frame Type | Rectangular | |
| Paint Type | Powder coat | |
| Power Source | Honda GX390UT Special | |
| Notes:Heavy Duty Safety Chains included. All mixers available with loop couper, 2" ball coupler, or pin-type coupler. | ||
| Overall Length | 105 in | 2667 mm |
| Overall Width | 56 in | 1422 mm |
| Overall Height | 60 in | 1520 mm |
|
Overall Height w/Dump Handle |
75 in | 1910 mm |
| Operating Weight | 1040 lb | 471.7 kg |
| Engine Make/Model | Honda GX390UT | |
| Start Method | Recoil | |
| Engine Power | 11.7 HP | 8.72 kW |
| Engine RPM | 3600 | |
| Fuel Type | Gasoline | |
Notice: Features and equipment specifications are subject to change without notice.
