Chicago Pneumatic 60 lb. Pneumatic Breakers

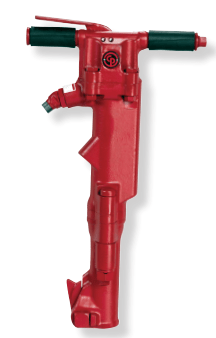

CP 1260 Pneumatic Breaker

The CP 1260 (60-pound class) demolition tools are engineered to deliver the power and durability necessary for a variety of construction and plant maintenance applications such as breaking heavy and reinforced concrete, frozen ground, asphalt, boulders and pavement. • Alloy steel forgings provide excellent durability

• Four-bolt backhead design withstands rugged use

• Integral oiler provides continuous lubrication

• Durable polyurethane front headsprings reduce reaction back to operator

• Reversible piston reduces maintenance cost

• Air inlet swivel for easy maneuverability

• CP 1260 S and CP 1290 S are equipped with silencers

• Vibration reduced handle (SVR) available on the CP 1260 SVR and CP 1290 SVR

Chicago Pneumatic 60 lb. Pneumatic Breakers Specifications
Model	CP 1260	CP 1260S	CP 1260SVR	CP 1260*	CP 1260S*	CP 1260SVR*
Hex Chuck Size (in.)	1-1/8 x 6	1-1/8 x 6	1-1/8 x 6	1-1/4 x 6	1-1/4 x 6	1-1/4 x 6
Retainer Type	Latch	Latch	Latch	Latch	Latch	Latch
Air Inlet	3/4 NPT	3/4 NPT	3/4 NPT	3/4 NPT	3/4 NPT	3/4 NPT
Length	27 in	27 in	29 in	27 in	27 in	29 in
Weight	68 lb	64 lb	75 lb	68 lb	64 lb	75 lb
Air Consumption	34.5 l/s	34.5 l/s	34.5 l/s	34.5 l/s	34.5 l/s	34.5 l/s
Blows per minute	1300	1300	1300	1300	1300	1300
Part No.	8900003029	8900003031	8900003033	8900003028	8900003030	89000030
