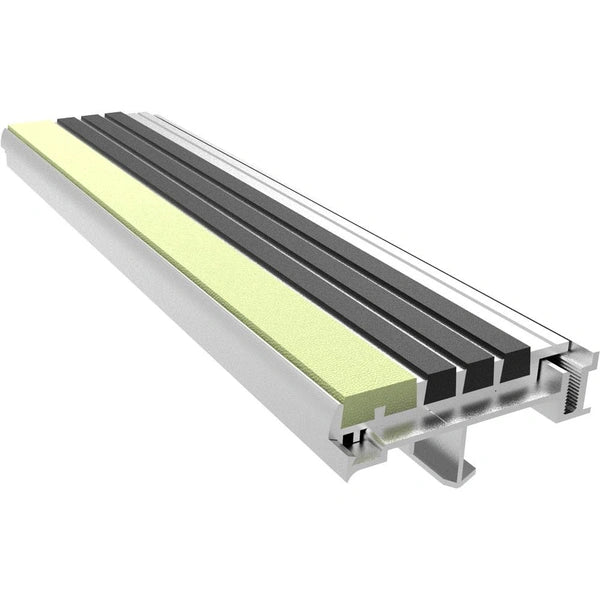

Lume-A-Lite Two-Part Abrasive Nosing
SKU: BSTTM
The Lume-A-Lite Two-Part Abrasive Stair Treads and Nosings are designed for quick and easy damage replacement.
The 1 inch wide front channel provides a continuous channel of photoluminescent abrasive grit that will glow-in-the-dark when activated.
Features
- Anti-Slip Safety
- Continuous Color
- Optional Vision Line
- Title 24 Compliant*
*Title 24 Compliant/Vision Impairment requires 2 inches of a contrasting color at the edge of the stair indicating a change of plane.
Specifications
| Model | BSTTM |
| Material | Extruded Aluminum, Abrasive Grit, and 53 mil Resin Insert or 16 mil Abrasive Grit Insert |
| Color | Photoluminescent Strip and Optional Tread Colors |
| Application | Poured Concrete, Steel Pan or Terrazzo |
| Tread | Ribbed Bar Abrasive |
| Width | 3-3/8 inch |
| Mounting | Extruded Anchor |
| Nosing | Short-Tipped |
| Compliance | California Title 24, Section 3306 |
| Abrasive Colors | Black, Yellow, Photoluminescent, Gray, Brown, Burgundy, Green, Blue, Red or Buff (Orange) |
| Options | Mitered Cuts, Painted Undersides and Taped Tops |
| Warranty | 1 Year |
Order Guide
Use the table below to guide specification of available options. The part number components are indicated in BOLD ORANGE text.
| MODEL | WIDTH | TREAD | INSTALL | INSERT |
|---|---|---|---|---|
| BSTTM-P3.375E | 3-3/8" | Short Tipped | Extruded Anchor | Photoluminescent Resin Strip |
| BSTTM-P3.375E-T | 3-3/8" | Short Tipped | Extruded Anchor | Photoluminescent Abrasive Grit Strip |
Photoluminescent Insert Colors
 |
 |
| Photoluminescent Resin Strip |
Photoluminescent Abrasive Grit Strip |
Abrasive Colors
 |
 |
 |
 |
 |
 |
 |
| Black | Gray | Brown | Burgundy | Green | Blue | Red |
 |
 |
 |
||||
| Buff (Orange) | Yellow | Photoluminescent |
Nosing Options
 |
||||||
| Short-Tipped |
Mounting Options
 |
||||||
| Extruded Anchor |
Options
 |
 |
 |
||||
| Mitered Cuts | Painted Undersides | Taped Tops |
