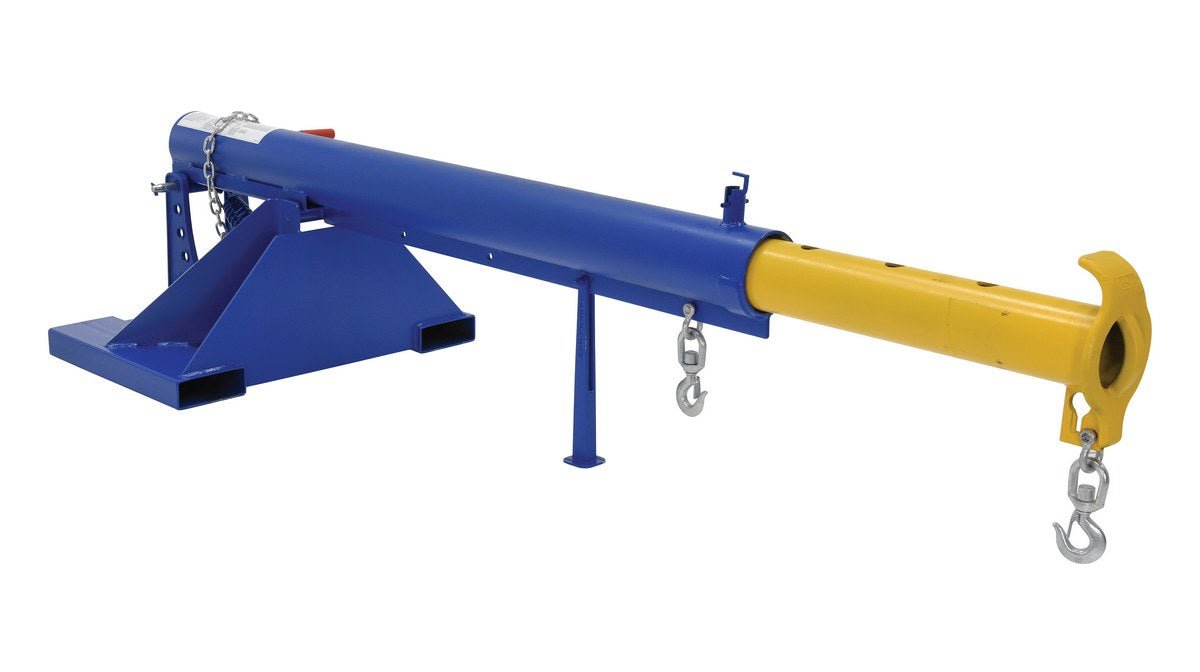

Orbiting Booms

Unique performance, convenience, and safety features are built into every lift master boom.

Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. A safety restraint secures the boom to the fork truck for safe operation. Includes two (2) lifting hooks.

Fork Mounted Lift Master Booms
Model Number	PDF's	Description	Fork Pocket Center	Overall Extended Length	Height	Uniform Capacity (lbs)	Wt. (lbs)
Telescoping Style
LM-OBT-3-24		Orbit Boom	24"	146-5/8"	27-11/16"	3,000	432
LM-OBT-4-30		Orbit Boom	30"	146-5/8"	27-11/16"	4,000	467
LM-OBT-4-36		Orbit Boom	36"	146-5/8"	27-11/16"	4,000	497
LM-OBT-4-24		Orbit Boom	24"	146-5/8"	27-11/16"	4,000	463
LM-F15-4-24		Fixed 15 Degrees	24"	147"	33"	4,000	376
LM-OBT-6-30		Orbit Boom	30"	146-5/8"	27-11/16"	6,000	498
LM-OBT-6-36		Orbit Boom	36"	146-5/8"	27-11/16"	6,000	514
LM-OBT-6-24		Orbit Boom	24"	146-5/8"	27-11/16"	6,000	476
LM-OBT-8-24		Orbit Boom	24"	148-1/2"	28-7/8"	8,000	622
LM-OBT-8-30		Orbit Boom	30"	148-1/2"	28-7/8"	8,000	755
LM-OBT-8-36		Orbit Boom	36"	148-1/2"	28-7/8"	8,000	754
Non-Telescoping Style
Model	PDF's	Description	Fork Pocket Center	Overall Extended Length	Height	Uniform Capacity (lbs)	Wt. (lbs)
LM-OBNT-4-24		Orbit Boom	24"	80-7/8"	26-5/8"	4,000	337
LM-OBNT-4-30		Orbit Boom	30"	80-7/8"	26-5/8"	4,000	458
LM-OBNT-4-36		Orbit Boom	36"	80-7/8"	26-5/8"	4,000	466
LM-OBNT-6-24		Orbit Boom	24"	80-7/8"	26-5/8"	6,000	391
LM-OBNT-6-30		Orbit Boom	30"	80-7/8"	26-5/8"	6,000	635
LM-OBNT-6-36		Orbit Boom	36"	80-7/8"	26-5/8"	6,000	677
LM-OBNT-8-24		Orbit Boom	24"	79-1/2"	25-1/8"	8,000	792
LM-OBNT-8-30		Orbit Boom	30"	79-1/2"	25-1/8"	8,000	804
LM-OBNT-8-36		Orbit Boom	36"	79-1/2"	25-1/8"	8,000	814

KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
