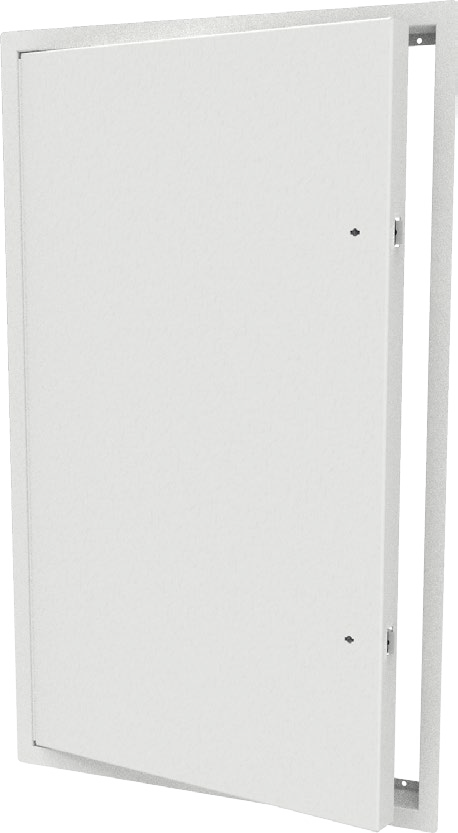

Draft Stop Access Door
SKU: BDTK-1212
Access doors are customized and are final sale
The Babcock-Davis Draft Stop Door is a non-rated access door designed to provide access through draft stop spaces in the attic while preventing a back draft from one section of the attic to another.
This self-closing and self-latching access door allows for access from both sides of the door.
Features:- Wall Installation
- Self-Closing
- Custom Sizing
| Model | BDT/BDW/BDP |
|---|---|
| Door | 14 gauge Steel (self-closing) |
| Frame | 16 gauge Steel |
| Size (in.) | Min: 6" by 6" |
| Max BDT: 24" by 72", 36" by 60" or 48" by 48" | |
| Max BDW / BDP: 36" by 48" | |
| Installation | Wall |
| Flange | 1 inch Exposed or Drywall Bead |
| Hinge | BDT: Flush Continuous Piano |
| BDW/BDP: Concealed Pin | |
| Finish | White Powder Coat |
| Warranty | 1 year |
| Options | Flanges, Latches, Materials, Gaskets, Anchors |
| Base | Flange | Latch | Width x Length (in.) | Options | |
|---|---|---|---|---|---|
| BD | |||||
| T - 1 inch Flange | K - Knurled Knob / Key Operated Latch Bolt | Standard Sizes (in.) | B - Galvannealed | ||
| W - Drywall Bead | M - Mortise Lock Prep (1-1/8") | 22" x 36" | 30" x 30" | G - Gasketing | |
| P - Plaster Bead | 24" x 36" | 30" x 36" | S - Stainless Steel, Type 304 | ||
| 24" x 48" | 36" x 36" | ||||
| 24" x 60" | 36" x 48" | ||||
