Mi-T-M | SKU: ADS-23110-120H

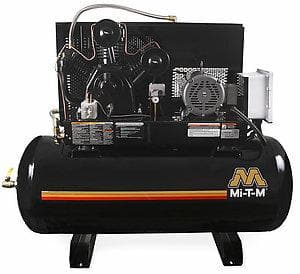

120 Gallon Two Stage Electric Duplex Air Compressor - ADS-23110-120H

Name: 120 Gallon Two Stage Electric Duplex Air Compressor - ADS-23110-120H
Brand: Mi-T-M
SKU: ADS-23110-120H
Price: 8983.69 USD
Availability: InStock

$8,983⁶⁹ ~~$12,040⁰⁰~~

Shipping calculated at checkout.

Safe & Secure Payments.

The horizontal 120-gallon air compressors can be installed in service shops where compressed air is a required utility. Powerful and efficient, they are designed to maximize production

Compressor Pump:Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor:Industrial low RPM motor · Magnetic start for thermal overload protection

Frame:Powder coated ASME coded 120-gallon receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard

Components:ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Tank shut-off valve · Intake filter/silencer

Other Models Available:
ADS-20310-120H200V, 30.8A, 3 Phase
ADS-23310-120H230V, 26.8A, 3 Phase
ADS-46310-120H460V, 13.4A, 3 Phase

Specifications

CFM @ 175

34.2
Horsepower/Motor

10.0 HP, 230V, 1Ø, 39.0A
Pump RPM

990
Compressor

Two Stage, Cast Iron
Tank Size

120 gallon
Bolt Down (LxW)

34.5 x 23.5 in.

Weights & Dimensions

Net Weight

785.00 lbs.
Shipping Weight

904.00 lbs.
Length

74.00 in.
Width

26.50 in.
Height

58.00 in.

Options

IX-0001 Vibration Isolator Pads

Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
IX-0003 After Cooler

Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient
IX-0006 Electric Tank Drain

Automatically drains liquid from compressor tank
IX-0032 Pneumatic Tank Drain

Automatically drains liquid from compressor tank
IX-0036 Low Oil Monitor

Low oil sensor does not allow unit to start when oil levels fall below an adequate level
