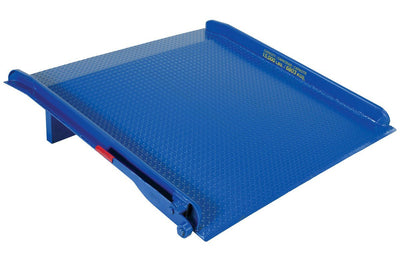

Steel Truck Dockboards
SKU: TS-10-6030
Steel Truck Dockboards are constructed of high strength (55,000 psi) steel for long life.
Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by fork trucks when not in use. Legs are located 12" from the edge of the dockboard. The bend is 11 degrees and 9" from beveled edge. Standard with Lever Lift for quick portability with fork truck. Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks, span pins/holes, and removable pickup loops.
- Manufactured from high-strength steel tread plate for maximum durability
- Heavy-duty steel curbs are welded in place for maximum strength
- Includes patented lever lift for easy fork truck positioning
- Smooth transition provided by beveled entrance and exit
KEY:
= Approval Drawing --
= Warranty --
= Testing Certificate
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
| Uniform Capacity | 10,000 Lbs. | 15,000 Lbs. | 20,000 Lbs. | ||||||||
| Size (Inches) Width x Length |
Ht. Diff. 11 Degrees/19% Inches |
Model | PDF's | Wt. (lbs) |
Model | PDF's | Wt. (lbs) |
Model | PDF's | Wt. (lbs) |
|
| 60 | 36 | 5 | TS-10-6036 |
|
256 | TS-15-6036 |
|
284 | TS-20-6036 |
|
303 |
| 60 | 48 | 7 | TS-10-6048 |
|
388 | TS-15-6048 |
|
390 | TS-20-6048 |
|
433 |
| 60 | 60 | 10 | TS-10-6060 |
|
447 | TS-15-6060 |
|
458 | TS-20-6060 | ----- | 582 |
| 60 | 72 | 12 | TS-10-6072 |
|
535 | TS-15-6072 |
|
601 | TS-20-6072 | ----- | 791 |
| 66 | 36 | 5 | TS-10-6636 | --- | 318 | TS-15-6636 | --- | 353 | TS-20-6636 | --- | 359 |
| 66 | 48 | 7 | TS-10-6648 |
|
424 | TS-15-6648 | ---- | 461 | TS-20-6648 | ----- | 421 |
| 66 | 72 | 12 | TS-10-6672 | --- | 647 | TS-15-6672 | --- | 686 | TS-20-6672 | ---- | 768 |
| 72 | 36 | 5 | TS-10-7236 |
|
300 | TS-15-7236 |
|
347 | TS-20-7236 |
|
390 |
| 72 | 48 | 7 | TS-10-7248 |
|
386 | TS-15-7248 |
|
443 | TS-20-7248 |
|
512 |
| 72 | 54 | 8-1/2 | TS-10-7254 | ----- | 556 | TS-15-7254 |
|
505 | TS-20-7254 |
|
641 |
| 72 | 60 | 10 | TS-10-7260 | ----- | 563 | TS-15-7260 |
|
581 | TS-20-7260 |
|
647 |
| 72 | 72 | 12 | TS-10-7272 | ----- | 721 | TS-15-7272 |
|
668 | TS-20-7272 |
|
919 |
| 84 | 36 | 5 | TS-10-8436 | --- | 346 | TS-15-8436 |
|
393 | TS-20-8436 | ----- | 449 |
| 84 | 48 | 7 | TS-10-8448 | ----- | 567 | TS-15-8448 | ----- | 507 | TS-20-8448 |
|
548 |
| 84 | 60 | 10 | TS-10-8460 |
|
671 | TS-15-8460 |
|
648 | TS-20-8460 |
|
730 |
| Uniform Capacity | 25,000 Lbs. | 30,000 Lbs. | |||||||||
| Size (Inches) Width x Length |
Ht. Diff. 11 Degrees/19% Inches |
Model | PDF's | Wt. (lbs) |
Model | PDF's | Wt. (lbs) |
||||
| 60 | 36 | 5 | TS-25-6036 | - | 447 | TS-30-6036 | - | 467 | |||
| 60 | 48 | 7 | TS-25-6048 | - | 562 | TS-30-6048 | - | 485 | |||
| 60 | 60 | 10 | TS-25-6060 | - | 695 | TS-30-6060 | - | 738 | |||
| 60 | 72 | 12 | TS-25-6072 | - | 791 | TS-30-6072 | - | 952 | |||
| 72 | 36 | 5 | TS-25-7236 | - | 437 | TS-30-7236 | - | 507 | |||
| 72 | 42 | 6 | TS-25-7242 | ----- | 517 | TS-30-7242 |
|
614 | |||
| 72 | 48 | 7 | TS-25-7248 | ----- | 547 | TS-30-7248 |
|
688 | |||
| 72 | 54 | 8.5 | TS-25-7254 | ---- | 628 | TS-30-7254 | ---- | 750 | |||
| 72 | 60 | 10 | TS-25-7260 |
|
807 | TS-30-7260 |
|
833 | |||
| 72 | 72 | 12 | TS-25-7272 |
|
859 | TS-30-7272 |
|
1111 | |||
| 84 | 36 | 5 | TS-25-8436 | --- | 563 | TS-30-8436 | ---- | 681 | |||
| 84 | 48 | 7 | TS-25-8448 | --- | 741 | TS-30-8448 | ---- | 858 | |||
| 84 | 60 | 10 | TS-25-8460 | ----- | 878 | TS-30-8460 |
|
1007 | |||
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
