Name: Cyclone 48" Rotary Brush Mower Attachment
Brand: Eterra
SKU: ET-18C048-K001-63
Price: 8850.0 USD
Availability: InStock

A MOWER FOR TOUGH JOBS

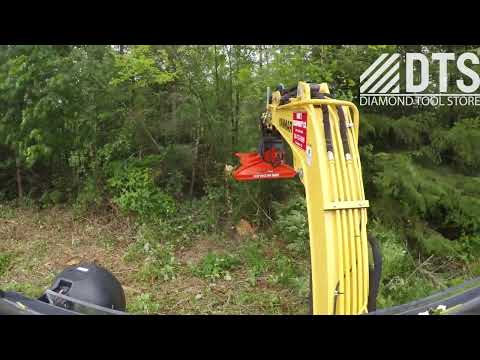

Built for skid steers and excavators, Cyclone Rotary Mowers deliver the toughness and reliability you've come to expect from Eterra.

These powerful mowers are designed and built to provide operators the ability to clear trees, brush, and other heavy vegetation with ease. A heavy duty two-blade carrier system ensures maximum tip speed and minimal energy loss, making this attachment ready to conquer any task even in extreme conditions.

GET TO KNOW THE CYCLONE

Cyclone Rotary Mowers feature direct spindle drive hubs and the option of either a gear drive or radial piston motor. The lightweight design includes a strong T1 grain-controlled steel diamond shaped blade carrier and two heavy 9 lb. flail blades. Removable debris shields are included.

UNDER THE HOOD

The Cyclone 48" Rotary Mower is powered by a USA-made Permco gear drive motor or a radial piston motor and a spindle drive hub, achieving cutter shaft rotation speed of 1300-1600 RPMs. The diamond shaped blade carrier decreases bog down and two 9 lb. blades provide cutting capacity up to 6". Hydraulic flow requirement of 12-45 GPM @ 3000 PSI.

DESIGNED FOR STRENGTH

The construction design utilizes fewer pieces of A572 Grade 50 high strength steel, formed and welded together to a form that is impressively stout and looks beautiful, yet is lightweight enough to be used on a wide range of machines. AR500 Skid Shoes protect the frame as it glides over the ground.

Features

Flow Requirements: 12-45 GPM

Cutting Capacity: 6"; Features: Cut Width=48""

Overall Width: 54"; Features: Overall Height=21""

Minimum Cut Height: 2"

Cutting Tip Speed: 18,000 ft/min

Max Pressure: 3500 - 5000 psi

Optimal Operating RPM: 1300-1600

Mechanical Depth: 52 5/8"

Recommended Material: Hard Brush - Medium Trees - Grass - Brambles

Design Specs

Weight

685 lbs.

Housing Material: A572 Grade 50 Steel

Housing Thickness: 1/4 SHROUD / 3/8" RENFORCED"

Cutter Blade Style: 9LB IN PLAIN BLADE X 2

Cutter Blade Material: Case Hardened Spring Steel

Blade Bolt Size: 1 FORGED SQUARE SHANK BLADE BOLT"

Drive Type: Direct Drive

Blade Life Expectancy: 250 hrs., NO ROCKS

Drive Shaft Material: Steel-4140 HT (Heat Treat)

Drive Shaft Size: 3 WITH 6" MAIN PILOT"
