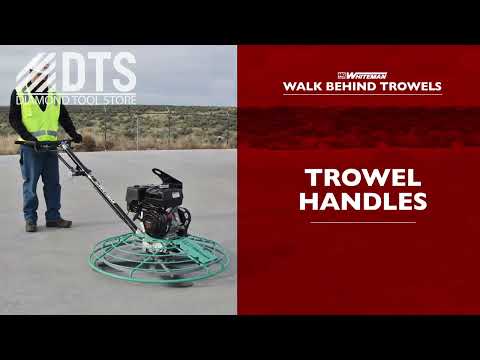

Whiteman B46H11H Standard Walk-Behind Trowel

4-blade, 46", Honda GX340, 10.7HP, Min 90-155 Max RPM blade speed
Shown with optional QXH QuickPitch handle

· 46-inch (1170mm) guard ring diameter

· Rotor speed of (90-155 RPM) for high speed finishing applications; optional low speed panning kit available (60-130 RPM)

· Trowel covered by 1-year limited warranty

· Front access panel provides quick access to trowel arms and blades

· Center mount lifting bale included

· Spider and thrust collar assembly design simplifies routine maintenance

· Gearbox features top quality components & large oil capacity for years of trouble-free performance

· Optimally balanced for smooth finishing

· Handles available with either QuickPitch or Standard (knob type) pitch control

Unit Specifications
Clutch Type Centrifugal
No. of Blades 4
Ring Diameter 46 in 1168.4 mm
Rotor Speed 90-155 RPM
Handle Options SXH
QXH
Dimensions & Weights
Overall Length 75 in 1910 mm
Overall Width 46 in 1170 mm
Overall Height 41 in 1044 mm
Operating Weight 277 lb 125.6 kg
Shipping Weight 285 lb 129.2 kg
Engine Specifications
Engine Make/Model Honda GX-340
Start Method Recoil
Engine Power 10.7 HP 8.0 kW
Engine RPM 3600
Fuel Type Gasoline
Notice: Features and equipment specifications are subject to change without notice.
