Three Phase Dust Extractor For Big Floor Grinders
Product Description:

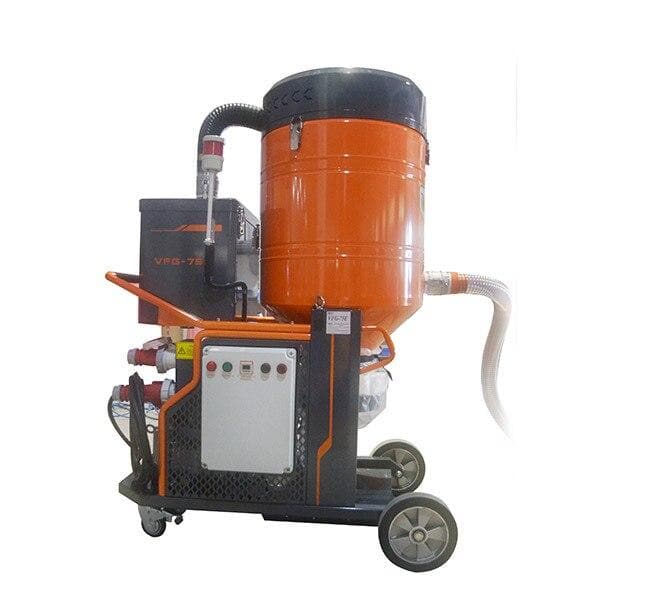

VFG-55E/75E Vacuum cleaner is special designed for matching with big grinders in the floor preparation industry. With the characteristic as below:
• Strong suction, two-stage filter unit, stable and reliable. Can match grinders @15kw power;
• Suitable for the work site that requires three phases and requires 24hours continuous working area with large amount dust;
• To be applied to grinding, polishing and other floor preparations.
Model: VFG-55E VFG-75E
Voltage (V/Hz): Three phase 380V/50Hz Three phase 380V/50Hz
Power: 10hp/7.5kw 10hp/7.5kw
Max Air flow: 530m3/h 700m3/h
Max pressure: 3000mmH2O 2700mmH2O
1st stage filter: star shaped filter bag star shaped filter bag
2nd stage filter: HEPA filter cartridge HEPA filter cartridge
Air inlet: Ø75MM (3inches) Ø75MM (3inches)
Noisy (dB): 72±2 74±2
Filter area: 2.1+3.4m2 2.1+3.4m2
Cleaning method: manual cleaning (half-automatically pulse jetting)
Dimension: 1120x735x1600mm 1120x735x1600mm
